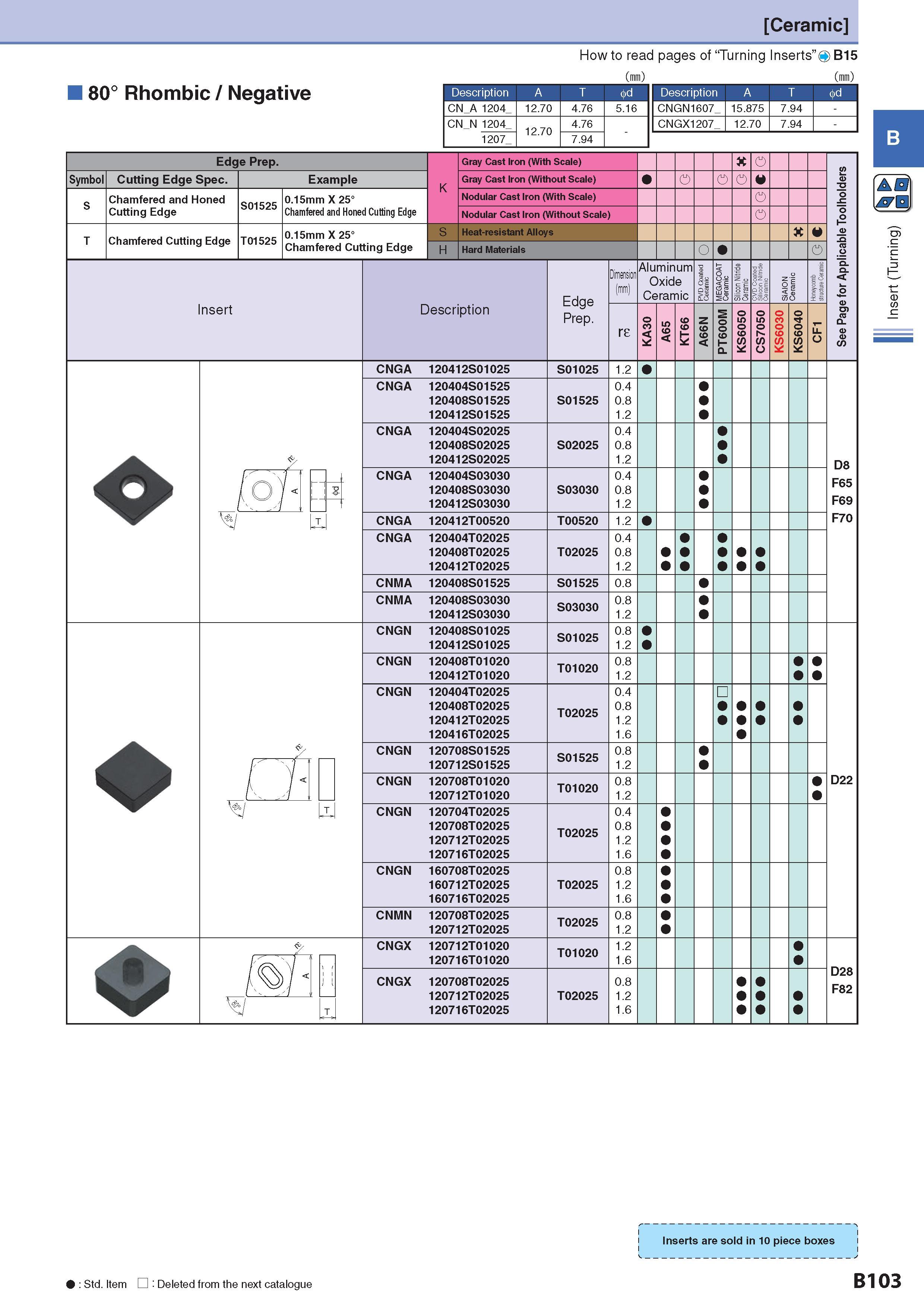

132 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.B103

Каталог KYOCERA 2017 Инструмент режущий Стр. B103 0132 Lab2u

80° Rhombic / Negative Ceramic How to read pages of “Turning Inserts” O B15 (mm) (mm) Description Обозначение A T d Description Обозначение A T d CN A 1204 12.70 4.76 5.16 CNGN1607 15.875 7.94 - CN N 1204 12.70 4.76 - CNGX1207 12.70 7.94 - 1207 7.94 Edge Prep. Symbol Cutting Edge Spec. Chamfered and Honed Cutting Edge Chamfered Cutting Edge Example S01525 T01525 0.15mm X 25° Chamfered and Honed Cutting Edge 0.15mm X 25° Chamfered Cutting Edge Insert Gray Cast Iron (With Scale) Gray Cast Iron (Without Scale) Nodular Cast Iron (With Scale) Nodular Cast Iron (Without Scale) Heat-resistant Alloys Hard Materials Description Обозначение Dimension Edge Prep. Aluminum Oxide Ceramic r e O 6 T Q T C AD JTB e s CNGA 120412S01025 S01025 1.2 CNGA 120404S01525 120408S01525 120412S01525 S01525 0.4 0.8 1.2 CNGA 120404S02025 120408S02025 120412S02025 S02025 0.4 0.8 1.2 CNGA 120404S03030 120408S03030 120412S03030 S03030 0.4 0.8 1.2 CNGA 120412T00520 T00520 1.2 D8 F65 F69 F70 CNGA 120404T02025 120408T02025 120412T02025 T02025 0.4 0.8 1.2 CNMA 120408S01525 S01525 0.8 CNMA 120408S03030 120412S03030 S03030 0.8 1.2 CNGN 120408S01025 120412S01025 S01025 0.8 1.2 CNGN 120408T01020 120412T01020 T01020 0.8 1.2 CNGN 120404T02025 120408T02025 120412T02025 120416T02025 T02025 0.4 0.8 1.2 1.6 CNGN 120708S01525 120712S01525 S01525 0.8 1.2 CNGN 120708T01020 120712T01020 T01020 0.8 1.2 D22 CNGN 120704T02025 120708T02025 120712T02025 120716T02025 T02025 0.4 0.8 1.2 1.6 CNGN 160708T02025 160712T02025 160716T02025 T02025 0.8 1.2 1.6 CNMN 120708T02025 120712T02025 T02025 0.8 1.2 CNGX 120712T01020 120716T01020 T01020 1.2 1.6 CNGX 120708T02025 120712T02025 120716T02025 T02025 0.8 1.2 1.6 D28 F82 B K S S T H T T T : Std. Item Стандартная позиция : Deleted from the next catalogue Указанная позиция будет удалена в следующем каталоге Пластины продаются упаковками по 10 шт. Inserts are sold in 10 piece boxes B103
