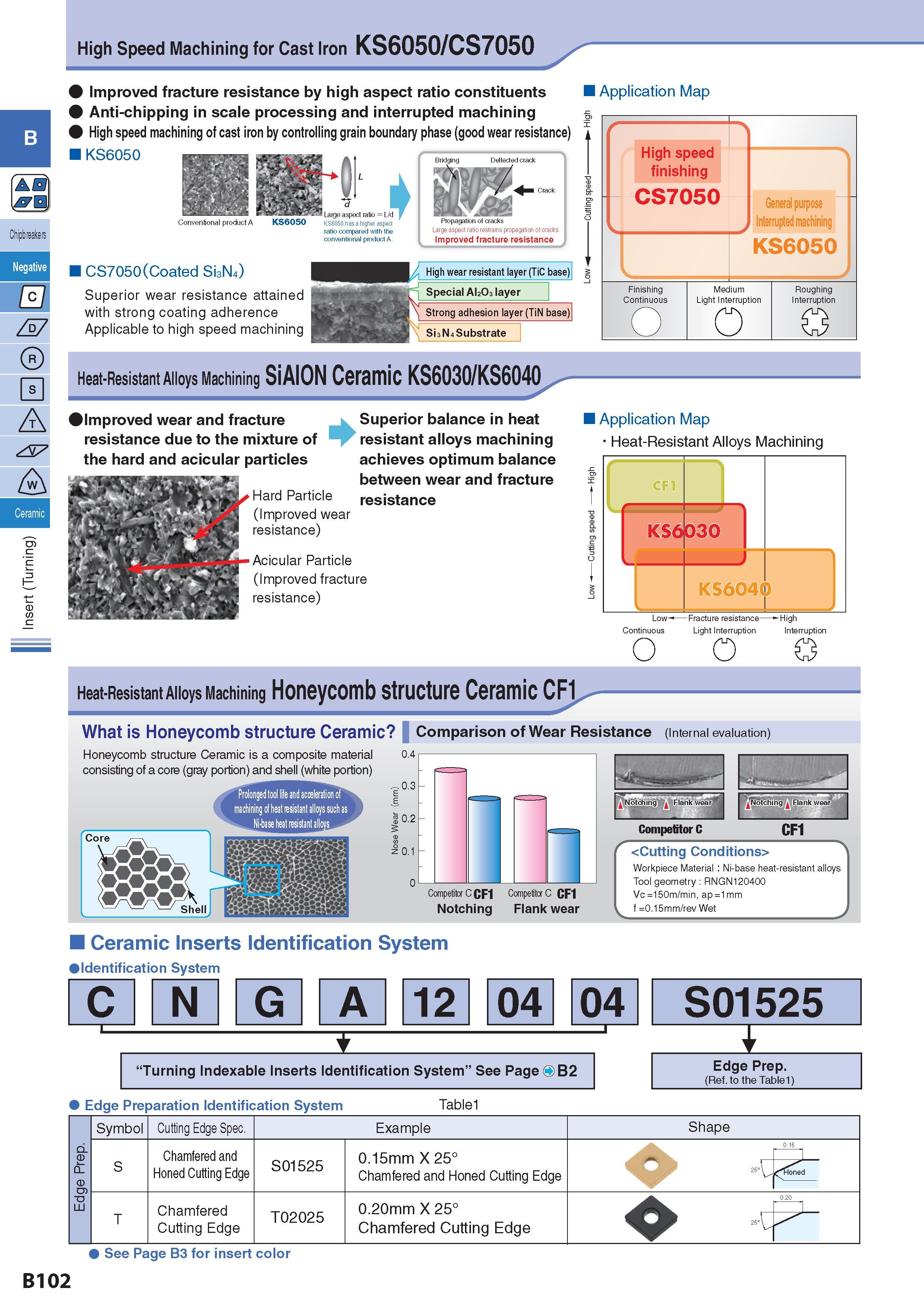

High Speed Machining for Cast Iron KS6050/CS7050 B a n n Chipbreakers Negative /s7 E A A Ceramic e s Improved fracture resistance by high aspect ratio constituents Application Map Anti-chipping in scale processing and interrupted machining High speed machining of cast iron by controlling grain boundary phase (good wear resistance) KS6050 Conventional product A CS7050 (Coated Si3N4) Superior wear resistance attained with strong coating adherence Applicable to high speed machining Large aspect ratio = L/d KS6050 has a higher aspect ratio compared with the conventional product A. ) Deflected crack Propagation of cracks Large aspect ratio restrains propagation of cracks Improved fracture resistance High wear resistant layer (TiC base) Special AI2O3 layer Strong adhesion layer (TiN base) Si3N4Substrate General purpose Interrupted machining KS6050 Medium Light Interruption Roughing Interruption C3 Heat-Resistant Alloys Machining SiAlON Ceramic KS6030/KS6040 Improved wear and fracture resistance due to the mixture of the hard and acicular particles Superior balance in heat resistant alloys machining achieves optimum balance between wear and fracture Hard Particle resistance Improved wear resistance) Acicular Particle (Improved fracture resistance) Application Map Heat-Resistant Alloys Machining KS6030 KS6040 Low Fracture resistance High Continuous Light Interruption Interruption Heat-Resistant Alloys Machining Honeycomb structure Ceramic CF1 What is Honeycomb structure Ceramic I Comparison of Wear Resistance (Internal evaluation) Honeycomb structure Ceramic is a composite material consisting of a core (gray portion) and shell (white portion) Competitor C CF1 Notching Flank wear \ Workpiece Material Обрабатываемый материал : Ni-base heat-resistant alloys Tool geometry : RNGN120400 Vc =150m/min, ap = 1mm f =0.15mm/rev Wet J Ceramic Inserts Identification System Identification System C N G A 12 04 04 “Turning Indexable Inserts Identification System” See Page OB2 Edge Preparation Identification System Table1 S01525 I Edge Prep. (Ref. to the Tablel) Symbol Cutting Edge Spec. Example Shape Chamfered and Honed Cutting Edge S01525 0.15mm X 25° Chamfered and Honed Cutting Edge Chamfered Cutting Edge T02025 0.20mm X 25° Chamfered Cutting Edge L KS6050 0.15 S T See Page B3 for insert color B102
