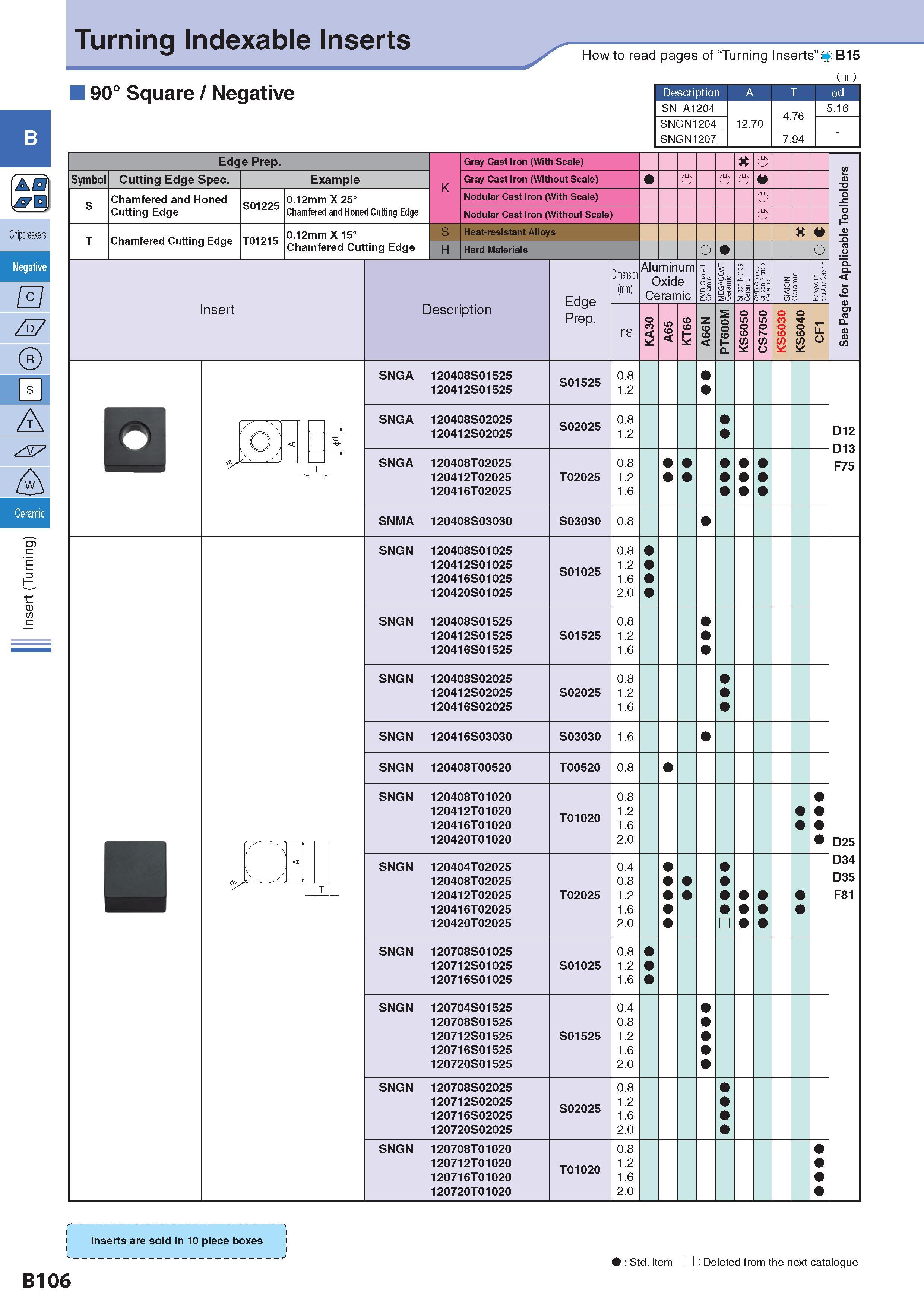

Turning Indexable Inserts How to read pages of “Turning Inserts” O B15 90° Square / Negative Description Обозначение A T d SN A1204 12.70 4.76 5.16 SNGN1204 - SNGN1207 7.94 0 n n Chipbreakers 0 A A Edge Prep. Symbol Cutting Edge Spec. Chamfered and Honed Cutting Edge Chamfered Cutting Edge Example S01225 T01215 0.12mm X 25° Chamfered and Honed Cutting Edge 0.12mm X 15° Chamfered Cutting Edge Insert Gray Cast Iron (With Scale) Gray Cast Iron (Without Scale) Nodular Cast Iron (With Scale) Nodular Cast Iron (Without Scale) Heat-resistant Alloys Hard Materials Description Обозначение Dimension Edge Prep. Aluminum Oxide Ceramic r e O 6 T Q T Q C SNGA 120408S01525 120412S01525 S01525 0.8 1.2 o I o 1 T SNGA 120408S02025 120412S02025 S02025 0.8 1.2 SNGA 120408T02025 120412T02025 120416T02025 T02025 0.8 1.2 1.6 SNMA 120408S03030 S03030 0.8 D12 D13 F75 SNGN 120408S01025 120412S01025 120416S01025 120420S01025 S01025 0.8 1.2 1.6 2.0 e s SNGN 120408S01525 120412S01525 120416S01525 S01525 0.8 1.2 1.6 SNGN 120408S02025 120412S02025 120416S02025 S02025 0.8 1.2 1.6 SNGN 120416S03030 S03030 1.6 SNGN 120408T00520 T00520 0.8 SNGN <'y> / N < T 120408T01020 120412T01020 120416T01020 120420T01020 T01020 0.8 1.2 1.6 2.0 SNGN 120404T02025 120408T02025 120412T02025 120416T02025 120420T02025 T02025 0.4 0.8 1.2 1.6 2.0 SNGN 120708S01025 120712S01025 120716S01025 S01025 0.8 1.2 1.6 SNGN 120704S01525 120708S01525 120712S01525 120716S01525 120720S01525 S01525 0.4 0.8 1.2 1.6 2.0 SNGN 120708S02025 120712S02025 120716S02025 120720S02025 S02025 0.8 1.2 1.6 2.0 SNGN 120708T01020 120712T01020 120716T01020 120720T01020 T01020 0.8 1.2 1.6 2.0 D25 D34 D35 F81 B K S S T H Пластины продаются упаковками по 10 шт. Inserts are sold in 10 piece boxes B106 : Std. Item Стандартная позиция : Deleted from the next catalogue
