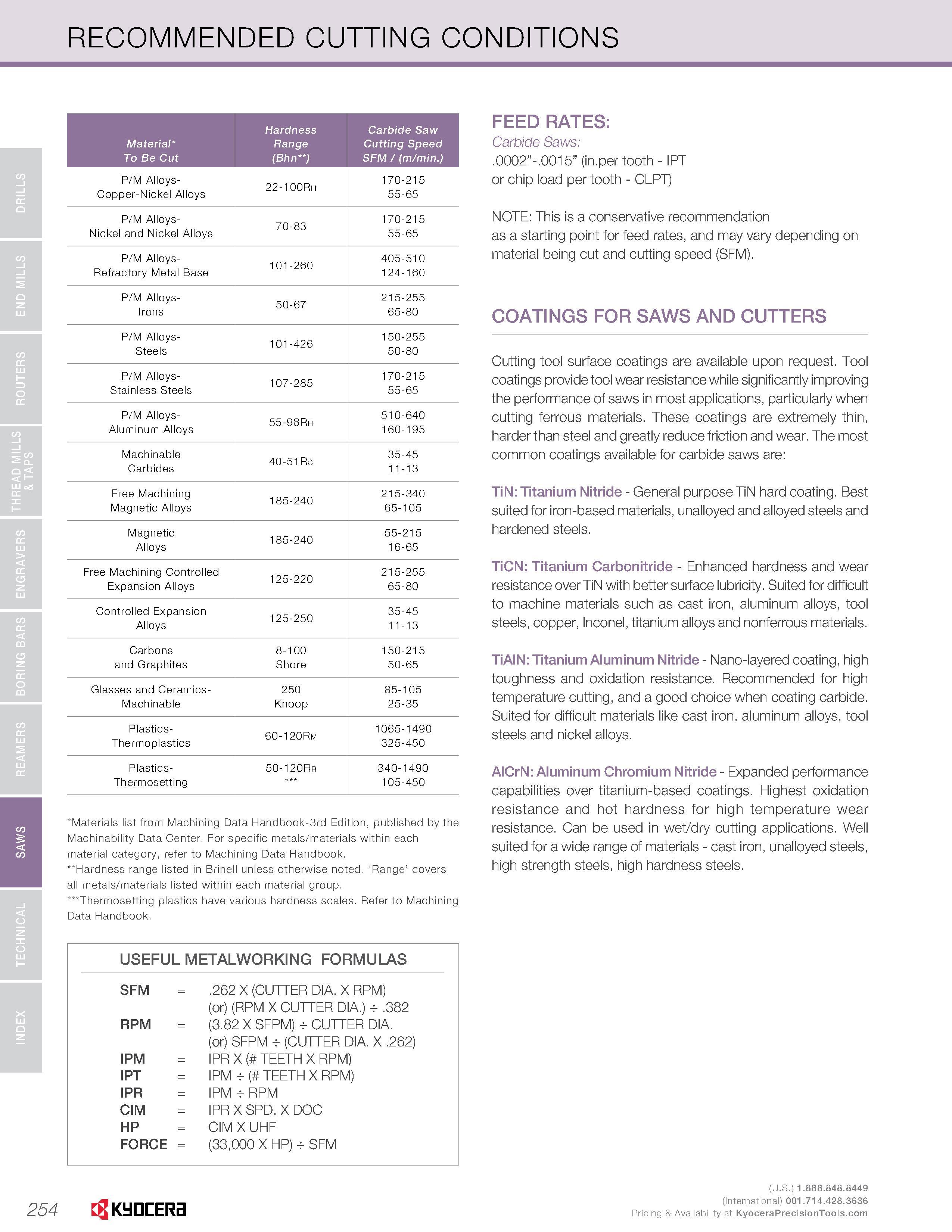

INDEX TECHNICAL SAWS REAMERS BORING BARS ENGRAVERS THR0EA.D MILLS ROUTERS END MILLS DRILLS & TAPS RECOMMENDED CUTTING CONDITIONS Material To Be Cut Hardness Range (Bhn ) Carbide Saw Cutting Speed SFM / (m/min.) P/M Alloys- 22-100Rh 170-215 Copper-Nickel Alloys 55-65 P/M Alloys- 70-83 170-215 Nickel and Nickel Alloys 55-65 P/M Alloys- 101-260 405-510 Refractory Metal Base 124-160 P/M Alloys- 50-67 215-255 Irons 65-80 P/M Alloys- 101-426 150-255 Steels 50-80 P/M Alloys- 107-285 170-215 Stainless Steels 55-65 P/M Alloys- 55-98Rh 510-640 Aluminum Alloys 160-195 Machinable 40-51RC 35-45 Carbides 11-13 Free Machining 185-240 215-340 Magnetic Alloys 65-105 Magnetic 185-240 55-215 Alloys 16-65 Free Machining Controlled 125-220 215-255 Expansion Alloys 65-80 Controlled Expansion 125-250 35-45 Alloys 11-13 Carbons 8-100 150-215 and Graphites Shore 50-65 Glasses and Ceramics- 250 85-105 Machinable Knoop 25-35 Plastics- 60-120Rm 1065-1490 Thermoplastics 325-450 Plastics- 50-120Rr 340-1490 Thermosetting 105-450 Materials list from Machining Data Handbook-3rd Edition, published by the Machinability Data Center. For specific metals/materials within each material category, refer to Machining Data Handbook. Hardness range listed in Brinell unless otherwise noted. ‘Range’ covers all metals/materials listed within each material group. Thermosetting plastics have various hardness scales. Refer to Machining Data Handbook. FEED RATES: Carbide Saws: .0002”-.0015” (in.per tooth - IPT or chip load per tooth - CLPT) NOTE: This is a conservative recommendation as a starting point for feed rates, and may vary depending on material being cut and cutting speed (SFM). COATINGS FOR SAWS AND CUTTERS Cutting tool surface coatings are available upon request. Tool coatings provide tool wear resistance while significantly improving the performance of saws in most applications, particularly when cutting ferrous materials. These coatings are extremely thin, harder than steel and greatly reduce friction and wear. The most common coatings available for carbide saws are: TiN: Titanium Nitride - General purpose TiN hard coating. Best suited for iron-based materials, unalloyed and alloyed steels and hardened steels. TiCN: Titanium Carbonitride - Enhanced hardness and wear resistance over TiN with better surface lubricity. Suited for difficult to machine materials such as cast iron, aluminum alloys, tool steels, copper, Inconel, titanium alloys and nonferrous materials. TiAlN: Titanium Aluminum Nitride - Nano-layered coating, high toughness and oxidation resistance. Recommended for high temperature cutting, and a good choice when coating carbide. Suited for difficult materials like cast iron, aluminum alloys, tool steels and nickel alloys. AlCrN: Aluminum Chromium Nitride - Expanded performance capabilities over titanium-based coatings. Highest oxidation resistance and hot hardness for high temperature wear resistance. Can be used in wet/dry cutting applications. Well suited for a wide range of materials - cast iron, unalloyed steels, high strength steels, high hardness steels. USEFUL METALWORKING FORMULAS SFM = .262 X (CUTTER DIA. X RPM) (or) (RPM X CUTTER DIA.) - .382 RPM = (3.82 X SFPM) - CUTTER DIA. (or) SFPM - (CUTTER DIA. X .262) IPM = IPR X ( TEETH X RPM) IPT = IPM - ( TEETH X RPM) IPR = IPM - RPM CIM = IPR X SPD. X DOC HP = CIM X UHF FORCE = (33,000 X HP) - SFM 254 Kyocera
