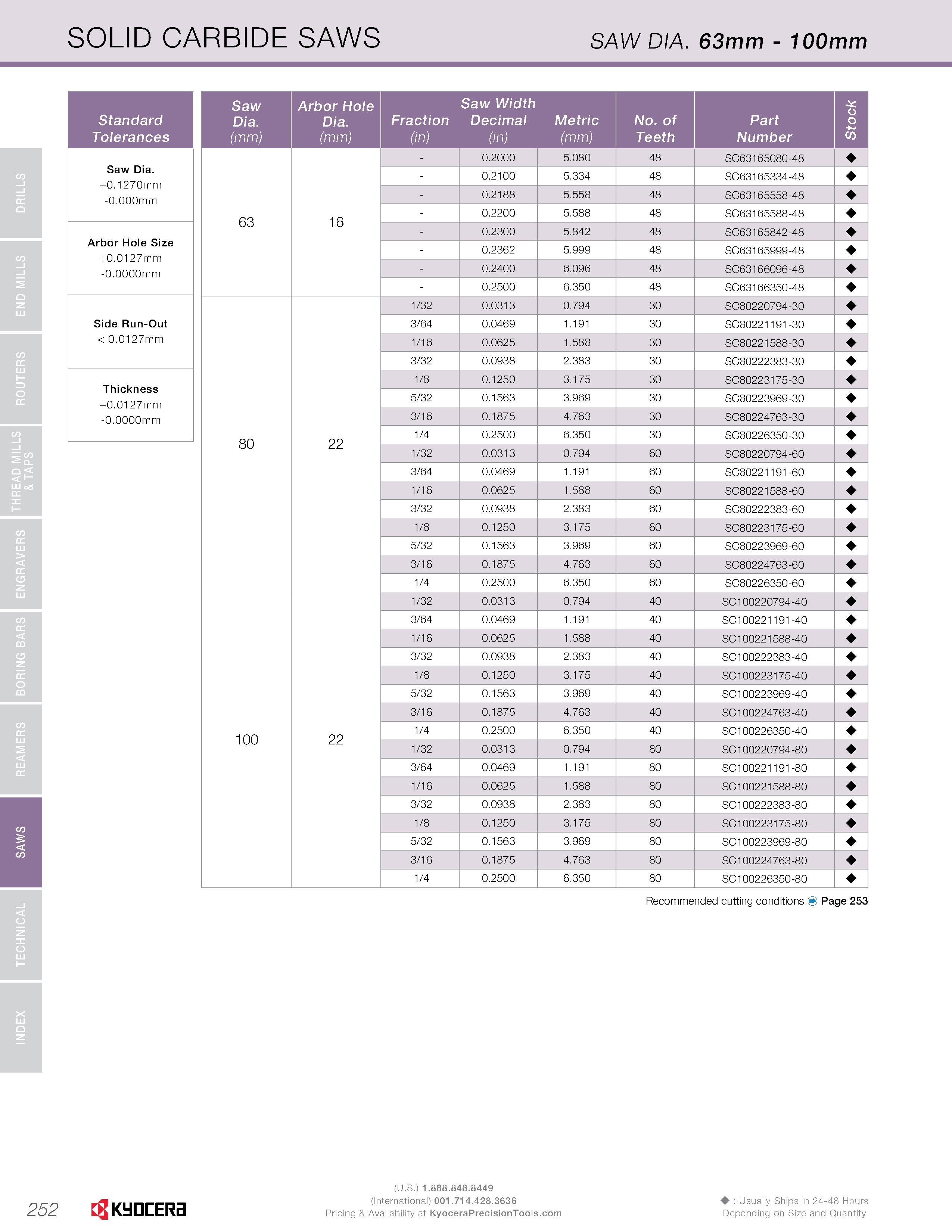

INDEX TECHNICAL SAWS REAMERS BORING BARS ENGRAVERS THREAD nMJLLS ROUTERS END MILLS DRILLS & TAPS 252 SOLID CARBIDE SAWS SAW DIA. 63mm - 100mm Standard Tolerances Saw Dia. +0.1270mm -0.000mm Arbor Hole Size +0.0127mm -0.0000mm Side Run-Out < 0.0127mm Thickness +0.0127mm -0.0000mm Saw Arbor Hole Saw Width Stock Dia. Dia. Fraction Decimal Metric No. of Part (mm) (mm) (in) (in) (mm) Teeth Number - 0.2000 5.080 48 SC63165080-48 - 0.2100 5.334 48 SC63165334-48 - 0.2188 5.558 48 SC63165558-48 63 16 - 0.2200 5.588 48 SC63165588-48 - 0.2300 5.842 48 SC63165842-48 - 0.2362 5.999 48 SC63165999-48 - 0.2400 6.096 48 SC63166096-48 - 0.2500 6.350 48 SC63166350-48 1/32 0.0313 0.794 30 SC80220794-30 3/64 0.0469 1.191 30 SC80221191-30 1/16 0.0625 1.588 30 SC80221588-30 3/32 0.0938 2.383 30 SC80222383-30 1/8 0.1250 3.175 30 SC80223175-30 5/32 0.1563 3.969 30 SC80223969-30 3/16 0.1875 4.763 30 SC80224763-30 80 22 1/4 0.2500 6.350 30 SC80226350-30 1/32 0.0313 0.794 60 SC80220794-60 3/64 0.0469 1.191 60 SC80221191-60 1/16 0.0625 1.588 60 SC80221588-60 3/32 0.0938 2.383 60 SC80222383-60 1/8 0.1250 3.175 60 SC80223175-60 5/32 0.1563 3.969 60 SC80223969-60 3/16 0.1875 4.763 60 SC80224763-60 1/4 0.2500 6.350 60 SC80226350-60 1/32 0.0313 0.794 40 SC100220794-40 3/64 0.0469 1.191 40 SC100221191-40 1/16 0.0625 1.588 40 SC100221588-40 3/32 0.0938 2.383 40 SC100222383-40 1/8 0.1250 3.175 40 SC100223175-40 5/32 0.1563 3.969 40 SC100223969-40 3/16 0.1875 4.763 40 SC100224763-40 100 22 1/4 0.2500 6.350 40 SC100226350-40 1/32 0.0313 0.794 80 SC100220794-80 3/64 0.0469 1.191 80 SC100221191-80 1/16 0.0625 1.588 80 SC100221588-80 3/32 0.0938 2.383 80 SC100222383-80 1/8 0.1250 3.175 80 SC100223175-80 5/32 0.1563 3.969 80 SC100223969-80 3/16 0.1875 4.763 80 SC100224763-80 1/4 0.2500 6.350 80 SC100226350-80 Recommended cutting conditions Page 253 (U.S.) (International) 001.714.428.3636 Usually Ships in 24-48 Hours Pricing & Availability at Depending on Size and Quantity
