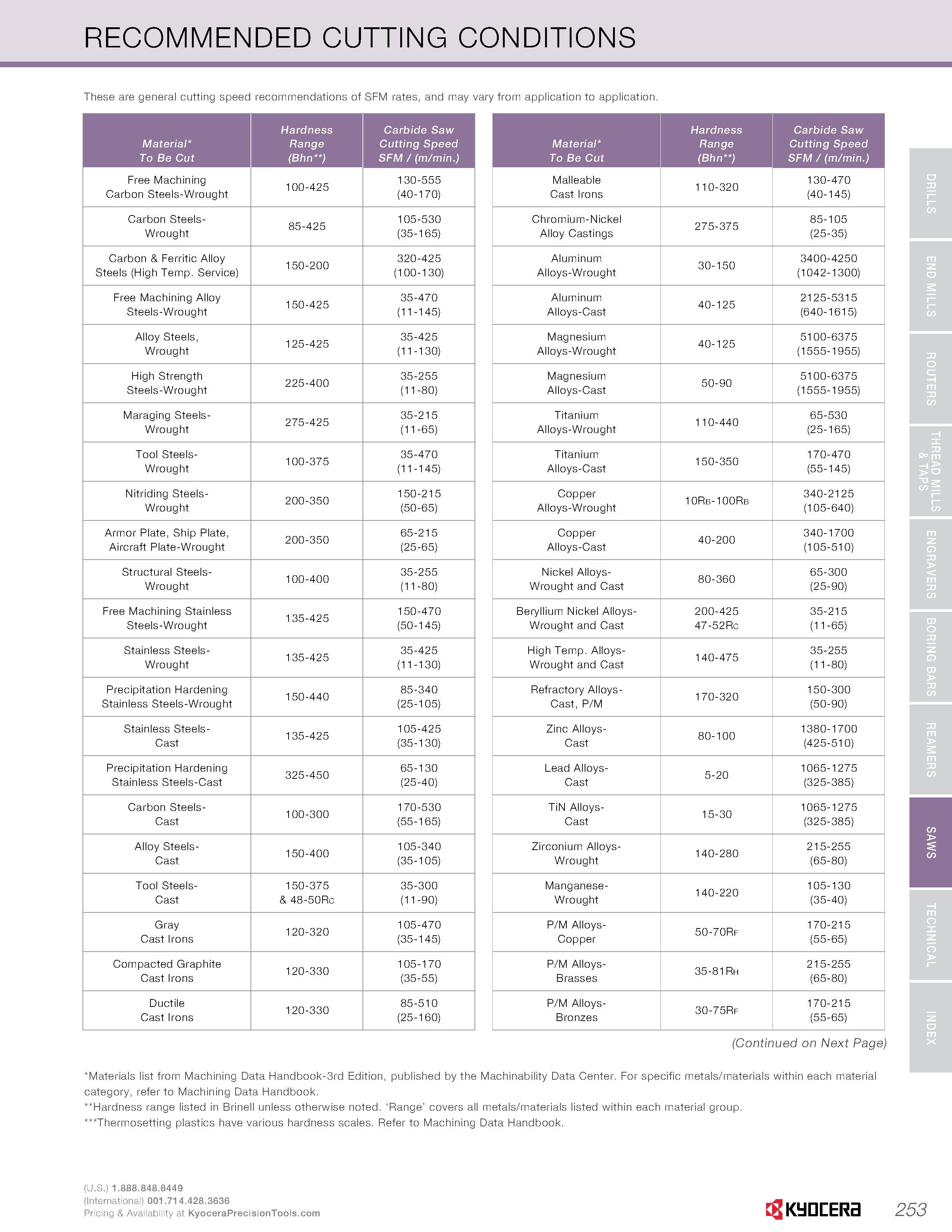

RECOMMENDED CUTTING CONDITIONS These are general cutting speed recommendations of SFM rates, and may vary from application to application. Material To Be Cut Hardness Range (Bhn ) Carbide Saw Cutting Speed SFM / (m/min.) Free Machining 100-425 130-555 Carbon Steels-Wrought (40-170) Carbon Steels- 85-425 105-530 Wrought (35-165) Carbon & Ferritic Alloy 150-200 320-425 Steels (High Temp. Service) (100-130) Free Machining Alloy 150-425 35-470 Steels-Wrought (11-145) Alloy Steels, 125-425 35-425 Wrought (11-130) High Strength 225-400 35-255 Steels-Wrought (11-80) Maraging Steels- 275-425 35-215 Wrought (11-65) Tool Steels- 100-375 35-470 Wrought (11-145) Nitriding Steels- 200-350 150-215 Wrought (50-65) Armor Plate, Ship Plate, 200-350 65-215 Aircraft Plate-Wrought (25-65) Structural Steels- 100-400 35-255 Wrought (11-80) Free Machining Stainless 135-425 150-470 Steels-Wrought (50-145) Stainless Steels- 135-425 35-425 Wrought (11-130) Precipitation Hardening 150-440 85-340 Stainless Steels-Wrought (25-105) Stainless Steels- 135-425 105-425 Cast (35-130) Precipitation Hardening 325-450 65-130 Stainless Steels-Cast (25-40) Carbon Steels- 100-300 170-530 Cast (55-165) Alloy Steels- 150-400 105-340 Cast (35-105) Tool Steels- 150-375 35-300 Cast & 48-50RC (11-90) Gray 120-320 105-470 Cast Irons (35-145) Compacted Graphite 120-330 105-170 Cast Irons (35-55) Ductile 120-330 85-510 Cast Irons (25-160) Material To Be Cut Hardness Range (Bhn ) Carbide Saw Cutting Speed SFM / (m/min.) Malleable 110-320 130-470 Cast Irons (40-145) Chromium-Nickel 275-375 85-105 Alloy Castings (25-35) Aluminum 30-150 3400-4250 Alloys-Wrought (1042-1300) Aluminum 40-125 2125-5315 Alloys-Cast (640-1615) Magnesium 40-125 5100-6375 Alloys-Wrought (1555-1955) Magnesium 50-90 5100-6375 Alloys-Cast (1555-1955) Titanium 110-440 65-530 Alloys-Wrought (25-165) Titanium 150-350 170-470 Alloys-Cast (55-145) Copper 10Rb-100Rb 340-2125 Alloys-Wrought (105-640) Copper 40-200 340-1700 Alloys-Cast (105-510) Nickel Alloys- 80-360 65-300 Wrought and Cast (25-90) Beryllium Nickel Alloys- 200-425 35-215 Wrought and Cast 47-52RC (11-65) High Temp. Alloys- 140-475 35-255 Wrought and Cast (11-80) Refractory Alloys- 170-320 150-300 Cast, P/M (50-90) Zinc Alloys- 80-100 1380-1700 Cast (425-510) Lead Alloys- 5-20 1065-1275 Cast (325-385) TiN Alloys- 15-30 1065-1275 Cast (325-385) Zirconium Alloys- 140-280 215-255 Wrought (65-80) Manganese- 140-220 105-130 Wrought (35-40) P/M Alloys- 50-70Rf 170-215 Copper (55-65) P/M Alloys- 35-81Rh 215-255 Brasses (65-80) P/M Alloys- 30-75Rf 170-215 Bronzes (55-65) (Continued on Next Page) Materials list from Machining Data Handbook-3rd Edition, published by the Machinability Data Center. For specific metals/materials within each material category, refer to Machining Data Handbook. Hardness range listed in Brinell unless otherwise noted. ‘Range’ covers all metals/materials listed within each material group. Thermosetting plastics have various hardness scales. Refer to Machining Data Handbook. (U.S.) (International) 001.714.428.3636 253 Pricing & Availability at 253
