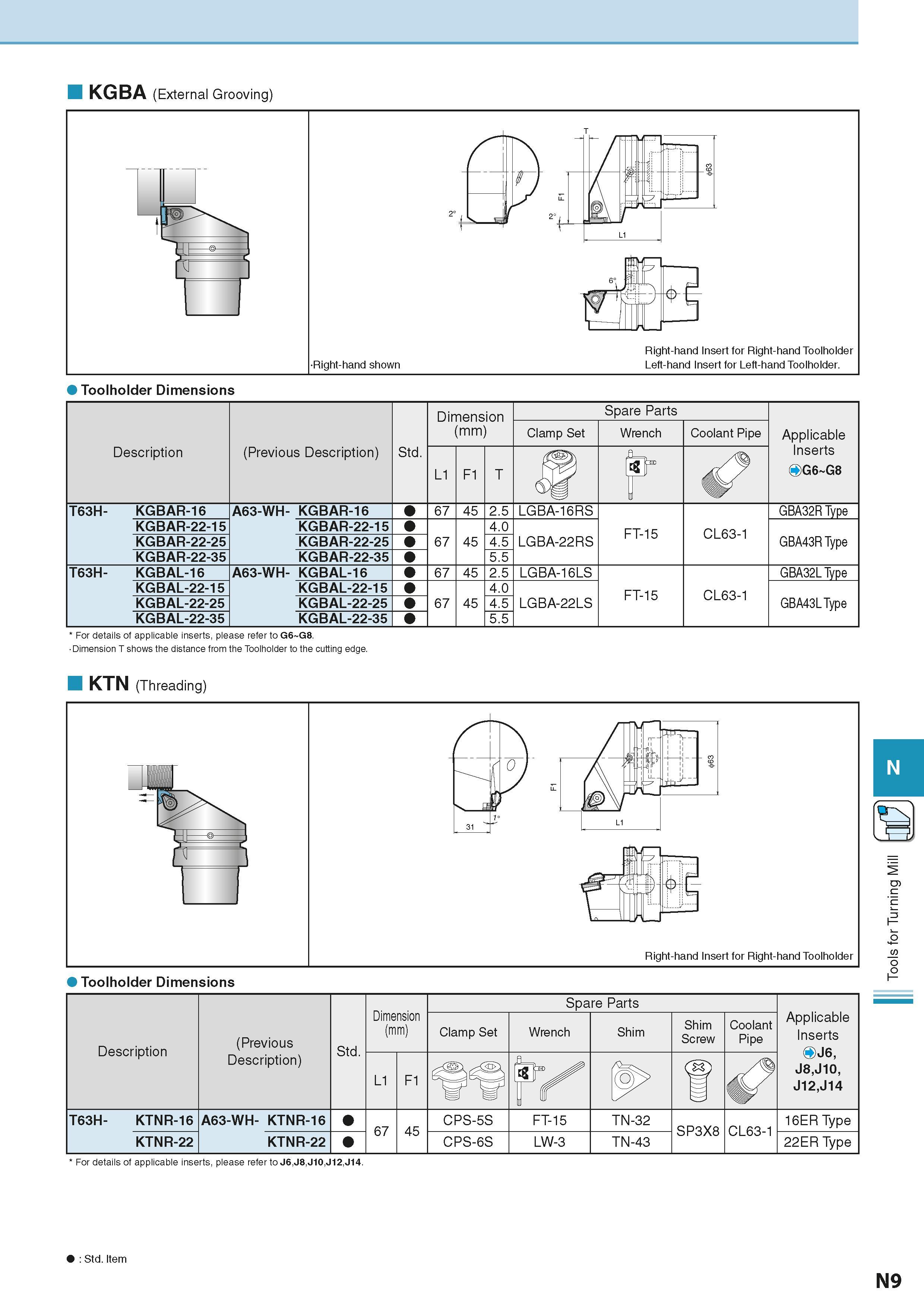

KGBA (External Grooving) Toolholder Dimensions Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Applicable Inserts OG6-G8 Clamp Set Wrench Coolant Pipe L1 F1 T if & T63H- KGBAR-16 A63-WH- KGBAR-16 67 45 2.5 LGBA-16RS FT-15 CL63-1 GBA32R Type KGBAR-22-15 KGBAR-22-15 67 45 4.0 LGBA-22RS GBA43R Type KGBAR-22-25 KGBAR-22-25 4.5 KGBAR-22-35 KGBAR-22-35 5.5 T63H- KGBAL-16 A63-WH- KGBAL-16 67 45 2.5 LGBA-16LS FT-15 CL63-1 GBA32L Type KGBAL-22-15 KGBAL-22-15 67 45 4.0 LGBA-22LS GBA43L Type KGBAL-22-25 KGBAL-22-25 4.5 KGBAL-22-35 KGBAL-22-35 5.5 For details of applicable inserts, please refer to G6 G8. Dimension T shows the distance from the Toolholder to the cutting edge. KTN (Threading) Toolholder Dimensions Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Applicable Inserts OJ6, J8,J10, J12,J14 Clamp Set Wrench Shim Shim Screw Coolant Pipe L1 F1 S> (g) & T63H- KTNR-16 A63-WH- KTNR-16 67 45 CPS-5S FT-15 TN-32 SP3X8 CL63-1 16ER Type KTNR-22 KTNR-22 CPS-6S LW-3 TN-43 22ER Type For details of applicable inserts, please refer to J6,J8,J10,J12,J14. Std. Item N9 Tools for Turning Mill
