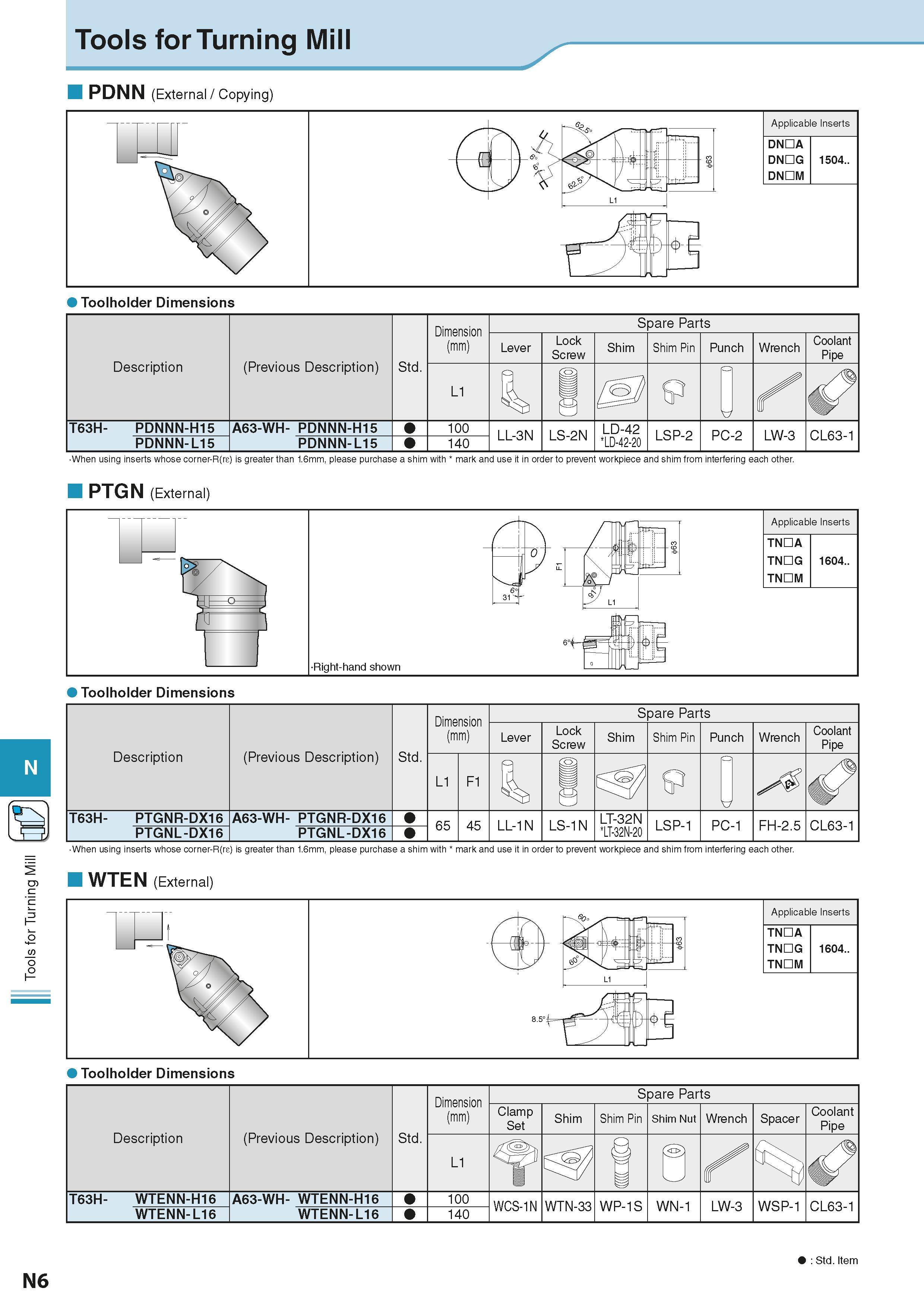

Tools for Turning Mill PDNN (External / Copying) Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм L1 Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench Coolant Pipe T63H- PDNNN-H15 A63-WH- PDNNN-H15 100 PDNNN-L15 PDNNN-L15 140 LL-3N LS-2N LD-42 LD-42-20 LSP-2 PC-2 LW-3 CL63-1 When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. PTGN (External) Applicable Inserts TNDA TNDG TNDM 1604.. Right-hand shown ts Toolholder Dimensions Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм L1 F1 Lever Lock Screw Spare Parts Shim Shim Pin Punch Wrench Coolant Pipe T63H- PTGNR-DX16 A63-WH- PTGNR-DX16 PTGNL-DX16 PTGNL-DX16 65 45 LL-1N LS-1N LT-32N LT-32N-20 LSP-1 PC-1 FH-2.5 CL63-1 When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. WTEN (External) N Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Clamp Set Shim Shim Pin Shim Nut Wrench Spacer Coolant Pipe L1 s s % 47 T63H- WTENN-H16 A63-WH- WTENN-H16 100 WCS-1N WTN-33 WP-1S WN-1 LW-3 WSP-1 CL63-1 WTENN-L16 WTENN-L16 140 Std. Item N6
