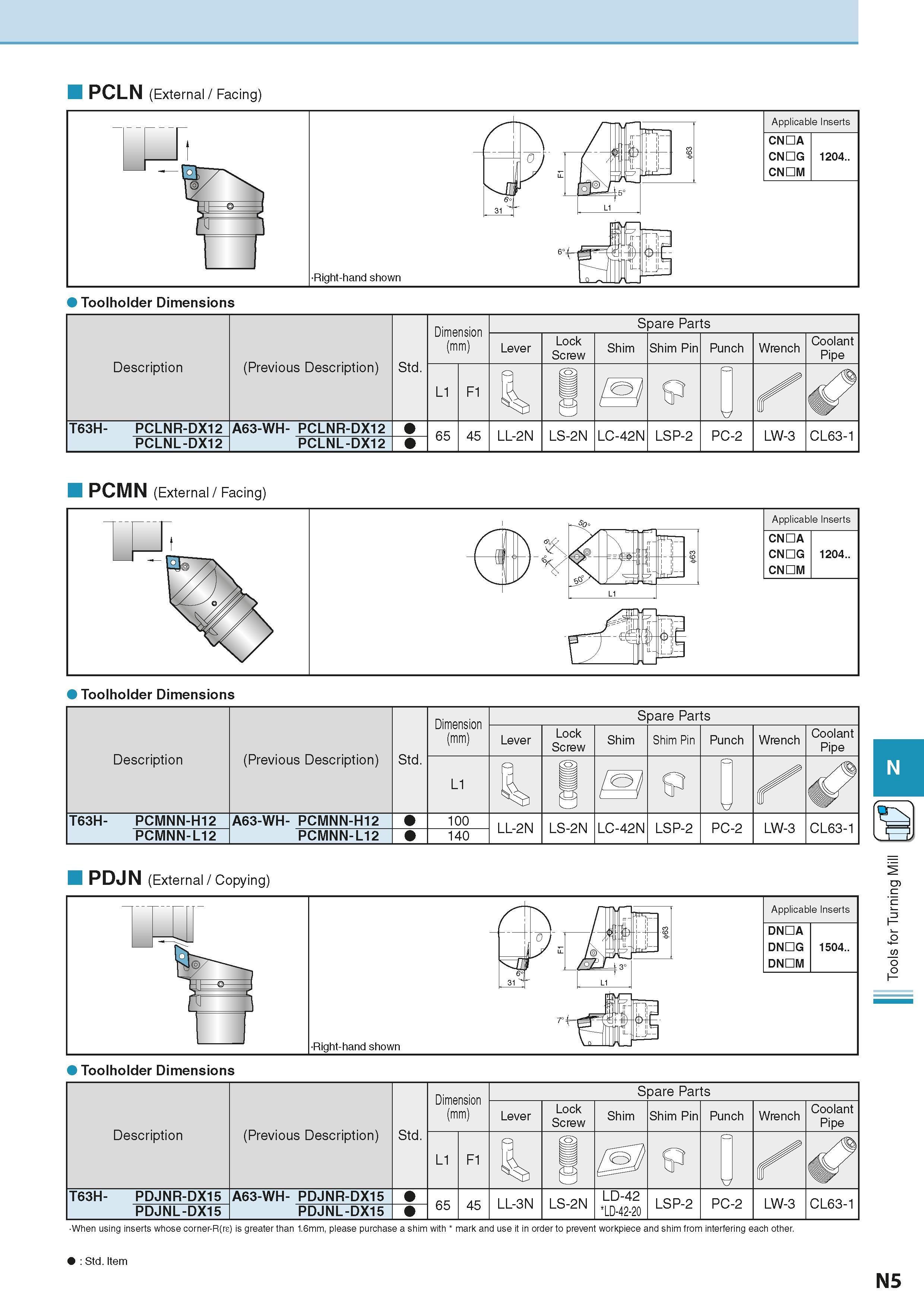

PCLN (External / Facing) Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench Coolant Pipe L1 F1 la 1 / / 9 s & T63H- PCLNR-DX12 A63-WH- PCLNR-DX12 65 45 LL-2N LS-2N LC-42N LSP-2 PC-2 LW-3 CL63-1 PCLNL-DX12 PCLNL-DX12 PCMN (External / Facing) Toolholder Dimensions Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench Coolant Pipe L1 1 / / P w S' & T63H- PCMNN-H12 A63-WH- PCMNN-H12 100 LL-2N LS-2N LC-42N LSP-2 PC-2 LW-3 CL63-1 PCMNN-L12 PCMNN-L12 140 PDJN (External / Copying) Description (Previous Description) Std. Dimension (mm) Размеры инструмента указаны в мм Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench Coolant Pipe L1 F1 1 LS P w s & T63H- PDJNR-DX15 A63-WH- PDJNR-DX15 65 45 LL-3N LS-2N LD-42 LD-42-20 LSP-2 PC-2 LW-3 CL63-1 PDJNL-DX15 PDJNL-DX15 When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. Std. Item N5 Tools for Turning Mill
