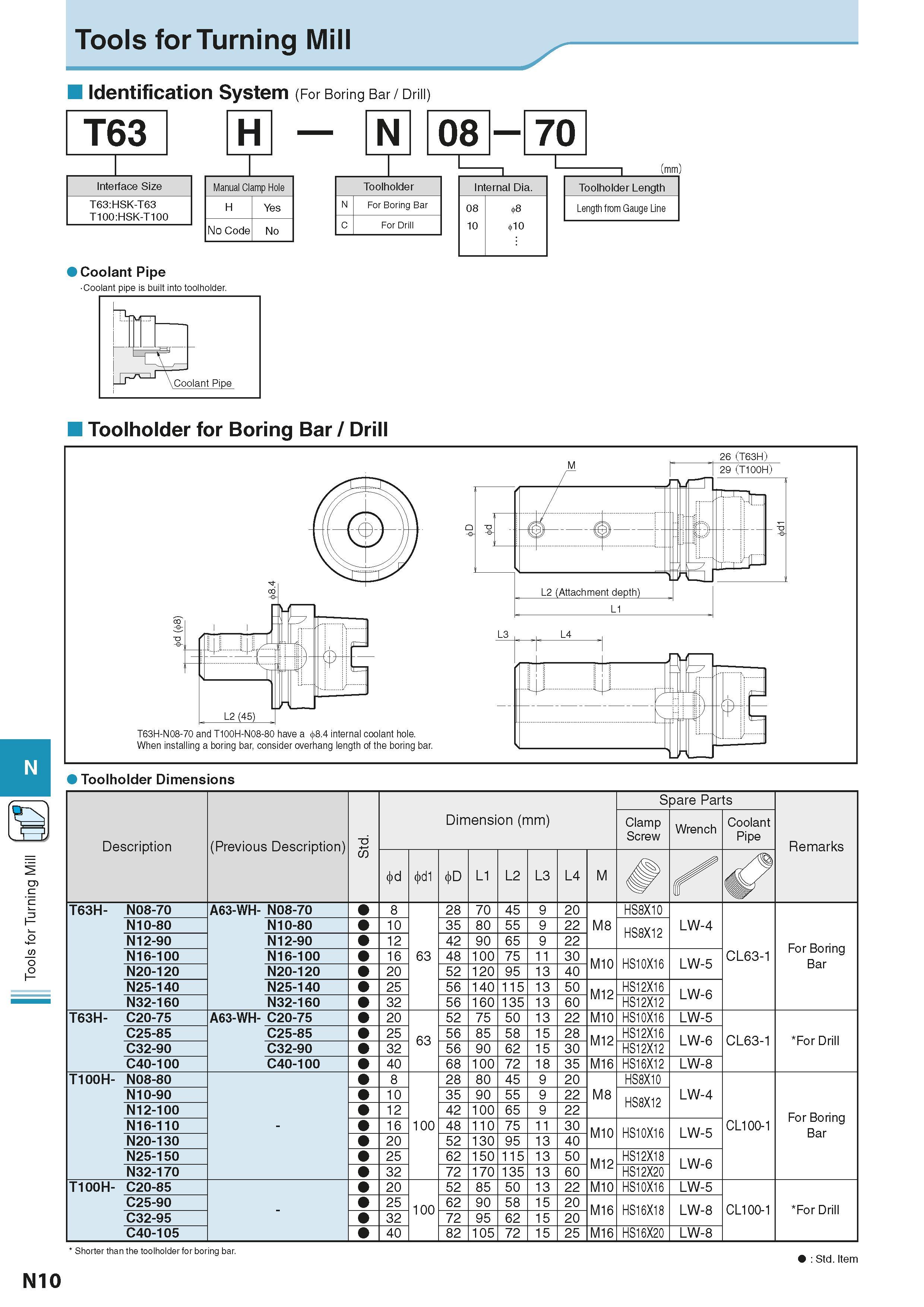

Tools for Turning Mill Identification System (For Boring Bar / Drill) T63 Interface Size T63:HSK-T63 T100:HSK-T100 H N 08 Manual Clamp Hole H Yes No Code No Coolant Pipe Coolant pipe is built into toolholder. Toolholder N For Boring Bar C For Drill Internal Dia. 08 8 10 10 Toolholder for Boring Bar / Drill Description (Previous Description) -6 W Dimension (mm) Размеры инструмента указаны в мм Spare Parts Remarks Clamp Screw Wrench Coolant Pipe d < d1 < D L1 L2 L3 L4 M < s & T63H- N08-70 A63-WH- N08-70 8 63 28 70 45 9 20 M8 HS8X10 LW-4 CL63-1 For Boring Bar N10-80 N10-80 10 35 80 55 9 22 HS8X12 N12-90 N12-90 12 42 90 65 9 22 N16-100 N16-100 16 48 100 75 11 30 M10 HS10X16 LW-5 N20-120 N20-120 20 52 120 95 13 40 N25-140 N25-140 25 56 140 115 13 50 M12 HS12X16 LW-6 N32-160 N32-160 32 56 160 135 13 60 HS12X12 T63H- C20-75 A63-WH- C20-75 20 63 52 75 50 13 22 M10 HS10X16 LW-5 CL63-1 For Drill C25-85 C25-85 25 56 85 58 15 28 M12 HS12X16 LW-6 C32-90 C32-90 32 56 90 62 15 30 HS12X12 C40-100 C40-100 40 68 100 72 18 35 M16 HS16X12 LW-8 T100H- N08-80 - 8 100 28 80 45 9 20 M8 HS8X10 LW-4 CL100-1 For Boring Bar N10-90 10 35 90 55 9 22 HS8X12 N12-100 12 42 100 65 9 22 N16-110 16 48 110 75 11 30 M10 HS10X16 LW-5 N20-130 20 52 130 95 13 40 N25-150 25 62 150 115 13 50 M12 HS12X18 LW-6 N32-170 32 72 170 135 13 60 HS12X20 T100H- C20-85 - 20 100 52 85 50 13 22 M10 HS10X16 LW-5 CL100-1 For Drill C25-90 25 62 90 58 15 20 M16 HS16X18 LW-8 C32-95 32 72 95 62 15 20 C40-105 40 82 105 72 15 25 M16 HS16X20 LW-8 £ O ,o Shorter than the toolholder for boring bar. Std. Item N10
