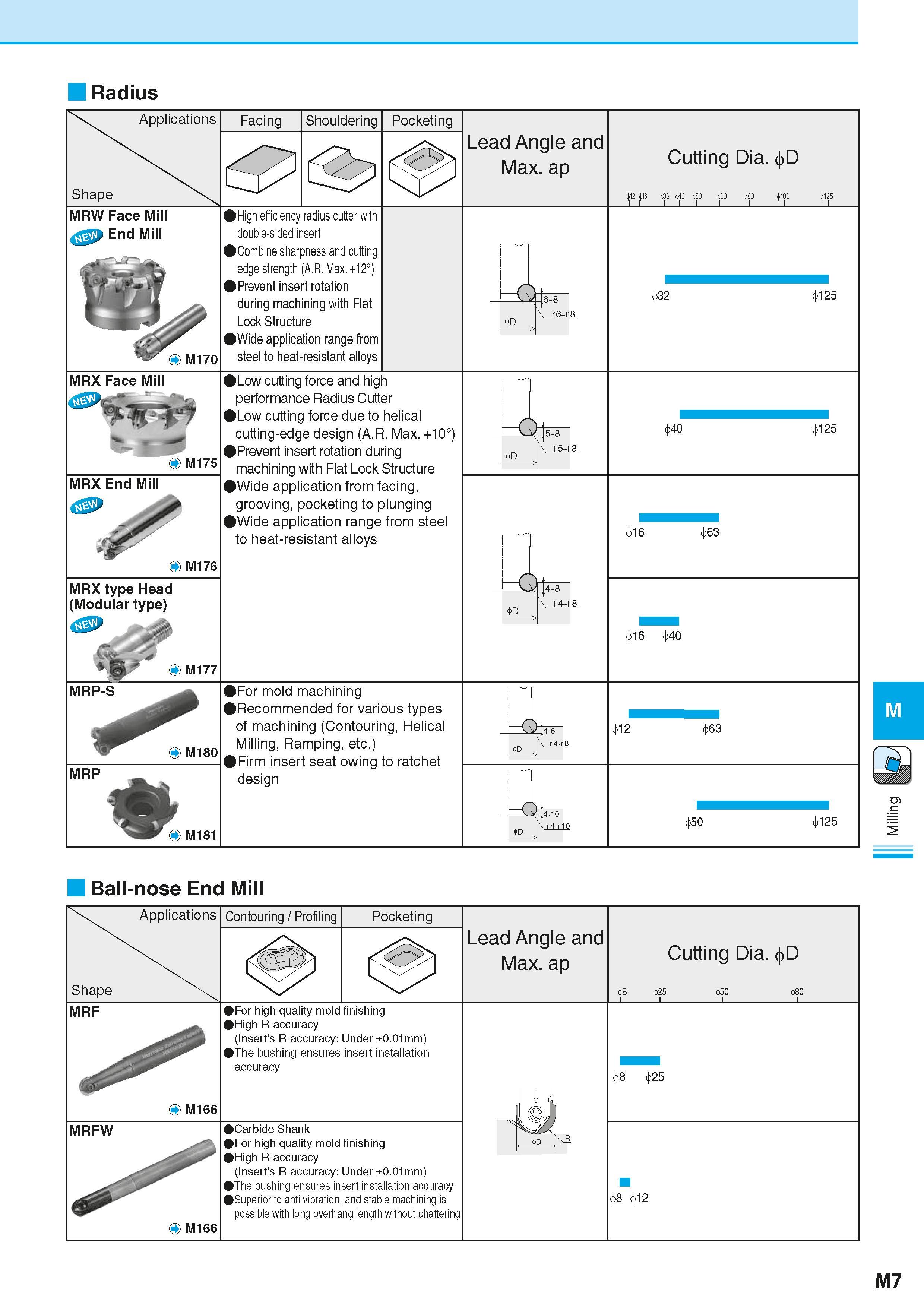

Radius Applications Shape Facing Shouldering Pocketing Lead Angle and Max. ap Cutting Dia. D 12 16 32 40 50 63 80 100 125 MRW Face Mill End Mill High efficiency radius cutter with double-sided insert Combine sharpness and cutting edge strength (A.R. Max. +12°) Prevent insert rotation during machining with Flat Lock Structure Wide application range from steel to heat-resistant alloys C>: i6 8 r6 r8 32 125 MRX Face Mill O M175 MRX End Mill Low cutting force and high performance Radius Cutter Low cutting force due to helical cutting-edge design (A.R. Max. +10° Prevent insert rotation during machining with Flat Lock Structure Wide application from facing, grooving, pocketing to plunging Wide application range from steel to heat-resistant alloys 4>D 5-8 \ r5 r8 40 125 O M176 MRX type Head (Modular type) W O M177 16 63 4>D 14-8 r4-r8 16 40 MRP-S O M180 MRP dkL O M181 For mold machining Recommended for various types of machining (Contouring, Helical Milling, Ramping, etc.) Firm insert seat owing to ratchet design 12 63 50 125 Ball-nose End Mill Applications Contouring / Profiling Pocketing Shape Lead Angle and Max. ap Cutting Dia. D 25 50 MRF For high quality mold finishing High R-accuracy (Insert's R-accuracy: Under ±0.01mm) The bushing ensures insert installation accuracy 8 25 O M166 MRFW O M166 Carbide Shank For high quality mold finishing High R-accuracy (Insert's R-accuracy: Under ±0.01mm) The bushing ensures insert installation accuracy Superior to anti vibration, and stable machining is possible with long overhang length without chattering 8 12 8 M7
