690 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M4

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M4 0690 Lab2u

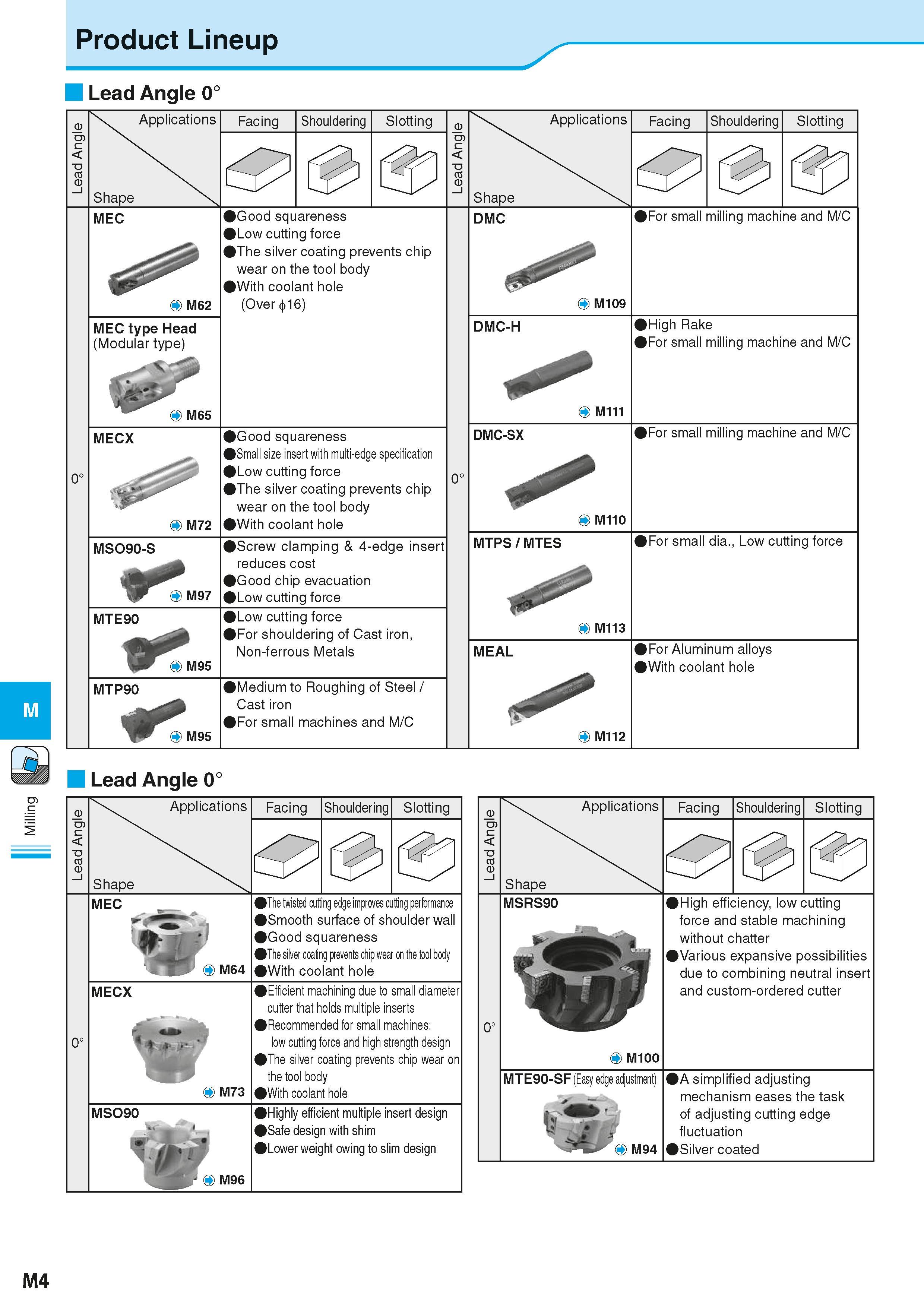

Milling Product Lineup Lead Angle 0° Applications Shape Facing Shouldering Slotting Applications Shape Facing Shouldering Slotting MEC O M62 Good squareness Low cutting force The silver coating prevents chip wear on the tool body With coolant hole (Over 16) DMC For small milling machine and M/C O M109 MEC type Head (Modular type) V DMC-H High Rake For small milling machine and M/C O M65 O M111 MECX O M72 Good squareness Small size insert with multi-edge specification Low cutting force The silver coating prevents chip wear on the tool body With coolant hole DMC-SX For small milling machine and M/C 0° O M110 MS090-S O M97 Screw clamping & 4-edge insert reduces cost Good chip evacuation Low cutting force MTPS/MTES For small dia., Low cutting force MTE90 OM95 Low cutting force For shouldering of Cast iron, Non-ferrous Metals O M113 MEAL MTP90 O M95 Medium to Roughing of Steel / Cast iron For small machines and M/C For Aluminum alloys With coolant hole O M112 Lead Angle 0° Lead Angle Applications Facing Shouldering Slotting Shape F3 0 MEC t' O M64 The twisted cutting edge improves cutting performance Smooth surface of shoulder wall Good squareness The silver coating prevents chip wear on the tool body With coolant hole 0° MECX O M73 Efficient machining due to small diameter cutter that holds multiple inserts Recommended for small machines: low cutting force and high strength design The silver coating prevents chip wear on the tool body With coolant hole MS090 % mS O M96 Highly efficient multiple insert design Safe design with shim Lower weight owing to slim design le gl n A "O e Applications Shape Facing Shouldering Slotting MSRS90 High efficiency, low cutting force and stable machining without chatter Various expansive possibilities due to combining neutral insert and custom-ordered cutter 4 M100 MTE90-SF (Easy edge adjustment) 4 M94 A simplified adjusting mechanism eases the task of adjusting cutting edge fluctuation Silver coated 0 M4
