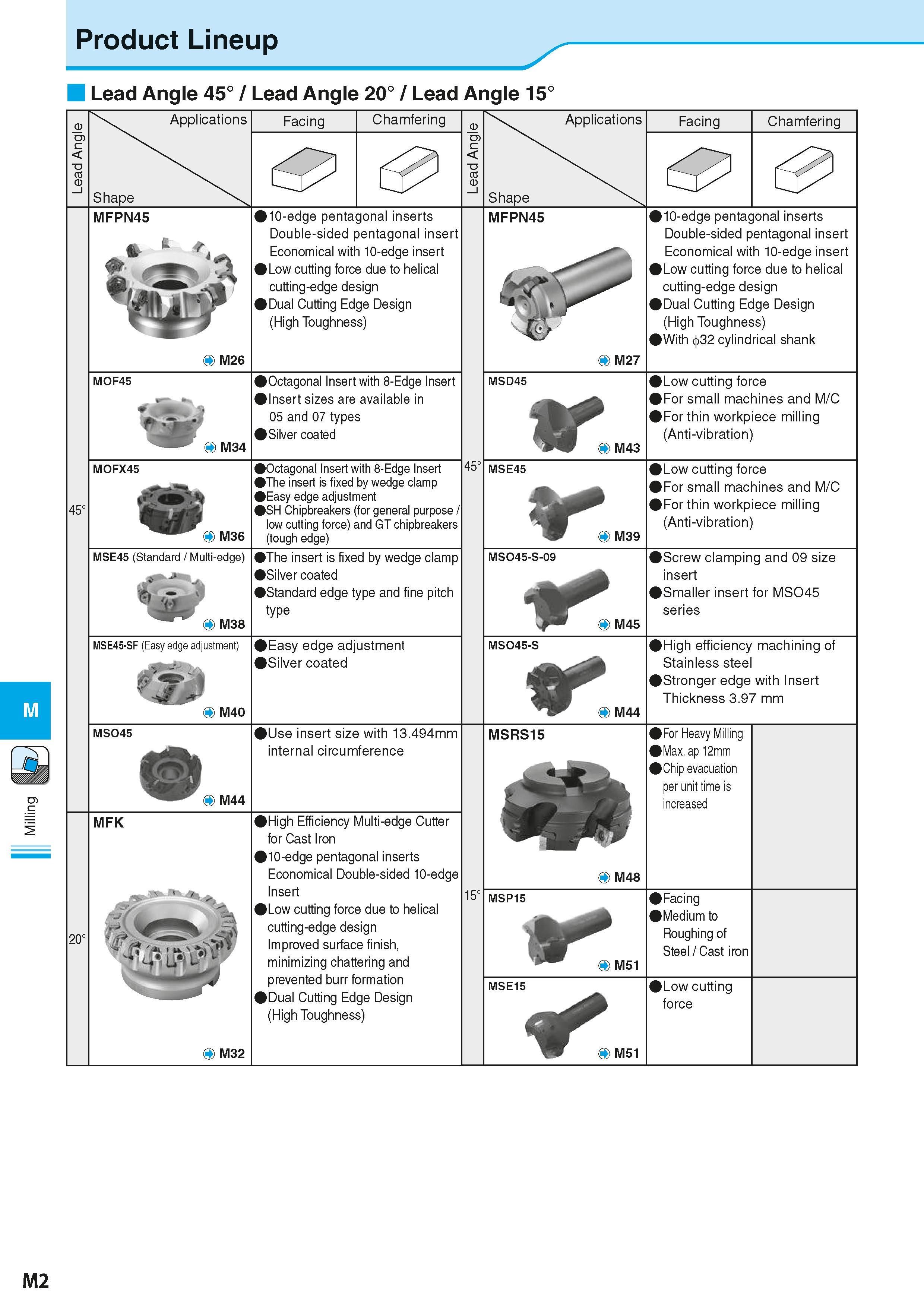

Milling Product Lineup Lead Angle 45° / Lead Angle 20° / Lead Angle 15° Applications Shape Facing Chamfering Applications Shape Facing Chamfering MFPN45 10-edge pentagonal inserts Double-sided pentagonal insert Economical with 10-edge insert Low cutting force due to helical cutting-edge design Dual Cutting Edge Design (High Toughness) MFPN45 10-edge pentagonal inserts Double-sided pentagonal insert Economical with 10-edge insert Low cutting force due to helical cutting-edge design Dual Cutting Edge Design (High Toughness) With 32 cylindrical shank O M26 O M27 MOF45 O M34 Octagonal Insert with 8-Edge Insert Insert sizes are available in 05 and 07 types Silver coated MSD45 o M43 Low cutting force For small machines and M/C For thin workpiece milling (Anti-vibration) MOFX45 45° O M36 Octagonal Insert with 8-Edge Insert The insert is fixed by wedge clamp Easy edge adjustment SH Chipbreakers (for general purpose / low cutting force) and GT chipbreakers (tough edge) 45° MSE45 O M39 Low cutting force For small machines and M/C For thin workpiece milling (Anti-vibration) MSE45 (Standard / Multi-edge) O M38 The insert is fixed by wedge clamp Silver coated Standard edge type and fine pitch type MSO45-S-09 Screw clamping and 09 size insert Smaller insert for MSO45 series M45 MSE45-SF (Easy edge adjustment) O M40 Easy edge adjustment Silver coated MSO45-S O M44 High efficiency machining of Stainless steel Stronger edge with Insert Thickness 3.97 mm MSO45 Use insert size with 13.494mm internal circumference MSRS15 O M44 MFK 20° High Efficiency Multi-edge Cutter for Cast Iron 10-edge pentagonal inserts Economical Double-sided 10-edge Insert Low cutting force due to helical cutting-edge design Improved surface finish, minimizing chattering and prevented burr formation Dual Cutting Edge Design (High Toughness) For Heavy Milling Max. ap 12mm Chip evacuation per unit time is increased O M48 15° MSP15 o M51 Facing Medium to Roughing of Steel / Cast iron O M32 MSE15 if o M51 Low cutting force M2
