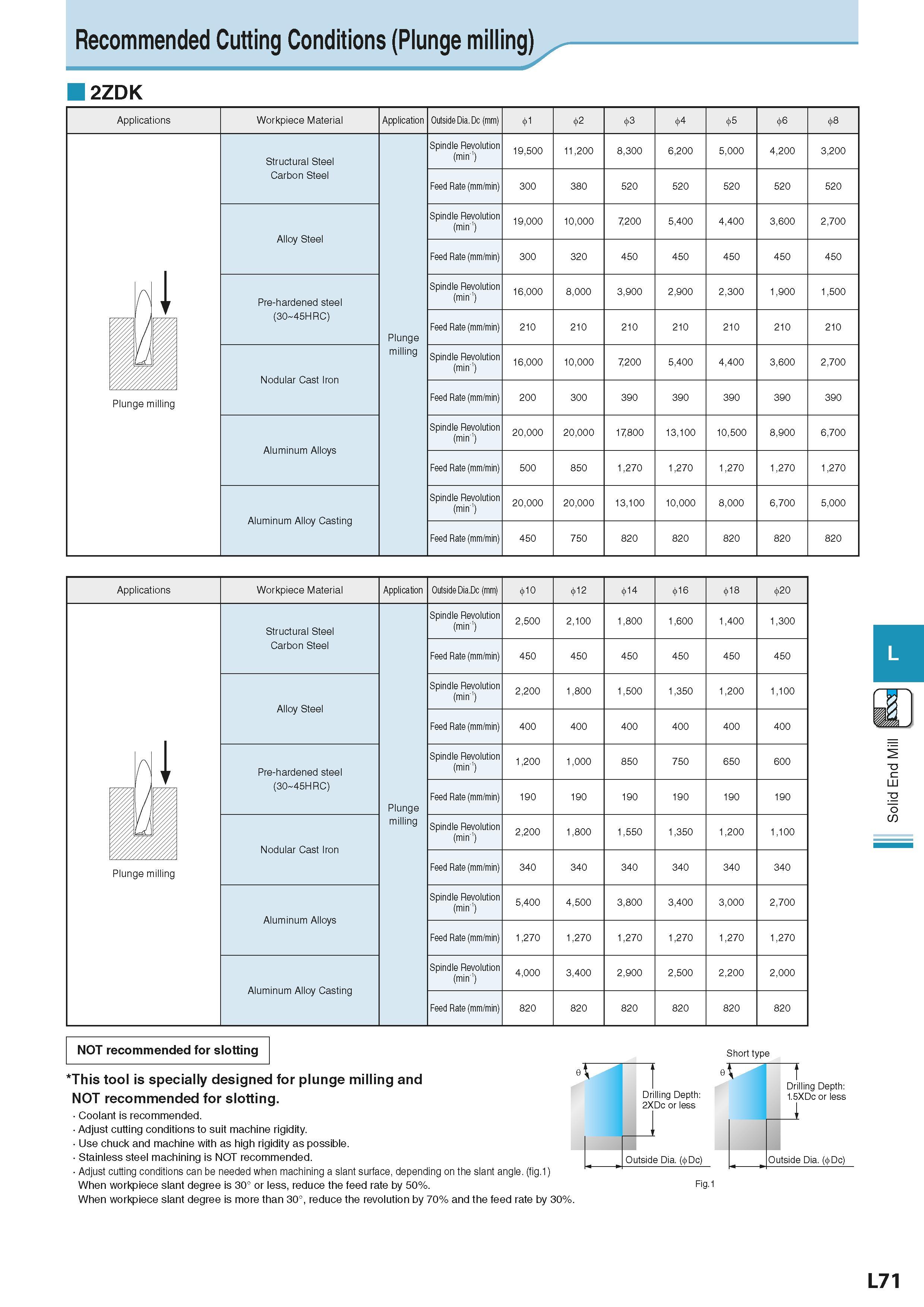

Recommended Cutting Conditions (Plunge milling) 2ZDK Applications Workpiece Material Application Outside Dia. Dc (mm) 1 2 3 4 5 6 8 Structural Steel Carbon Steel Plunge milling Spindle Revolution (min-1) 19,500 11,200 8,300 6,200 5,000 4,200 3,200 Feed Rate (mm/min) 300 380 520 520 520 520 520 Alloy Steel Spindle Revolution (min-1) 19,000 10,000 7200 5,400 4,400 3,600 2,700 Feed Rate (mm/min) 300 320 450 450 450 450 450 u Pre-hardened steel (30 45HRC) Spindle Revolution (min-1) 16,000 8,000 3,900 2,900 2,300 1,900 1,500 Feed Rate (mm/min) 210 210 210 210 210 210 210 1 Nodular Cast Iron Spindle Revolution (min-1) 16,000 10,000 7200 5,400 4,400 3,600 2,700 V /Z Plunge milling Feed Rate (mm/min) 200 300 390 390 390 390 390 Aluminum Alloys Spindle Revolution (min-1) 20,000 20,000 17800 13,100 10,500 8,900 6,700 Feed Rate (mm/min) 500 850 1,270 1,270 1,270 1,270 1,270 Aluminum Alloy Casting Spindle Revolution (min-1) 20,000 20,000 13,100 10,000 8,000 6,700 5,000 Feed Rate (mm/min) 450 750 820 820 820 820 820 Applications 1 Plunge milling Workpiece Material Structural Steel Carbon Steel Alloy Steel Pre-hardened steel (30 45HRC) Nodular Cast Iron Aluminum Alloys Aluminum Alloy Casting Application Plunge milling Outside Dia.Dc (mm) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) Spindle Revolution (min-1) Feed Rate (mm/min) 10 400 1,200 340 5,400 820 12 400 1,000 340 4,500 820 14 400 850 340 3,800 820 16 400 750 340 3,400 820 400 650 340 3,000 820 20 400 600 340 2,700 820 450 450 450 450 450 450 NOT recommended for slotting This tool is specially designed for plunge milling and NOT recommended for slotting. Coolant is recommended. Adjust cutting conditions to suit machine rigidity. Use chuck and machine with as high rigidity as possible. Stainless steel machining is NOT recommended. Adjust cutting conditions can be needed when machining a slant surface, depending on the slant angle. (fig.1) When workpiece slant degree is 30° or less, reduce the feed rate by 50%. When workpiece slant degree is more than 30°, reduce the revolution by 70% and the feed rate by 30%. Short type L71 Solid End Mill
