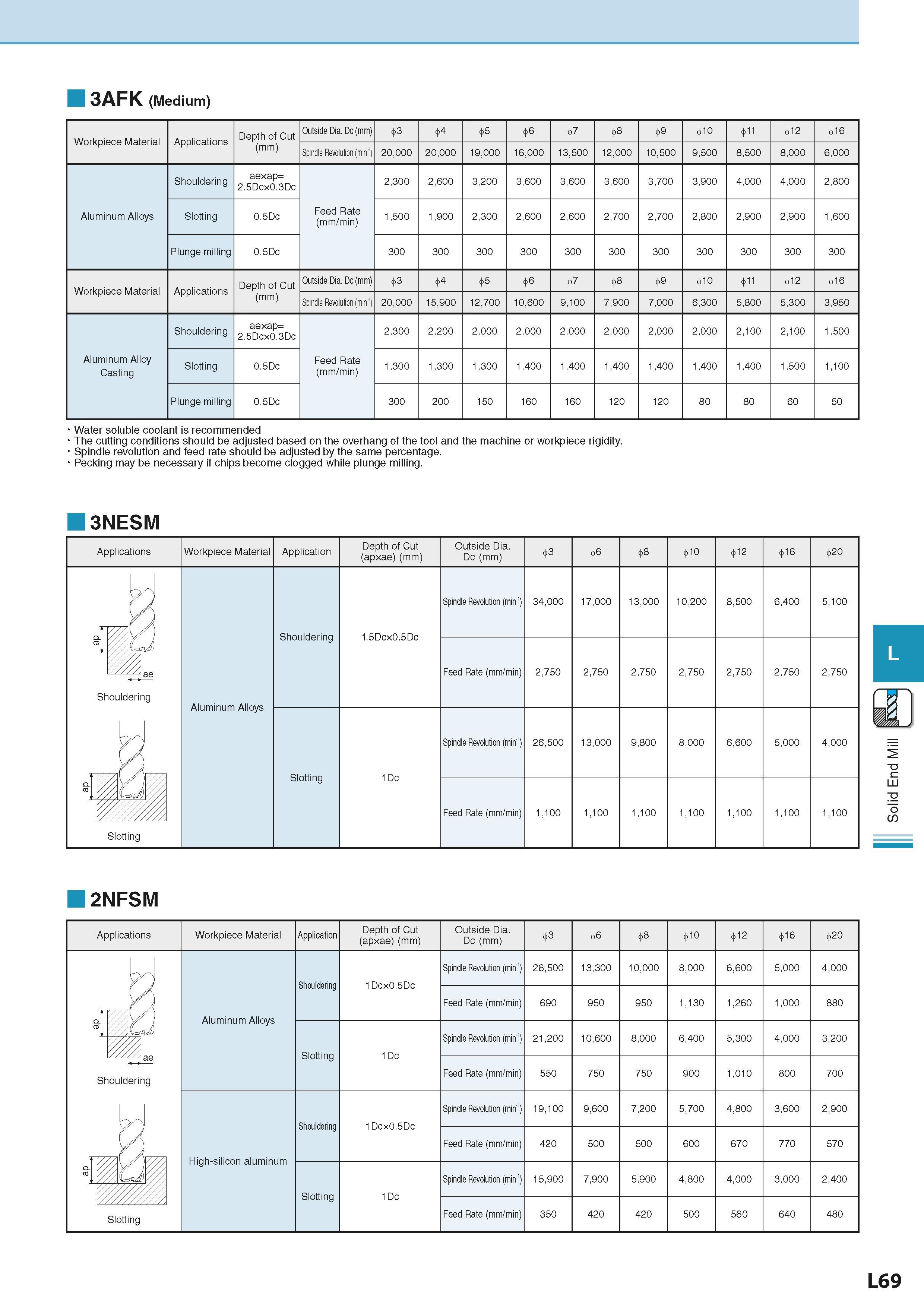

3AFK (Medium) Workpiece Material Applications Depth of Cut (mm) Outside Dia. Dc (mm) 3 4 5 6 7 8 9 10 11 12 16 Spindle Revolution (min'1) 20,000 20,000 19,000 16,000 13,500 12,000 10,500 9,500 8,500 8,000 6,000 Aluminum Alloys Shouldering aexap= 2.5Dcx0.3Dc Feed Rate (mm/min) 2,300 2,600 3,200 3,600 3,600 3,600 3,700 3,900 4,000 4,000 2,800 Slotting 0.5Dc 1,500 1,900 2,300 2,600 2,600 2,700 2,700 2,800 2,900 2,900 1,600 Plunge milling 0.5Dc 300 300 300 300 300 300 300 300 300 300 300 Workpiece Material Applications Depth of Cut (mm) Outside Dia. Dc (mm) 3 4 5 6 7 8 9 10 11 12 16 Spindle Revolution (min-1) 20,000 15,900 12,700 10,600 9,100 7,900 7,000 6,300 5,800 5,300 3,950 Aluminum Alloy Casting Shouldering aexap= 2.5Dcx0.3Dc Feed Rate (mm/min) 2,300 2,200 2,000 2,000 2,000 2,000 2,000 2,000 2,100 2,100 1,500 Slotting 0.5Dc 1,300 1,300 1,300 1,400 1,400 1,400 1,400 1,400 1,400 1,500 1,100 Plunge milling 0.5Dc 300 200 150 160 160 120 120 80 80 60 50 Water soluble coolant is recommended The cutting conditions should be adjusted based on the overhang of the tool and the machine or workpiece rigidity. Spindle revolution and feed rate should be adjusted by the same percentage. Pecking may be necessary if chips become clogged while plunge milling. 3NESM Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 3 10 12 16 20 Spindle Revolution (min-1) Shouldering 1.5Dcx0.5Dc ae Shouldering Feed Rate (mm/min) 2,750 2,750 2,750 2,750 2,750 2,750 2,750 Aluminum Alloys Spindle Revolution (min-1) Slotting 1Dc Feed Rate (mm/min) 1,100 1,100 1,100 1,100 1,100 1,100 1,100 Slotting 2NFSM Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 12 16 20 ae Shouldering Slotting Spindle Revolution (min-1) 26,500 13,300 10,000 8,000 6,600 5,000 Shouldering 1Dcx0.5Dc Feed Rate (mm/min) 690 950 950 1,130 1,260 1,000 Aluminum Alloys Spindle Revolution (min-1) Slotting 1Dc Feed Rate (mm/min) Spindle Revolution (min-1) 19,100 9,600 7,200 5,700 4,800 3,600 Shouldering 1Dcx0.5Dc Feed Rate (mm/min) 420 500 500 600 670 770 High-silicon aluminum Spindle Revolution (min-1) Slotting 1Dc Feed Rate (mm/min) 4,000 880 2,900 570 550 750 750 900 800 700 350 420 420 500 560 640 480 L69 Solid End Mill
