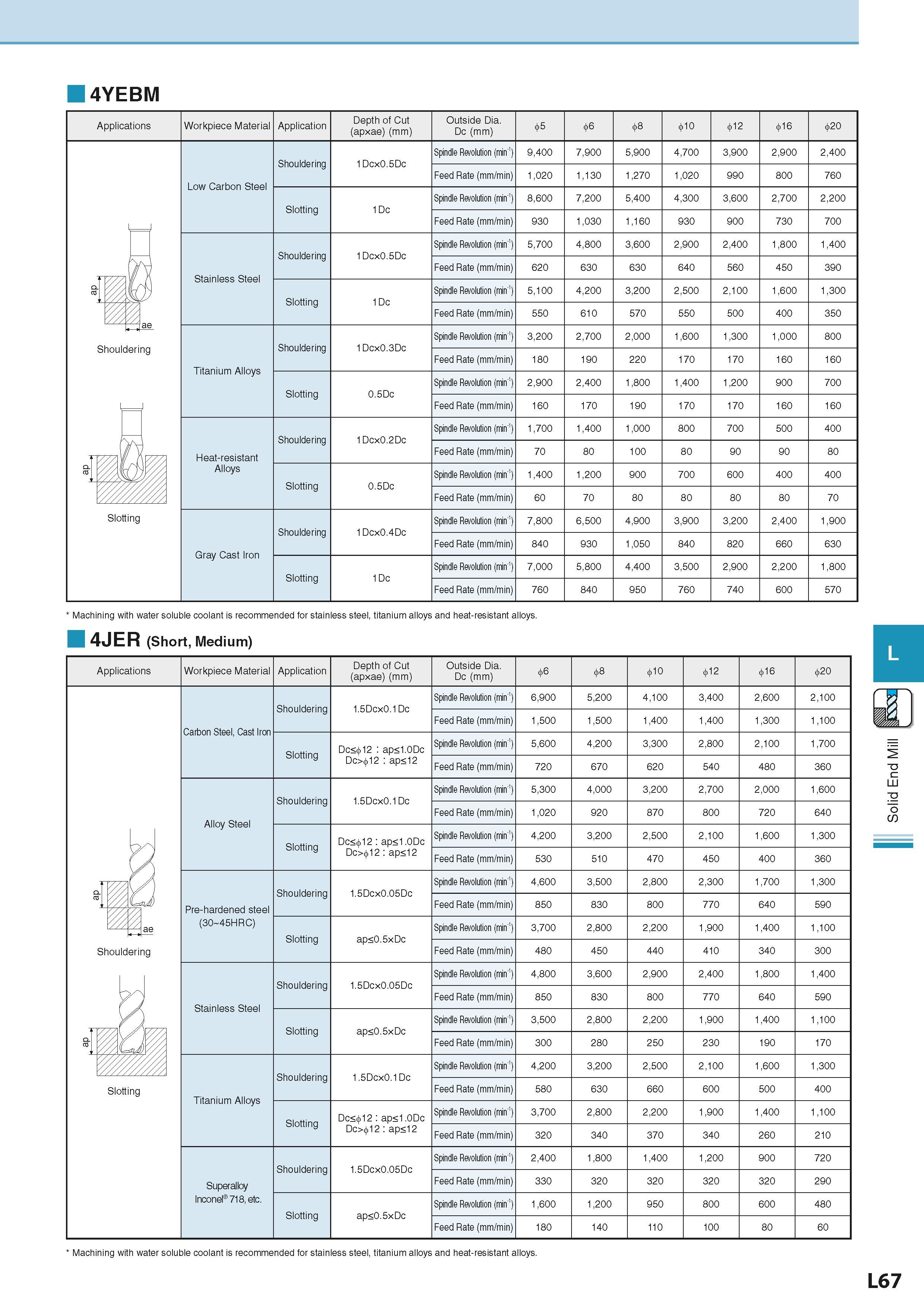

4YEBM Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 5 6 8 10 12 16 20 Low Carbon Steel Shouldering 1Dcx0.5Dc Spindle Revolution (min-1) 9,400 7,900 5,900 4,700 3,900 2,900 2,400 Feed Rate (mm/min) 1,020 1,130 1,270 1,020 990 800 760 Slotting 1Dc Spindle Revolution (min-1) 8,600 7,200 5,400 4,300 3,600 2,700 2,200 J Feed Rate (mm/min) 930 1,030 1,160 930 900 730 700 Stainless Steel Shouldering 1Dcx0.5Dc Spindle Revolution (min-1) 5,700 4,800 3,600 2,900 2,400 1,800 1,400 'Vi Feed Rate (mm/min) 620 630 630 640 560 450 390 CC e Slotting 1Dc Spindle Revolution (min-1) 5,100 4,200 3,200 2,500 2,100 1,600 1,300 Feed Rate (mm/min) 550 610 570 550 500 400 350 Titanium Alloys Shouldering 1Dcx0.3Dc Spindle Revolution (min-1) 3,200 2,700 2,000 1,600 1,300 1,000 800 Shouldering Feed Rate (mm/min) 180 190 220 170 170 160 160 Slotting 0.5Dc Spindle Revolution (min-1) 2,900 2,400 1,800 1,400 1,200 900 700 1 2 Feed Rate (mm/min) 160 170 190 170 170 160 160 Heat-resistant Alloys Shouldering 1Dcx0.2Dc Spindle Revolution (min-1) 1,700 1,400 1,000 800 700 500 400 Feed Rate (mm/min) 70 80 100 80 90 90 80 ra if Slotting 0.5Dc Spindle Revolution (min-1) 1,400 1,200 900 700 600 400 400 Feed Rate (mm/min) 60 70 80 80 80 80 70 Slotting Gray Cast Iron Shouldering 1Dcx0.4Dc Spindle Revolution (min-1) 7,800 6,500 4,900 3,900 3,200 2,400 1,900 Feed Rate (mm/min) 840 930 1,050 840 820 660 630 Slotting 1Dc Spindle Revolution (min-1) 7,000 5,800 4,400 3,500 2,900 2,200 1,800 Feed Rate (mm/min) 760 840 950 760 740 600 570 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. 4JER (Short, Medium) Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 10 12 16 20 :ae Shouldering Slotting Shouldering 1.5Dcx0.1Dc Spindle Revolution (min'1) 6,900 5,200 4,100 3,400 Carbon Steel, Cast Iron Feed Rate (mm/min) 1,500 1,500 1,400 1,400 Slotting Dc< 12 ap<1.0Dc Dc> 12 ap<12 Spindle Revolution (min’1) 5,600 4,200 3,300 2,800 Feed Rate (mm/min) 720 670 620 540 Shouldering 1.5Dcx0.1Dc Spindle Revolution (min-1) Alloy Steel Feed Rate (mm/min) Slotting Dc< 12 ap<1.0Dc Dc> 12 ap<12 Spindle Revolution (min-1) Feed Rate (mm/min) Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) Pre-hardened steel (30 45HRC) Feed Rate (mm/min) 850 830 800 770 Slotting ap<0.5xDc Spindle Revolution (min-1) 3,700 2,800 2,200 1,900 Feed Rate (mm/min) 480 450 440 410 Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 4,800 3,600 2,900 2,400 Stainless Steel Feed Rate (mm/min) 850 830 800 770 Slotting ap<0.5xDc Spindle Revolution (min-1) Feed Rate (mm/min) Shouldering 1.5Dcx0.1Dc Spindle Revolution (min-1) Titanium Alloys Feed Rate (mm/min) Slotting Dc< 12 ap<1.0Dc Dc> 12 ap<12 Spindle Revolution (min-1) Feed Rate (mm/min) Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 2,400 1,800 1,400 1,200 Superalloy Inconel 718, etc. Feed Rate (mm/min) 330 320 320 320 Slotting ap<0.5xDc Spindle Revolution (min-1) 1,600 1,200 950 800 Feed Rate (mm/min) 180 140 110 100 2,600 1,300 2,100 480 640 1,400 340 1,800 640 900 320 600 80 2,100 1,100 1,700 360 590 1,100 300 1,400 590 720 290 480 60 920 870 800 720 640 530 470 450 400 360 300 280 250 230 580 630 660 600 500 400 320 340 370 340 260 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. L67 Solid End Mill
