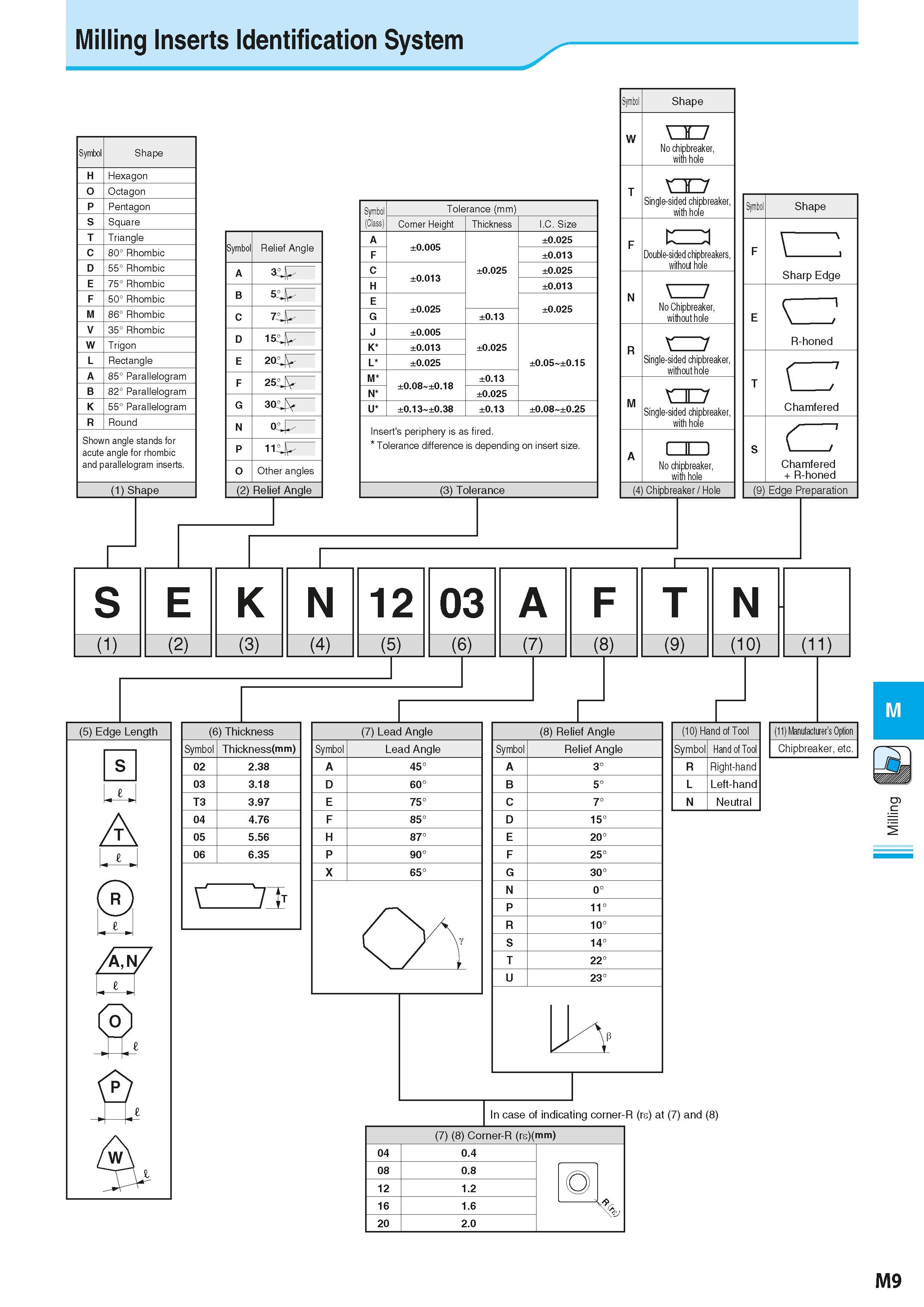

Milling Inserts Identification System Symbol Shape H Hexagon O Octagon P Pentagon S Square T Triangle C 80° Rhombic D 55° Rhombic E 75° Rhombic F 50° Rhombic M 86° Rhombic V 35° Rhombic W Trigon L Rectangle A 85° Parallelogram B 82° Parallelogram K 55° Parallelogram R Round Shown angle stands for acute angle for rhombic and parallelogram inserts. (1) Shape Symbo Relief Angle A 3 B C D 15 E 20° F 25°-F G N 0 P 11°4- O Other angles (2) Relief Angle Symbol (Class) Tolerance (mm) Corner Height Thickness I.C. Size A ±0.005 ±0.025 ±0.025 F ±0.013 C ±0.013 ±0.025 H ±0.013 E ±0.025 ±0.025 G ±0.13 J ±0.005 ±0.025 ±0.05 ±0.15 K ±0.013 L ±0.025 M ±0.08 ±0.18 ±0.13 N ±0.025 U ±0.13 ±0.38 ±0.13 ±0.08 ±0.25 Insert's periphery is as fired. Tolerance difference is depending on insert size. (3) Tolerance Symbol Shape W \ If / No chipbreaker, with hole T rT7 Single-sided chipbreaker, with hole F Double-sided chipbreakers, without hole N \ / No Chipbreaker, without hole R Y 7 Single-sided chipbreaker, withouthole M vm Single-sided chipbreaker, with hole A 1 II ) No chipbreaker, with hole (4) Chipbreaker / Hole Symbol Shape F \ Sharp Edge E \ R-honed T ( Chamfered S r / Chamfered + R-honed (9) Edge Preparation S E K N 12 03 A F T N (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (5) Edge Length S A s M (6) Thickness Symbol Thickness(mm) 02 2.38 03 3.18 T3 3.97 04 4.76 05 5.56 06 6.35 r "i (7) Lead Angle Symbol Lead Angle A 45° D 60° E 75° F 85° H 87° P 90° X 65° c y) (8) Relief Angle Symbol Relief Angle A 3° B 5° C 7° D 15° E 20° F 25° G 30° N 0° P 11° R 10° S 14° T 22° U 23° (10) Hand of Tool Symbol Hand of Tool R Right-hand L Left-hand N Neutral (11) Manufacturer’s Option Chipbreaker, etc. In case of indicating corner-R (rs) at (7) and (8) (7) (8) Corner-R (rs)(mm) 04 0.4 08 0.8 o 12 1.2 16 1.6 20 2.0 M9
