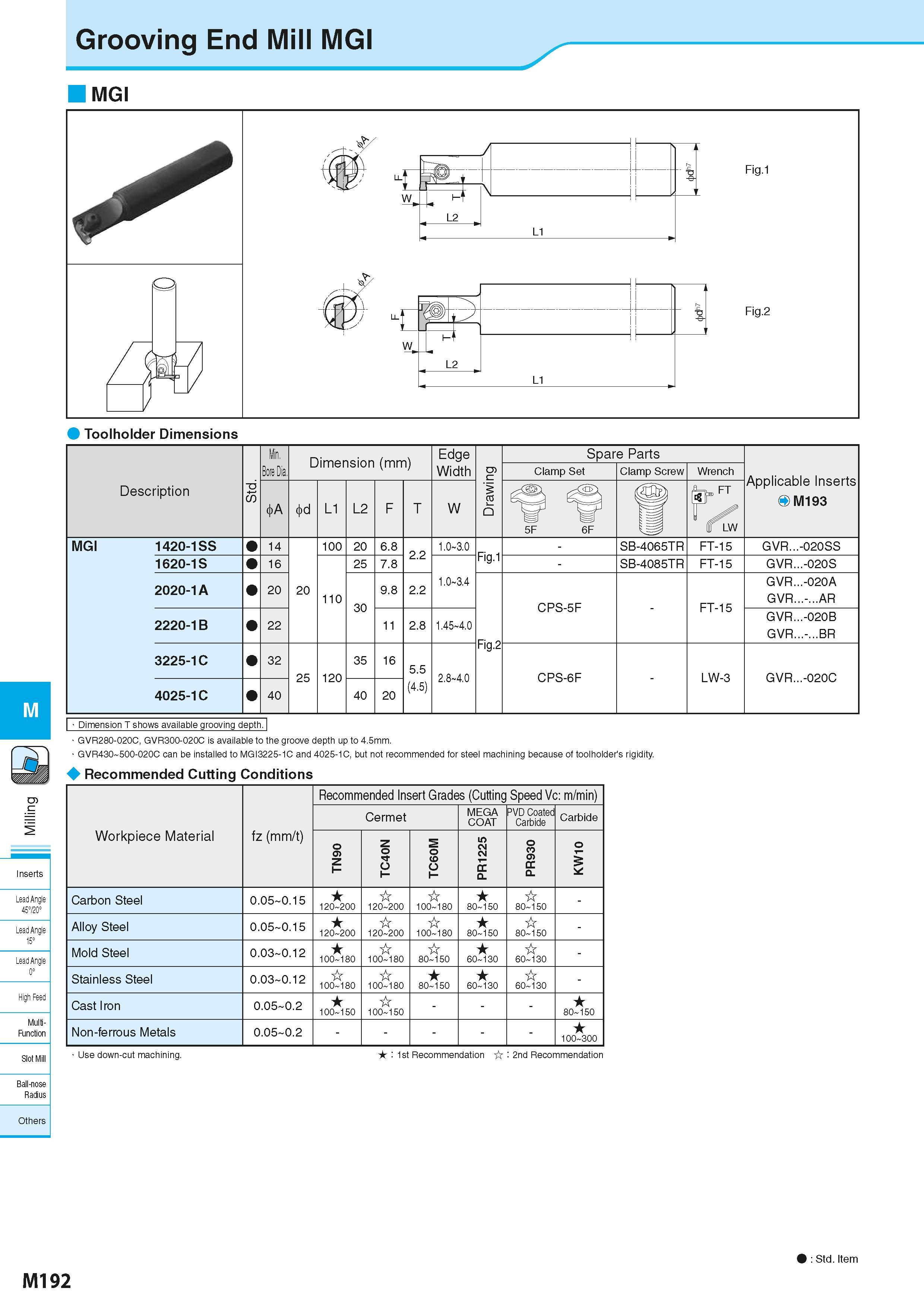

Grooving End Mill MGI M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius MGI Toolholder Dimensions GVR430 500-020C can be installed to MGI3225-1C and 4025-1C, but not recommended for steel machining because of toolholder's rigidity. Recommended Cutting Conditions Workpiece Material fz (mm/t) Recommended Insert Grades (Cutting Speed Vc: m/min) Cermet MEGA COAT PVD Coated Carbide Carbide TN90 TC40N TC60M PR1225 PR930 KW10 Carbon Steel 0.05 0.15 120 200 120 200 100 180 80 150 80 150 - Alloy Steel 0.05 0.15 120 200 120 200 100 180 80 150 80 150 - Mold Steel 0.03 0.12 100 180 100 180 80 150 60 130 60 130 - Stainless Steel 0.03 0.12 100 180 100 180 80 150 60 130 60 130 - Cast Iron 0.05 0.2 100 150 100 150 - 80 150 Non-ferrous Metals 0.05 0.2 - 100 300 Use down-cut machining. 1st Recommendation 2nd Recommendation M192 Std. Item
