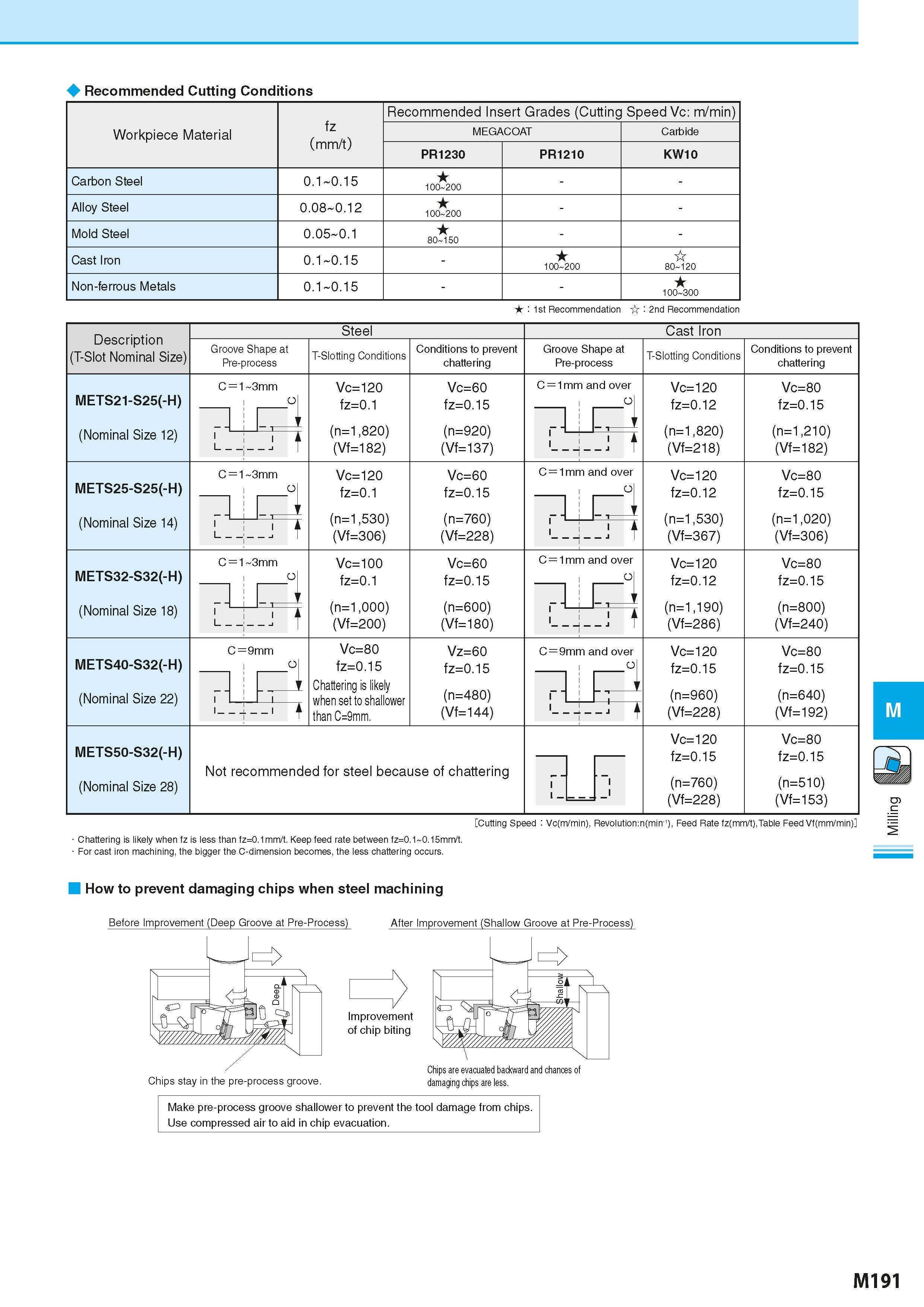

877 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M191

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M191 0877 Lab2u

Recommended Cutting Conditions fz (mm/t) Recommended Insert Grades (Cutting Speed Vc: m/min) Workpiece Material MEGACOAT Carbide PR1230 PR1210 KW10 Carbon Steel 0.1 0.15 100 200 Alloy Steel 0.08 0.12 100 200 Mold Steel 0.05 0.1 80 150 Cast Iron 0.1 0.15 - 100 200 80 120 Non-ferrous Metals 0.1 0.15 100 300 1st Recommendation 2nd Recommendation Description (T-Slot Nominal Size) Steel Groove Shape at Pre-process T-Slotting Conditions Conditions to prevent chattering Cast Iron Groove Shape at Pre-process T-Slotting Conditions Conditions to prevent chattering METS21-S25(-H) (Nominal Size 12) C = 1 3mm Vc=120 fz=0.1 (n=1,820) (Vf=182) Vc=60 fz=0.15 (n=920) (Vf=137) C = 1mm and over O Vc=120 fz=0.12 (n=1,820) (Vf=218) Vc=80 fz=0.15 (n=1,210) (Vf=182) METS25-S25(-H) (Nominal Size 14) C = 1 3mm Vc=120 fz=0.1 (n=1,530) (Vf=306) Vc=60 fz=0.15 (n=760) (Vf=228) C = 1mm and over C Vc=120 fz=0.12 (n=1,530) (Vf=367) Vc=80 fz=0.15 (n=1,020) (Vf=306) METS32-S32(-H) (Nominal Size 18) C = 1 3mm Vc=100 fz=0.1 (n=1,000) (Vf=200) Vc=60 fz=0.15 (n=600) (Vf=180) C= 1mm and over C Vc=120 fz=0.12 (n=1,190) (Vf=286) Vc=80 fz=0.15 (n=800) (Vf=240) METS40-S32(-H) (Nominal Size 22) C=9mm Vc=80 fz=0.15 Chattering is likely when set to shallower than C=9mm. Vz=60 fz=0.15 (n=480) (Vf=144) C = 9mm and ove C Vc=120 fz=0.15 (n=960) (Vf=228) Vc=80 fz=0.15 (n=640) (Vf=192) METS50-S32(-H) (Nominal Size 28) Not recommended for steel because of chattering Vc=120 fz=0.15 (n=760) (Vf=228) Vc=80 fz=0.15 (n=510) (Vf=153) Cutting Speed Vc(m/min), Revolution:n(min 1), Feed Rate fz(mm/t),Table Feed Vf(mm/min) Chattering is likely when fz is less than fz=0.1mm/t. Keep feed rate between fz=0.1 0.15mm/t. For cast iron machining, the bigger the C-dimension becomes, the less chattering occurs. How to prevent damaging chips when steel machining Make pre-process groove shallower to prevent the tool damage from chips. Use compressed air to aid in chip evacuation. M191
