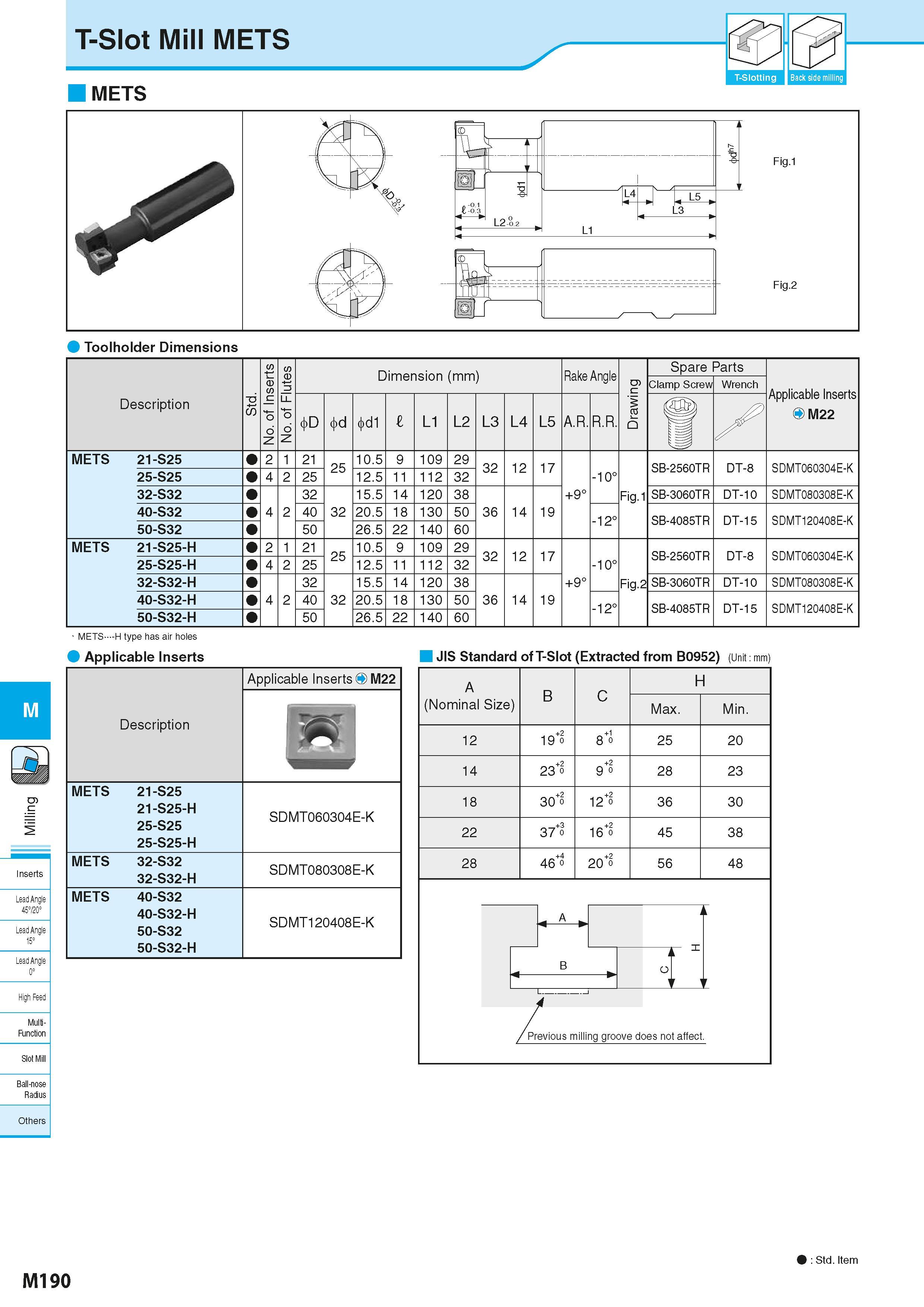

T-Slot Mill METS METS 0 T-Slotting Back side milling Toolholder Dimensions Description -6 55 No. of Inserts No. of Flutes Dimension (mm) Размеры инструмента указаны в мм Rake Angle Drawing Spare Parts Applicable Inserts OM22 Clamp Screw Wrench CL fd1 I L1 L2 L3 L4 L5 A.R. R.R. u METS 21-S25 2 i 21 25 10.5 9 109 29 32 12 17 + CD o -10° Fig.1 SB-2560TR DT-8 SDMT060304E-K 25-S25 4 2 25 12.5 11 112 32 32-S32 4 2 32 32 15.5 14 120 38 36 14 19 SB-3060TR DT-10 SDMT080308E-K 40-S32 40 20.5 18 130 50 -12° SB-4085TR DT-15 SDMT120408E-K 50-S32 50 26.5 22 140 60 METS 21-S25-H 2 1 21 25 10.5 9 109 29 32 12 17 + CD o -10° Fig.2 SB-2560TR DT-8 SDMT060304E-K 25-S25-H 4 2 25 12.5 11 112 32 32-S32-H 4 2 32 32 15.5 14 120 38 36 14 19 SB-3060TR DT-10 SDMT080308E-K 40-S32-H 40 20.5 18 130 50 -12° SB-4085TR DT-15 SDMT120408E-K 50-S32-H 50 26.5 22 140 60 Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Ball-nose Radius METS H type has air holes Applicable Inserts Description Applicable Inserts 4 M22 METS 21-S25 21-S25-H 25-S25 25-S25-H SDMT060304E-K METS 32-S32 32-S32-H SDMT080308E-K METS 40-S32 40-S32-H 50-S32 50-S32-H SDMT120408E-K JIS Standard of T-Slot (Extracted from B0952) (Unit mm) A (Nominal Size) B C H Max. Min. 12 19+2 8+1 25 20 14 23+2 9+2 28 23 18 30+2 12+2 36 30 22 37+° 16+2 45 38 28 46+° 20+2 56 48 B ii o u Previous milling groove does not affect. A Slot Mi M190 Std. Item
