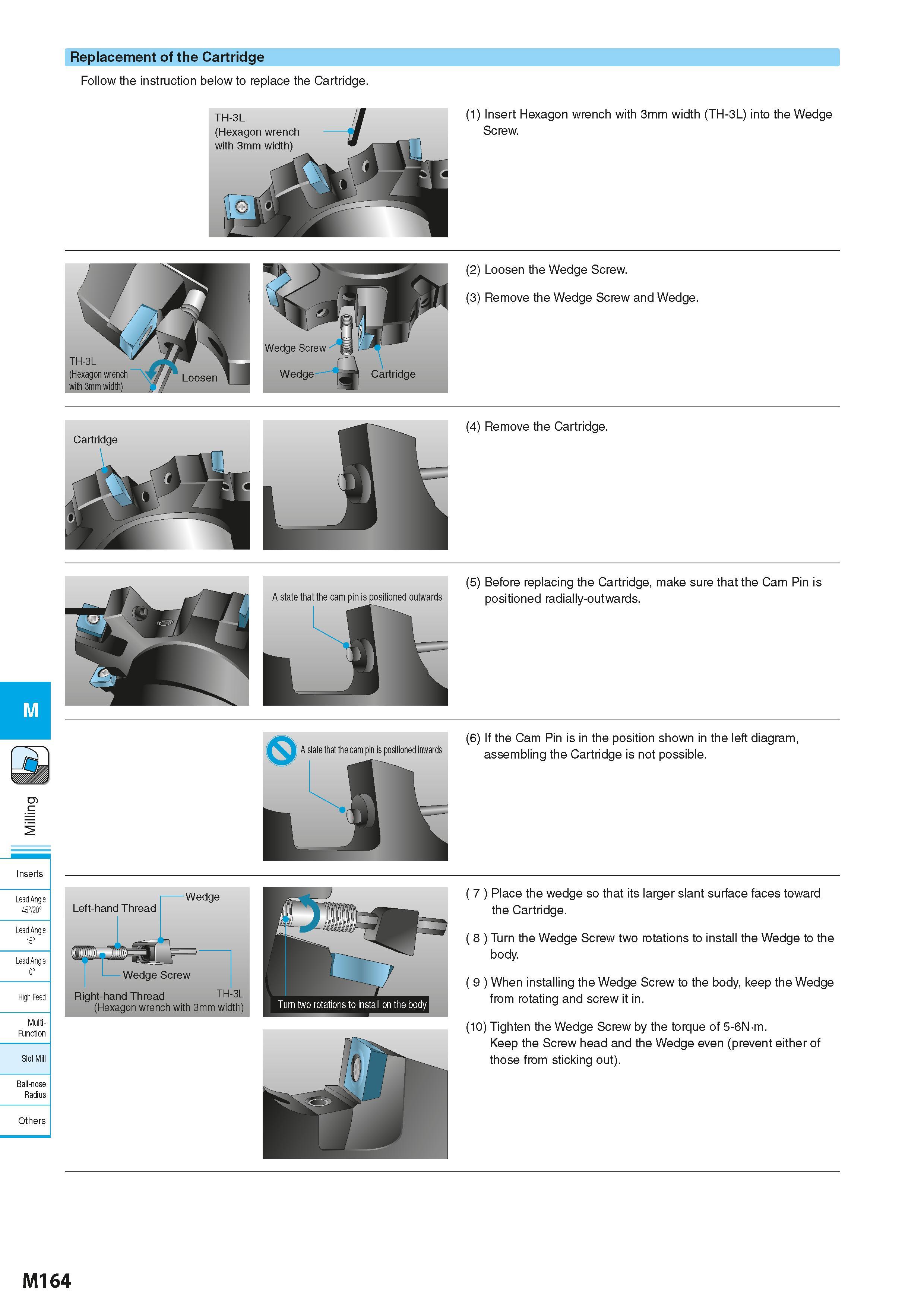

M Inserts Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° High Feed Multi- Function Slot Mill Ball-nose Radius Replacement of the Cartridge Follow the instruction below to replace the Cartridge. (1) Insert Hexagon wrench with 3mm width (TH-3L) into the Wedge Screw. (2) Loosen the Wedge Screw. (3) Remove the Wedge Screw and Wedge. Wedge Screw Wedge Cartridge (4) Remove the Cartridge. (5) Before replacing the Cartridge, make sure that the Cam Pin is A state that the cam pin is positioned outwards positioned radially-outwards. A state that the cam pin is positioned inwards (6) If the Cam Pin is in the position shown in the left diagram, assembling the Cartridge is not possible. Left-hand Thread Wedge r Wedge Screw Right-hand Thread TH-3i (Hexagon wrench with 3mm width) Turn two rotations to install on the body ( 7 ) Place the wedge so that its larger slant surface faces toward the Cartridge. ( 8 ) Turn the Wedge Screw two rotations to install the Wedge to the body. ( 9 ) When installing the Wedge Screw to the body, keep the Wedge from rotating and screw it in. (10) Tighten the Wedge Screw by the torque of 5-6Nm. Keep the Screw head and the Wedge even (prevent either of those from sticking out). TH-3L (Hexagon wrench with 3mm width) Cartridge M164
