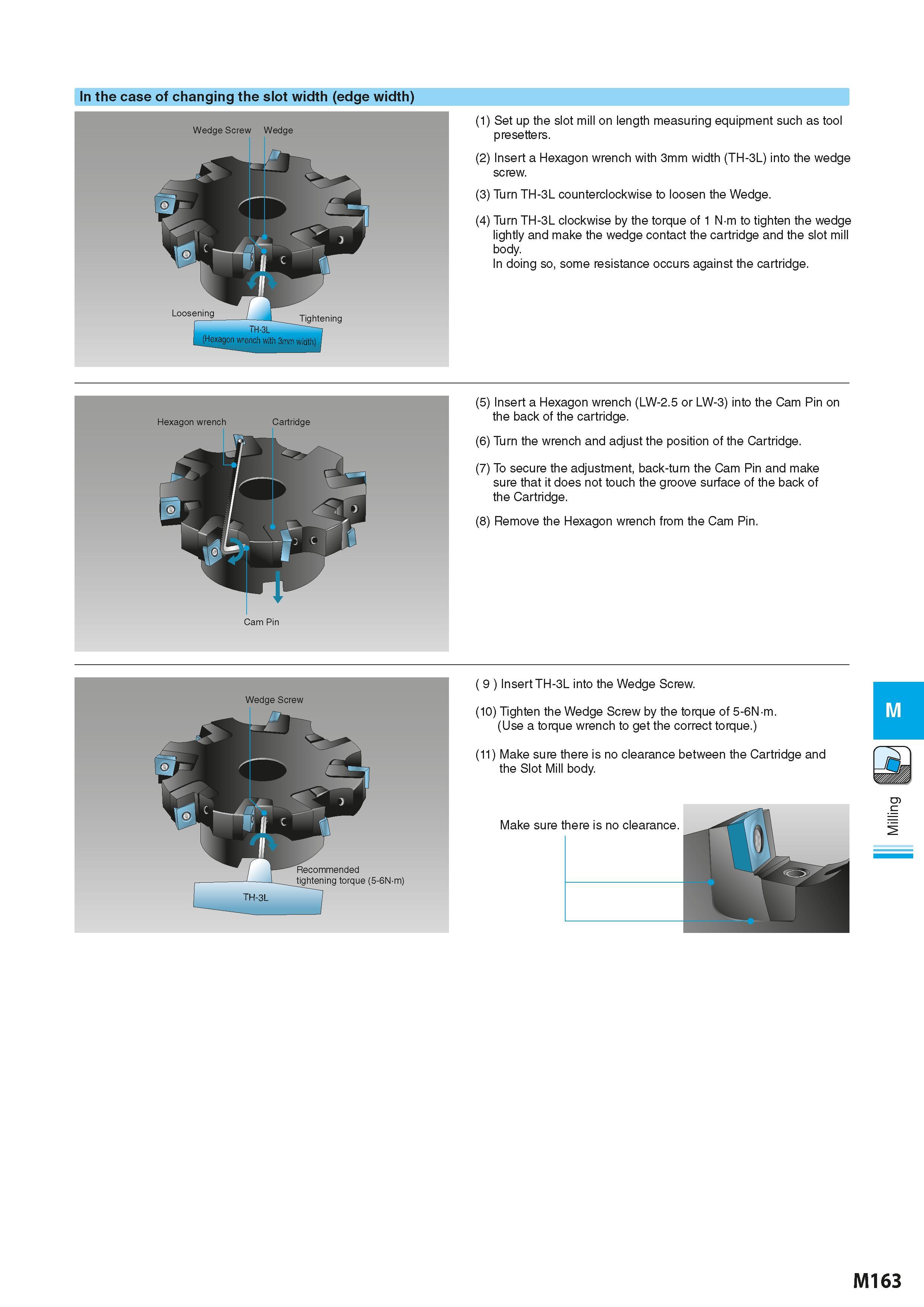

In the case of changing the slot width (edge width) Wedge Screw Wedge (1) Set up the slot mill on length measuring equipment such as tool presetters. (2) Insert a Hexagon wrench with 3mm width (TH-3L) into the wedge screw. (3) Turn TH-3L counterclockwise to loosen the Wedge. (4) Turn TH-3L clockwise by the torque of 1 N-m to tighten the wedge lightly and make the wedge contact the cartridge and the slot mill body. In doing so, some resistance occurs against the cartridge. Hexagon wrench Cartridge (5) Insert a Hexagon wrench (LW-2.5 or LW-3) into the Cam Pin on the back of the cartridge. (6) Turn the wrench and adjust the position of the Cartridge. (7) To secure the adjustment, back-turn the Cam Pin and make sure that it does not touch the groove surface of the back of the Cartridge. (8) Remove the Hexagon wrench from the Cam Pin. Cam Pin Wedge Screw Recommended tightening torque (5-6N-m) ( 9 ) Insert TH-3L into the Wedge Screw. (10) Tighten the Wedge Screw by the torque of 5-6Nm. (Use a torque wrench to get the correct torque.) (11) Make sure there is no clearance between the Cartridge and the Slot Mill body. Make sure there is no clearance. M163
