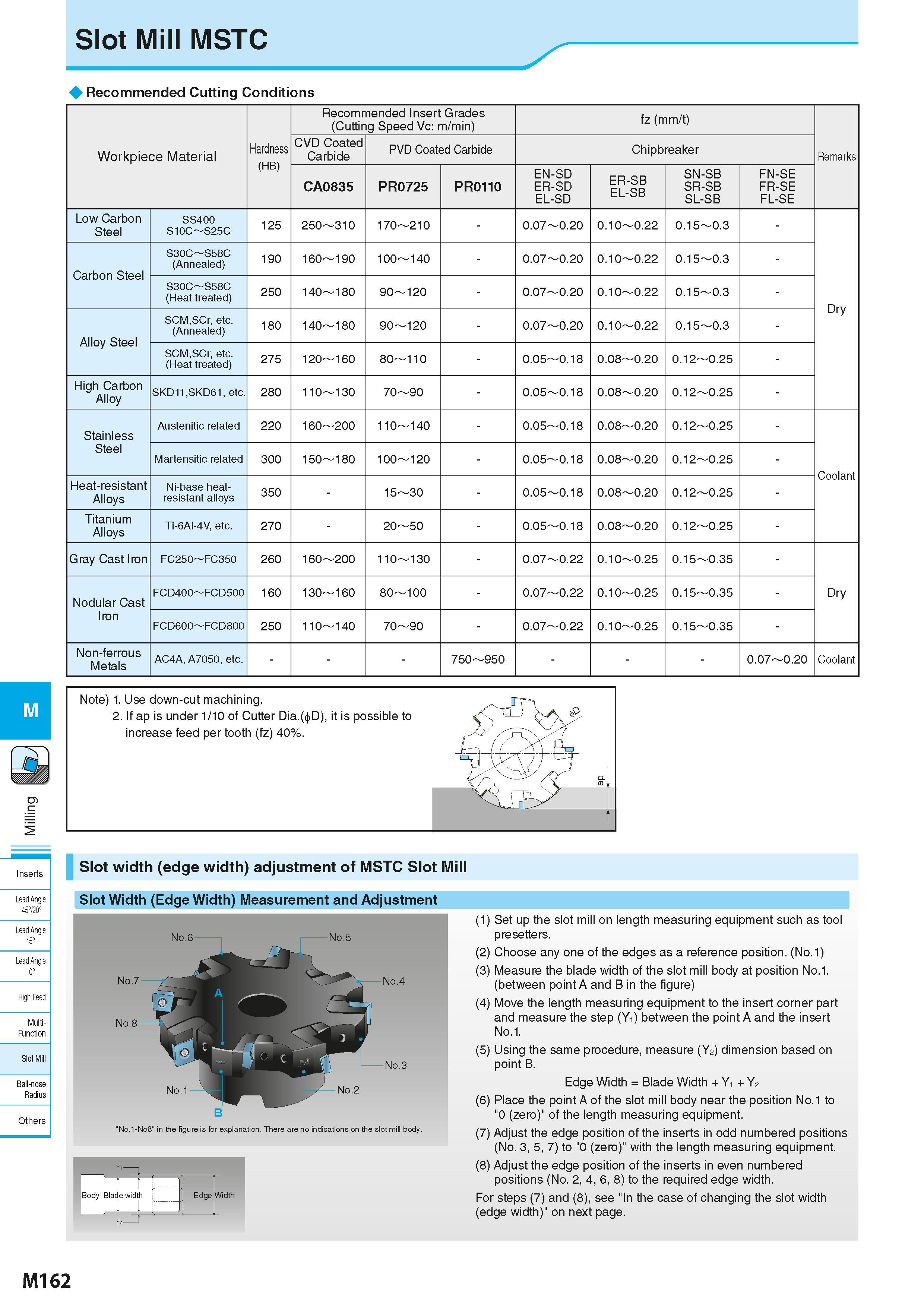

M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° High Feec Multi- Function Slot Mill Ball-nose Radius Slot Mill MSTC Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: m/min) fz (mm/t) Workpiece Material Hardness (HB) CVD Coated Carbide PVD Coated Carbide Chipbreaker Remarks CA0835 PR0725 PR0110 EN-SD ER-SD EL-SD ER-SB EL-SB SN-SB SR-SB SL-SB FN-SE FR-SE FL-SE Low Carbon Steel SS400 S10C S25C 125 250 310 170 210 - 0.07 0.20 0.10 0.22 0.15 0.3 - Carbon Steel S30C S58C (Annealed) 190 160 190 100 140 - 0.07 0.20 0.10 0.22 0.15 0.3 - S30C S58C (Heat treated) 250 140 180 90 120 - 0.07 0.20 0.10 0.22 0.15 0.3 - Dry Alloy Steel SCM,SCr, etc. (Annealed) 180 140 180 90 120 - 0.07 0.20 0.10 0.22 0.15 0.3 - SCM,SCr, etc. (Heat treated) 275 120 160 80 110 - 0.05 0.18 0.08 0.20 0.12 0.25 - High Carbon Alloy SKD11,SKD61, etc. 280 110 130 70 90 - 0.05 0.18 0.08 0.20 0.12 0.25 - Stainless Austenitic related 220 160 200 110 140 - 0.05 0.18 0.08 0.20 0.12 0.25 - Steel Martensitic related 300 150 180 100 120 - 0.05 0.18 0.08 0.20 0.12 0.25 - Coolant Heat-resistant Alloys Ni-base heat-resistant alloys 350 - 15 30 - 0.05 0.18 0.08 0.20 0.12 0.25 - Titanium Alloys Ti-6Al-4V, etc. 270 - 20 50 - 0.05 0.18 0.08 0.20 0.12 0.25 - Gray Cast Iron FC250 FC350 260 160 200 110 130 - 0.07 0.22 0.10 0.25 0.15 0.35 - Nodular Cast FCD400 FCD500 160 130 160 80 100 - 0.07 0.22 0.10 0.25 0.15 0.35 - Dry Iron FCD600 FCD800 250 110 140 70 90 - 0.07 0.22 0.10 0.25 0.15 0.35 - Non-ferrous Metals AC4A, A7050, etc. - 750 950 - 0.07 0.20 Coolant Note) 1. Use down-cut machining. 2. If ap is under 1/10 of Cutter Dia.( D), it is possible to increase feed per tooth (fz) 40%. Slot width (edge width) adjustment of MSTC Slot Mill Slot Width (Edge Width) Measurement and Adjustment No.6 No.5 No.7 No.8 No.4 No.3 "No.1-No8" in the figure is for explanation. There are no indications on the slot mill body. Body Blade width r Edge Width (1) Set up the slot mill on length measuring equipment such as tool presetters. (2) Choose any one of the edges as a reference position. (No.1) (3) Measure the blade width of the slot mill body at position No.1. (between point A and B in the figure) (4) Move the length measuring equipment to the insert corner part and measure the step (Y1) between the point A and the insert No.1. (5) Using the same procedure, measure (Y2) dimension based on point B. Edge Width = Blade Width + Y1 + Y2 (6) Place the point A of the slot mill body near the position No.1 to "0 (zero)" of the length measuring equipment. (7) Adjust the edge position of the inserts in odd numbered positions (No. 3, 5, 7) to "0 (zero)" with the length measuring equipment. (8) Adjust the edge position of the inserts in even numbered positions (No. 2, 4, 6, 8) to the required edge width. For steps (7) and (8), see "In the case of changing the slot width (edge width)" on next page. B M162
