621 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.L7

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. L7 0621 Lab2u

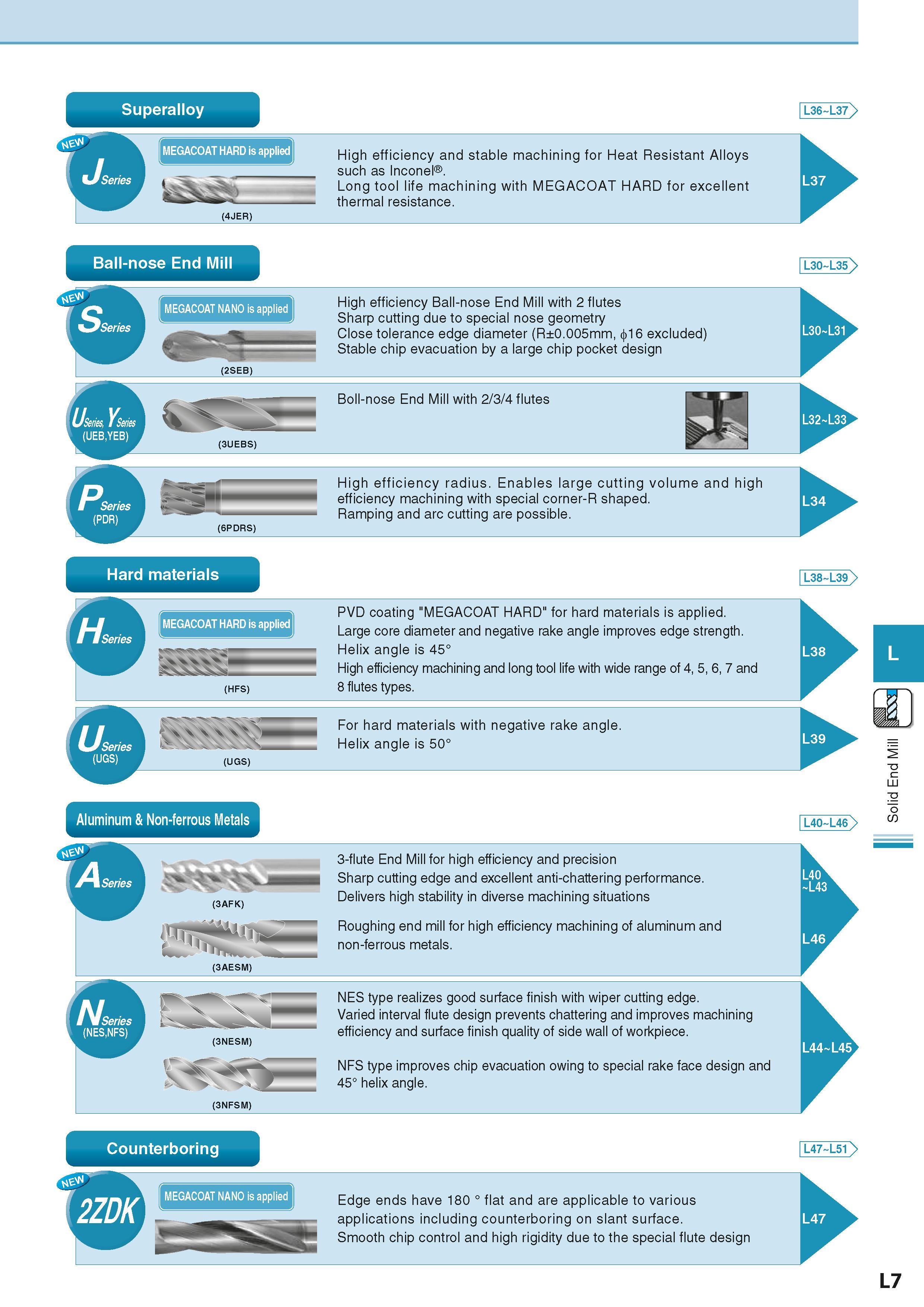

Superalloy High efficiency and stable machining for Heat Resistant Alloys such as Inconel . Long tool life machining with MEGACOAT HARD for excellent thermal resistance. (4JER) L36 L37> Ball-nose End Mill High efficiency Ball-nose End Mill with 2 flutes Sharp cutting due to special nose geometry Close tolerance edge diameter (R±0.005mm, 16 excluded) Stable chip evacuation by a large chip pocket design Boll-nose End Mill with 2/3/4 flutes High efficiency radius. Enables large cutting volume and high efficiency machining with special corner-R shaped. Ramping and arc cutting are possible. (6PDRS) L30 L35> L32 L3 L34 - Hard materials (HFS) (UGS) PVD coating "MEGACOAT HARD" for hard materials is applied. Large core diameter and negative rake angle improves edge strength. Helix angle is 45° High efficiency machining and long tool life with wide range of 4, 5, 6, 7 and 8 flutes types. For hard materials with negative rake angle. Helix angle is 50° L38 L39> Aluminum & Non-ferrous Metals L40 L46> 3-flute End Mill for high efficiency and precision Sharp cutting edge and excellent anti-chattering performance. Delivers high stability in diverse machining situations Roughing end mill for high efficiency machining of aluminum and non-ferrous metals. NES type realizes good surface finish with wiper cutting edge. Varied interval flute design prevents chattering and improves machining efficiency and surface finish quality of side wall of workpiece. NFS type improves chip evacuation owing to special rake face design and 45° helix angle. (3NFSM) Counterboring Edge ends have 180 ° flat and are applicable to various applications including counterboring on slant surface. Smooth chip control and high rigidity due to the special flute design L47 L51 ) L7 Solid End Mill
