620 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.L6

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. L6 0620 Lab2u

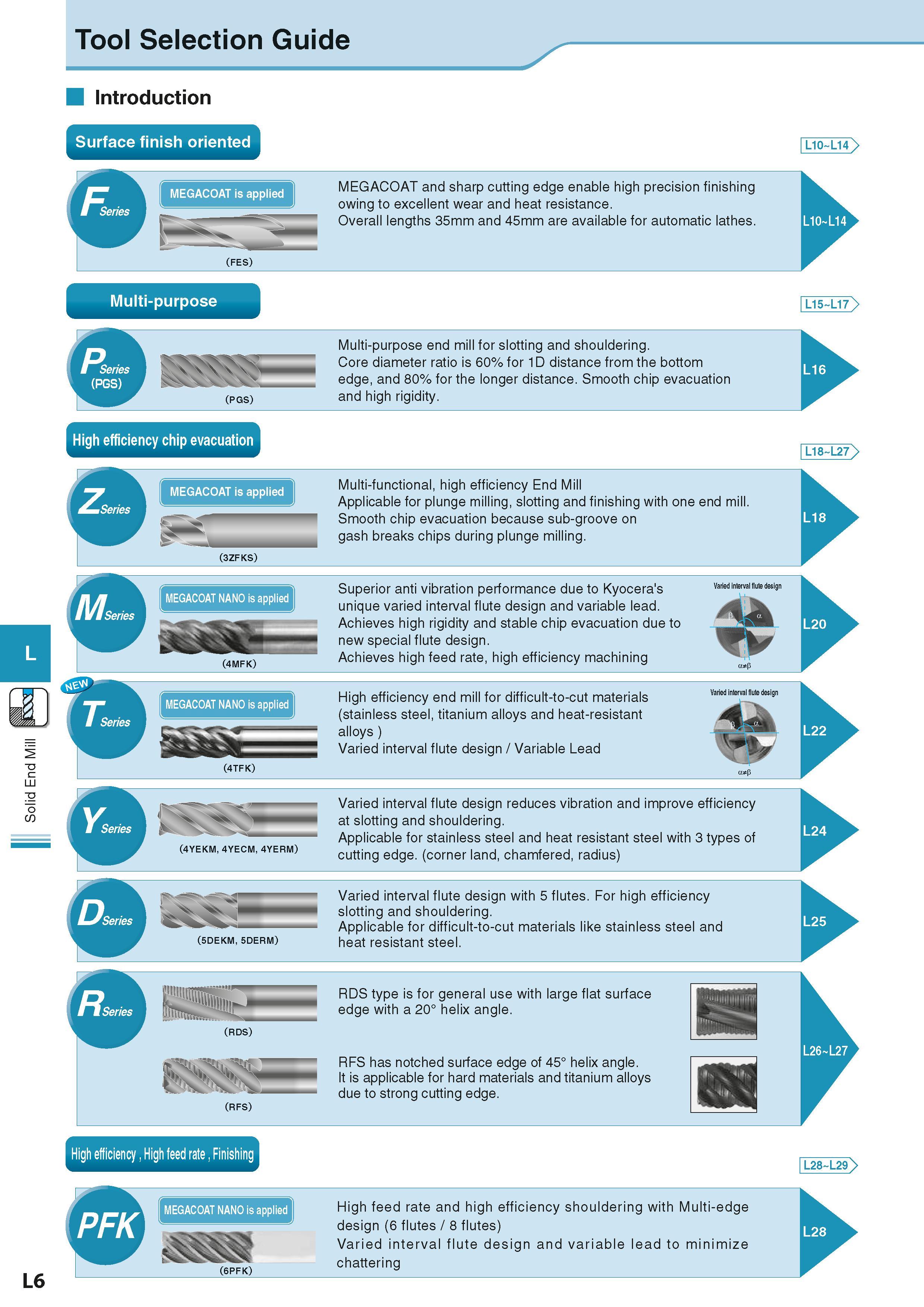

Solid End Mill Tool Selection Guide Introduction Surface finish oriented L10 L14 ) MEGACOAT is applied (FES) MEGACOAT and sharp cutting edge enable high precision finishing owing to excellent wear and heat resistance. Overall lengths 35mm and 45mm are available for automatic lathes. Multi-purpose Multi-purpose end mill for slotting and shouldering. Core diameter ratio is 60% for 1D distance from the bottom edge, and 80% for the longer distance. Smooth chip evacuation and high rigidity. L15-L17) High efficiency chip evacuation Multi-functional, high efficiency End Mill Applicable for plunge milling, slotting and finishing with one end mill. Smooth chip evacuation because sub-groove on gash breaks chips during plunge milling. Superior anti vibration performance due to Kyocera's unique varied interval flute design and variable lead. Achieves high rigidity and stable chip evacuation due to new special flute design. Achieves high feed rate, high efficiency machining Varied interval flute design High efficiency end mill for difficult-to-cut materials (stainless steel, titanium alloys and heat-resistant alloys) Varied interval flute design / Variable Lead Varied interval flute design (4TFK) (4YEKM, 4YECM, 4YERM) Varied interval flute design reduces vibration and improve efficiency at slotting and shouldering. Applicable for stainless steel and heat resistant steel with 3 types of cutting edge. (corner land, chamfered, radius) Varied interval flute design with 5 flutes. For high efficiency slotting and shouldering. Applicable for difficult-to-cut materials like stainless steel and heat resistant steel. RDS type is for general use with large flat surface edge with a 20° helix angle. RFS has notched surface edge of 45° helix angle. It is applicable for hard materials and titanium alloys due to strong cutting edge. L18-L27) L6 High efficiency High feed rate Finishing Pk (6PFK) High feed rate and high efficiency shouldering with Multi-edge design (6 flutes / 8 flutes) Varied interval flute design and variable lead to minimize chattering L28 L29>
