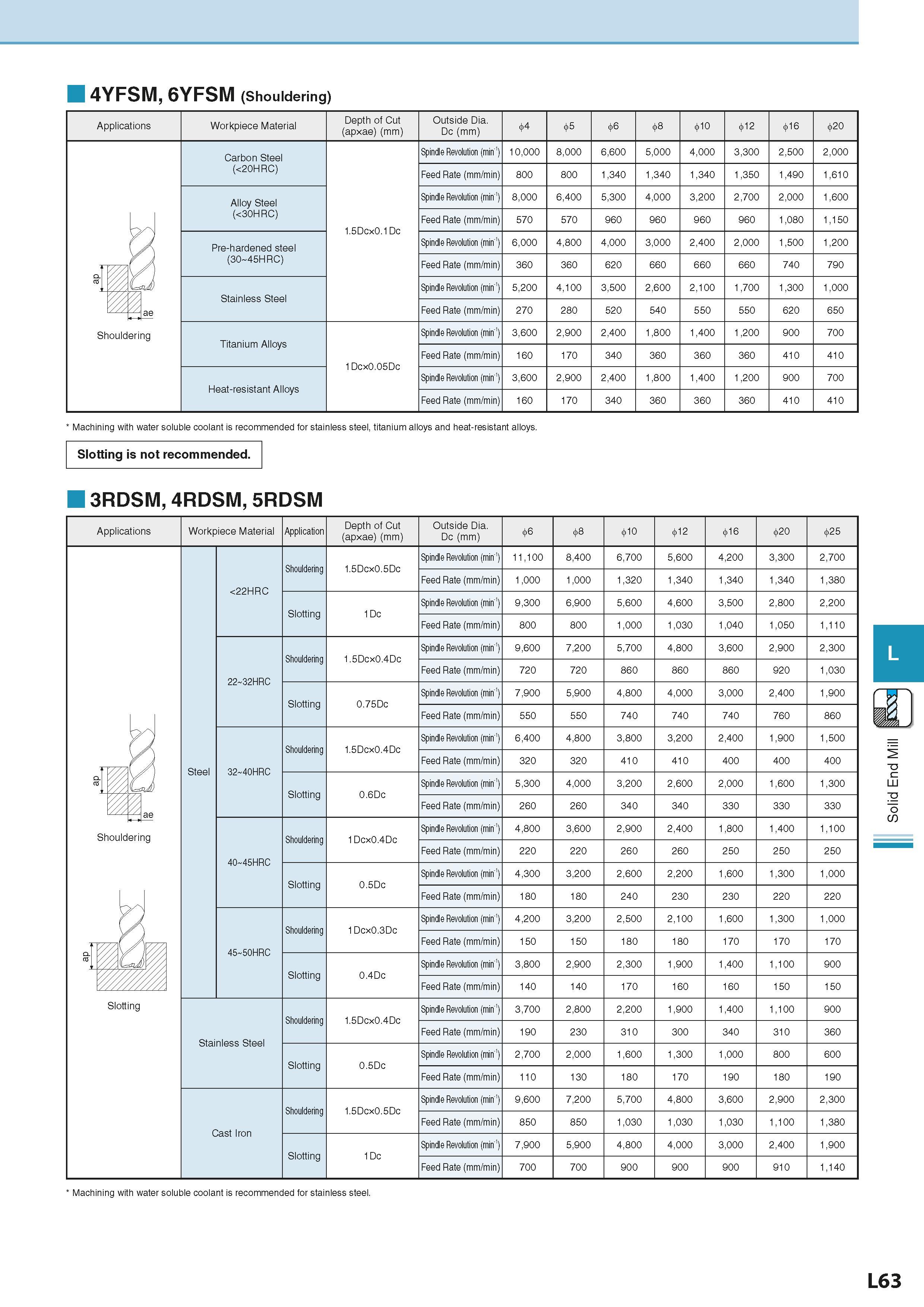

4YFSM, 6YFSM (Shouldering) Applications Workpiece Material Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 4 5 6 8 10 12 16 0 Carbon Steel (<20HRC) 1.5Dcx0.1Dc Spindle Revolution (min-1) 10,000 8,000 6,600 5,000 4,000 3,300 2,500 2,000 Feed Rate (mm/min) 800 800 1,340 1,340 1,340 1,350 1,490 1,610 Alloy Steel (<30HRC) Spindle Revolution (min-1) 8,000 6,400 5,300 4,000 3,200 2,700 2,000 1,600 Feed Rate (mm/min) 570 570 960 960 960 960 1,080 1,150 Pre-hardened steel (30 45HRC) Spindle Revolution (min-1) 6,000 4,800 4,000 3,000 2,400 2,000 1,500 1,200 CC I Feed Rate (mm/min) 360 360 620 660 660 660 740 790 Stainless Steel Spindle Revolution (min-1) 5,200 4,100 3,500 2,600 2,100 1,700 1,300 1,000 ae Feed Rate (mm/min) 270 280 520 540 550 550 620 650 Shouldering Titanium Alloys 1Dcx0.05Dc Spindle Revolution (min-1) 3,600 2,900 2,400 1,800 1,400 1,200 900 700 Feed Rate (mm/min) 160 170 340 360 360 360 410 410 Heat-resistant Alloys Spindle Revolution (min-1) 3,600 2,900 2,400 1,800 1,400 1,200 900 700 Feed Rate (mm/min) 160 170 340 360 360 360 410 410 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. Slotting is not recommended. 3RDSM, 4RDSM, 5RDSM Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 6 8 10 12 16 0 5 Steel <22HRC Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 11,100 8,400 6,700 5,600 4,200 3,300 2,700 Feed Rate (mm/min) 1,000 1,000 1,320 1,340 1,340 1,340 1,380 Slotting 1Dc Spindle Revolution (min-1) 9,300 6,900 5,600 4,600 3,500 2,800 2,200 Feed Rate (mm/min) 800 800 1,000 1,030 1,040 1,050 1,110 22 32HRC Shouldering 1.5Dcx0.4Dc Spindle Revolution (min-1) 9,600 7,200 5,700 4,800 3,600 2,900 2,300 Feed Rate (mm/min) 720 720 860 860 860 920 1,030 Slotting 0.75Dc Spindle Revolution (min-1) 7,900 5,900 4,800 4,000 3,000 2,400 1,900 W Feed Rate (mm/min) 550 550 740 740 740 760 860 32 40HRC Shouldering 1.5Dcx0.4Dc Spindle Revolution (min-1) 6,400 4,800 3,800 3,200 2,400 1,900 1,500 Feed Rate (mm/min) 320 320 410 410 400 400 400 c Slotting 0.6Dc Spindle Revolution (min-1) 5,300 4,000 3,200 2,600 2,000 1,600 1,300 ae g Feed Rate (mm/min) 260 260 340 340 330 330 330 Should erin 40 45HRC Shouldering 1Dcx0.4Dc Spindle Revolution (min-1) 4,800 3,600 2,900 2,400 1,800 1,400 1,100 Feed Rate (mm/min) 220 220 260 260 250 250 250 Slotting 0.5Dc Spindle Revolution (min-1) 4,300 3,200 2,600 2,200 1,600 1,300 1,000 Feed Rate (mm/min) 180 180 240 230 230 220 220 45 50HRC Shouldering 1Dcx0.3Dc Spindle Revolution (min-1) 4,200 3,200 2,500 2,100 1,600 1,300 1,000 Feed Rate (mm/min) 150 150 180 180 170 170 170 CC Slotting 0.4Dc Spindle Revolution (min-1) 3,800 2,900 2,300 1,900 1,400 1,100 900 Feed Rate (mm/min) 140 140 170 160 160 150 150 Slotting Stainless Steel Shouldering 1.5Dcx0.4Dc Spindle Revolution (min-1) 3,700 2,800 2,200 1,900 1,400 1,100 900 Feed Rate (mm/min) 190 230 310 300 340 310 360 Slotting 0.5Dc Spindle Revolution (min-1) 2,700 2,000 1,600 1,300 1,000 800 600 Feed Rate (mm/min) 110 130 180 170 190 180 190 Cast Iron Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 9,600 7,200 5,700 4,800 3,600 2,900 2,300 Feed Rate (mm/min) 850 850 1,030 1,030 1,030 1,100 1,380 Slotting 1Dc Spindle Revolution (min-1) 7,900 5,900 4,800 4,000 3,000 2,400 1,900 Feed Rate (mm/min) 700 700 900 900 900 910 1,140 Machining with water soluble coolant is recommended for stainless steel. L63 Solid End Mill
