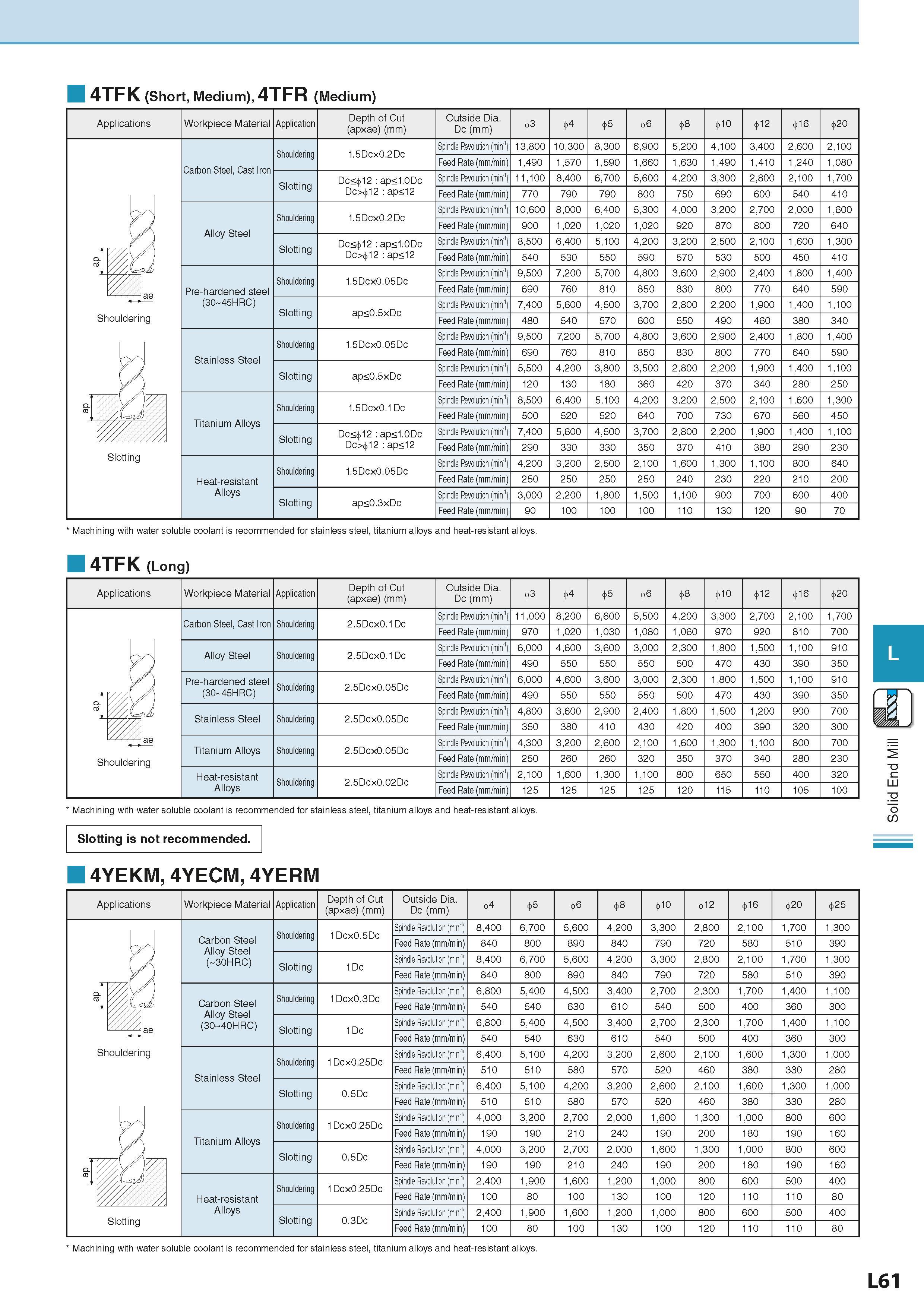

4TFK (Short, Medium), 4TFR (Medium) Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 3 4 5 6 8 10 12 16 0 Carbon Steel, Cast Iron Shouldering 1.5Dcx0.2Dc Spindle Revolution (min'1) 13,800 10,300 8,300 6,900 5,200 4,100 3,400 2,600 2,100 Feed Rate (mm/min) 1,490 1,570 1,590 1,660 1,630 1,490 1,410 1,240 1,080 Slotting Dc< 12 ap<1.0Dc Dc> 12 ap<12 Spindle Revolution (min-1) 11,100 8,400 6,700 5,600 4,200 3,300 2,800 2,100 1,700 u-l Feed Rate (mm/min) 770 790 790 800 750 690 600 540 410 Alloy Steel Shouldering 1.5Dcx0.2Dc Spindle Revolution (min-1) 10,600 8,000 6,400 5,300 4,000 3,200 2,700 2,000 1,600 Feed Rate (mm/min) 900 1,020 1,020 1,020 920 870 800 720 640 Slotting Dc< 12 ap<1.0Dc Dc> 12 ap<12 Spindle Revolution (min-1) 8,500 6,400 5,100 4,200 3,200 2,500 2,100 1,600 1,300 c Feed Rate (mm/min) 540 530 550 590 570 530 500 450 410 Pre-hardened steel (30 45HRC) Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 9,500 7,200 5,700 4,800 3,600 2,900 2,400 1,800 1,400 ae Feed Rate (mm/min) 690 760 810 850 830 800 770 640 590 Slotting ap<0.5xDc Spindle Revolution (min-1) 7,400 5,600 4,500 3,700 2,800 2,200 1,900 1,400 1,100 Shouldering Feed Rate (mm/min) 480 540 570 600 550 490 460 380 340 Stainless Steel Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 9,500 7,200 5,700 4,800 3,600 2,900 2,400 1,800 1,400 Feed Rate (mm/min) 690 760 810 850 830 800 770 640 590 Slotting ap<0.5xDc Spindle Revolution (min-1) 5,500 4,200 3,800 3,500 2,800 2,200 1,900 1,400 1,100 Feed Rate (mm/min) 120 130 180 360 420 370 340 280 250 CC 1 Titanium Alloys Shouldering 1.5Dcx0.1Dc Spindle Revolution (min-1) 8,500 6,400 5,100 4,200 3,200 2,500 2,100 1,600 1,300 Feed Rate (mm/min) 500 520 520 640 700 730 670 560 450 vAOyyyyy// Slotting Dc< 12 ap<1.0Dc Dc> 12 ap<12 Spindle Revolution (min-1) 7,400 5,600 4,500 3,700 2,800 2,200 1,900 1,400 1,100 Feed Rate (mm/min) 290 330 330 350 370 410 380 290 230 Slotting Heat-resistant Alloys Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 4,200 3,200 2,500 2,100 1,600 1,300 1,100 800 640 Feed Rate (mm/min) 250 250 250 250 240 230 220 210 200 Slotting ap<0.3xDc Spindle Revolution (min-1) 3,000 2,200 1,800 1,500 1,100 900 700 600 400 Feed Rate (mm/min) 90 100 100 100 110 130 120 90 70 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. 4TFK (Long) Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 3 4 5 6 8 10 12 16 20 Carbon Steel, Cast Iron Shouldering 2.5Dcx0.1Dc Spindle Revolution (min1) 11,000 8,200 6,600 5,500 4,200 3,300 2,700 2,100 1,700 Feed Rate (mm/min) 970 1,020 1,030 1,080 1,060 970 920 810 700 P; Alloy Steel Shouldering 2.5Dcx0.1Dc Spindle Revolution (min-1) 6,000 4,600 3,600 3,000 2,300 1,800 1,500 1,100 910 Feed Rate (mm/min) 490 550 550 550 500 470 430 390 350 Pre-hardened steel (30 45HRC) Shouldering 2.5Dcx0.05Dc Spindle Revolution (min-1) 6,000 4,600 3,600 3,000 2,300 1,800 1,500 1,100 910 CC Feed Rate (mm/min) 490 550 550 550 500 470 430 390 350 Stainless Steel Shouldering 2.5Dcx0.05Dc Spindle Revolution (min-1) 4,800 3,600 2,900 2,400 1,800 1,500 1,200 900 700 Feed Rate (mm/min) 350 380 410 430 420 400 390 320 300 ae Titanium Alloys Shouldering 2.5Dcx0.05Dc Spindle Revolution (min-1) 4,300 3,200 2,600 2,100 1,600 1,300 1,100 800 700 Shouldering Feed Rate (mm/min) 250 260 260 320 350 370 340 280 230 Heat-resistant Alloys Shouldering 2.5Dcx0.02Dc Spindle Revolution (min-1) 2,100 1,600 1,300 1,100 800 650 550 400 320 Feed Rate (mm/min) 125 125 125 125 120 115 110 105 100 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. Slotting is not recommended. 4YEKM, 4YECM, 4YERM Applications Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 4 5 6 8 10 12 16 0 5 U Carbon Steel Alloy Steel ( 30HRC) Shouldering 1Dcx0.5Dc Spindle Revolution (min-1) 8,400 6,700 5,600 4,200 3,300 2,800 2,100 1,700 1,300 Feed Rate (mm/min) 840 800 890 840 790 720 580 510 390 Slotting 1Dc Spindle Revolution (min-1) 8,400 6,700 5,600 4,200 3,300 2,800 2,100 1,700 1,300 Feed Rate (mm/min) 840 800 890 840 790 720 580 510 390 c // Z Carbon Steel Alloy Steel (30 40HRC) Shouldering 1Dcx0.3Dc Spindle Revolution (min-1) 6,800 5,400 4,500 3,400 2,700 2,300 1,700 1,400 1,100 ae Feed Rate (mm/min) 540 540 630 610 540 500 400 360 300 v// Slotting 1Dc Spindle Revolution (min-1) 6,800 5,400 4,500 3,400 2,700 2,300 1,700 1,400 1,100 Feed Rate (mm/min) 540 540 630 610 540 500 400 360 300 Shouldering Stainless Steel Shouldering 1Dcx0.25Dc Spindle Revolution (min-1) 6,400 5,100 4,200 3,200 2,600 2,100 1,600 1,300 1,000 Feed Rate (mm/min) 510 510 580 570 520 460 380 330 280 Slotting 0.5Dc Spindle Revolution (min-1) 6,400 5,100 4,200 3,200 2,600 2,100 1,600 1,300 1,000 Feed Rate (mm/min) 510 510 580 570 520 460 380 330 280 Titanium Alloys Shouldering 1Dcx0.25Dc Spindle Revolution (min-1) 4,000 3,200 2,700 2,000 1,600 1,300 1,000 800 600 Feed Rate (mm/min) 190 190 210 240 190 200 180 190 160 Slotting 0.5Dc Spindle Revolution (min-1) 4,000 3,200 2,700 2,000 1,600 1,300 1,000 800 600 CC 1 1 Feed Rate (mm/min) 190 190 210 240 190 200 180 190 160 Heat-resistant Alloys Shouldering 1Dcx0.25Dc Spindle Revolution (min-1) 2,400 1,900 1,600 1,200 1,000 800 600 500 400 v // Feed Rate (mm/min) 100 80 100 130 100 120 110 110 80 Slotting 0.3Dc Spindle Revolution (min-1) 2,400 1,900 1,600 1,200 1,000 800 600 500 400 Feed Rate (mm/min) 100 80 100 130 100 120 110 110 80 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. L61 Solid End Mill
