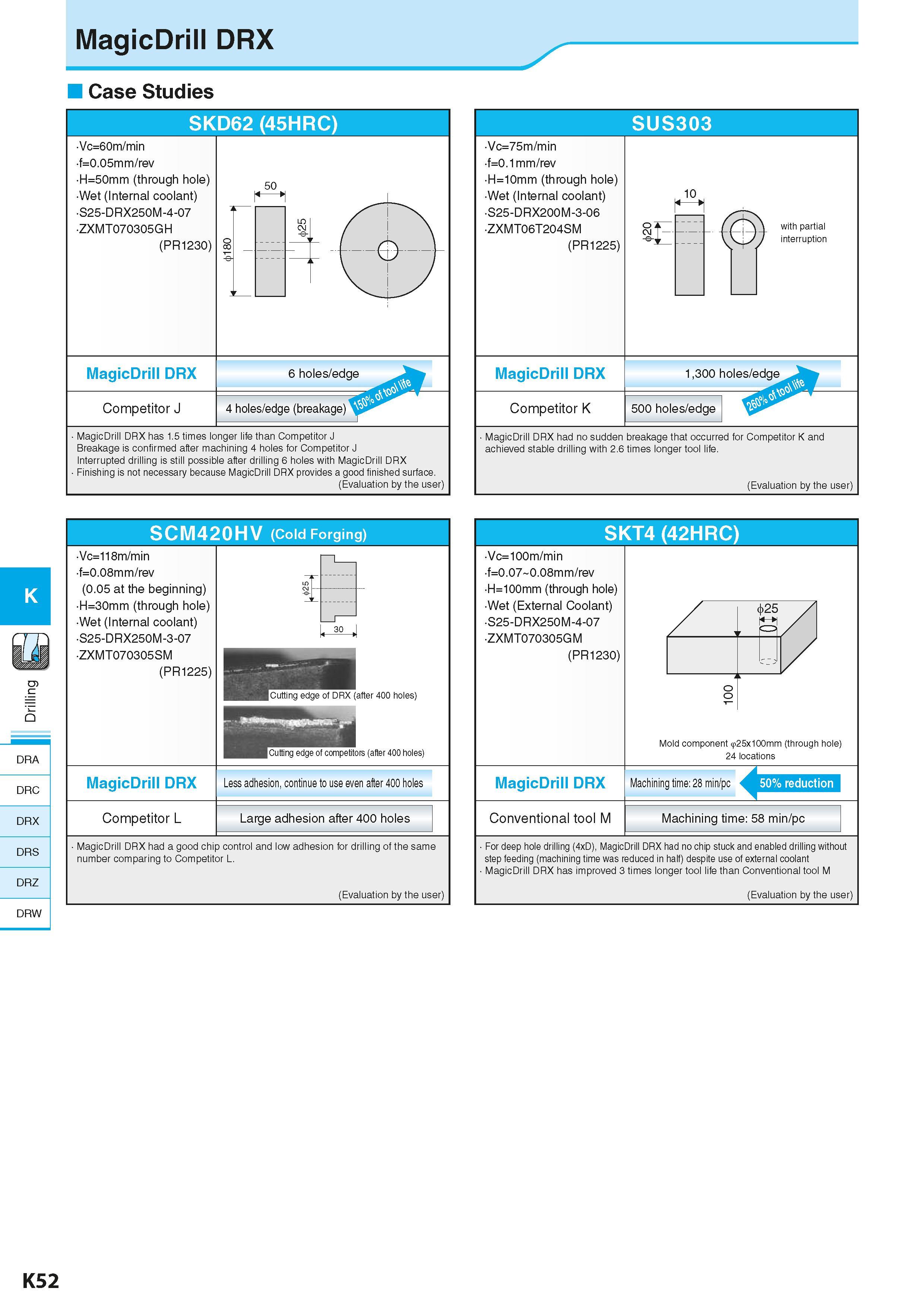

MagicDrill DRX Case Studies SKD62 (45HRC) Vc=60m/min f=0.05mm/rev H=50mm (through hole) Wet (Internal coolant) S25-DRX250M-4-07 ZXMT070305GH (PR1230) MagicDrill DRX Competitor J 50 < -H 6 holes/edge 4 holes/edge (breakage) MagicDrill DRX has 1.5 times longer life than Competitor J Breakage is confirmed after machining 4 holes for Competitor J Interrupted drilling is still possible after drilling 6 holes with MagicDrill DRX Finishing is not necessary because MagicDrill DRX provides a good finished surface. (Evaluation by the user) SUS303 Vc=75m/min f=0.1mm/rev H=10mm (through hole) Wet (Internal coolant) S25-DRX200M-3-06 ZXMT06T204SM (PR1225) MagicDrill DRX Competitor K It 10 with partial interruption 1,300 holes/edge 500 holes/edge MagicDrill DRX had no sudden breakage that occurred for Competitor K and achieved stable drilling with 2.6 times longer tool life. (Evaluation by the user) K DRA DRC DRX DRS DRZ DRW SCM420HV (Cold Forging) Vc=118m/min f=0.08mm/rev (0.05 at the beginning) H=30mm (through hole) Wet (Internal coolant) S25-DRX250M-3-07 ZXMT070305SM (PR1225) Cutting edge of DRX (after 400 holes) Cutting edge of competitors (after 400 holes) MagicDrill DRX Less adhesion, continue to use even after 400 holes Competitor L Large adhesion after 400 holes MagicDrill DRX had a good chip control and low adhesion for drilling of the same number comparing to Competitor L. (Evaluation by the user) 30 SKT4 (42HRC) Vc=100m/min f=0.07 0.08mm/rev H=100mm (through hole) Wet (External Coolant) S25-DRX250M-4-07 ZXMT070305GM (PR1230) r )25 A / 0 0 Mold component 925x100mm (through hole) 24 locations MagicDrill DRX Machining time: 28 min/pc on Conventional tool M Machining time: 58 min/pc For deep hole drilling (4xD), MagicDrill DRX had no chip stuck and enabled drilling without step feeding (machining time was reduced in half) despite use of external coolant MagicDrill DRX has improved 3 times longer tool life than Conventional tool M (Evaluation by the user) K52
