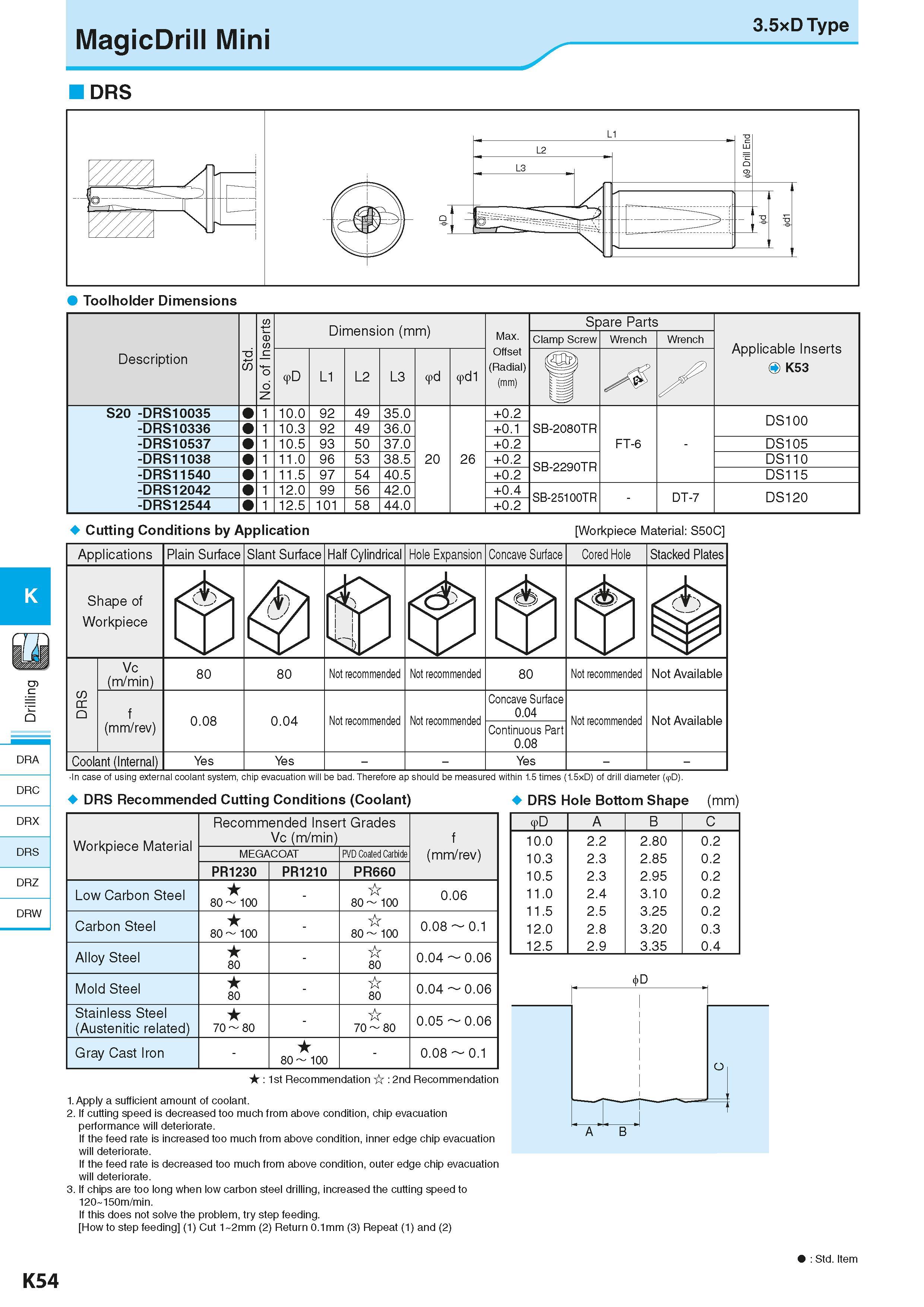

K DRA DRC DRX DRS DRZ DRW MagicDrill Mini 3.5xD Type DRS Toolholder Dimensions Description -6 55 No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Max. Offset (Radial) (mm) Spare Parts Applicable Inserts O K53 Clamp Screw Wrench Wrench 9D L1 L2 L3 9d1 u S20 -DRS10035 1 10.0 92 49 35.0 20 26 +0.2 SB-2080TR FT-6 - DS100 -DRS10336 1 10.3 92 49 36.0 +0.1 -DRS10537 1 10.5 93 50 37.0 +0.2 DS105 -DRS11038 1 11.0 96 53 38.5 +0.2 SB-2290TR DS110 -DRS11540 1 11.5 97 54 40.5 +0.2 DS115 -DRS12042 1 12.0 99 56 42.0 +0.4 SB-25100TR - DT-7 DS120 -DRS12544 1 12.5 101 58 44.0 +0.2 Cutting Conditions by Application Workpiece Material: S50C In case of using external coolant system, chip evacuation will be bad. Therefore ap should be measured within 1.5 times (1.5xD) of drill diameter (q>D). DRS Recommended Cutting Conditions (Coolant) DRS Hole Bottom Shape (mm) Workpiece Material Recommended Insert Grades Vc (m/min) f (mm/rev) MEGACOAT PVD Coated Carbide PR1230 PR1210 PR660 Low Carbon Steel 80 100 - 80 100 0.06 Carbon Steel 80 100 - 80 100 0.08 0.1 Alloy Steel 80 - 80 0.04 0.06 Mold Steel 80 - 80 0.04 0.06 Stainless Steel (Austenitic related) 70 80 - 70 80 0.05 0.06 Gray Cast Iron - 80 100 - 0.08 0.1 9D A B C 10.0 2.2 2.80 0.2 10.3 2.3 2.85 0.2 10.5 2.3 2.95 0.2 11.0 2.4 3.10 0.2 11.5 2.5 3.25 0.2 12.0 2.8 3.20 0.3 12.5 2.9 3.35 0.4 1st Recommendation 2nd Recommendation 1. Apply a sufficient amount of coolant. 2. If cutting speed is decreased too much from above condition, chip evacuation performance will deteriorate. If the feed rate is increased too much from above condition, inner edge chip evacuation will deteriorate. If the feed rate is decreased too much from above condition, outer edge chip evacuation will deteriorate. 3. If chips are too long when low carbon steel drilling, increased the cutting speed to 120 150m/min. If this does not solve the problem, try step feeding. How to step feeding (1) Cut 1 2mm (2) Return 0.1mm (3) Repeat (1) and (2) Std. Item K54
