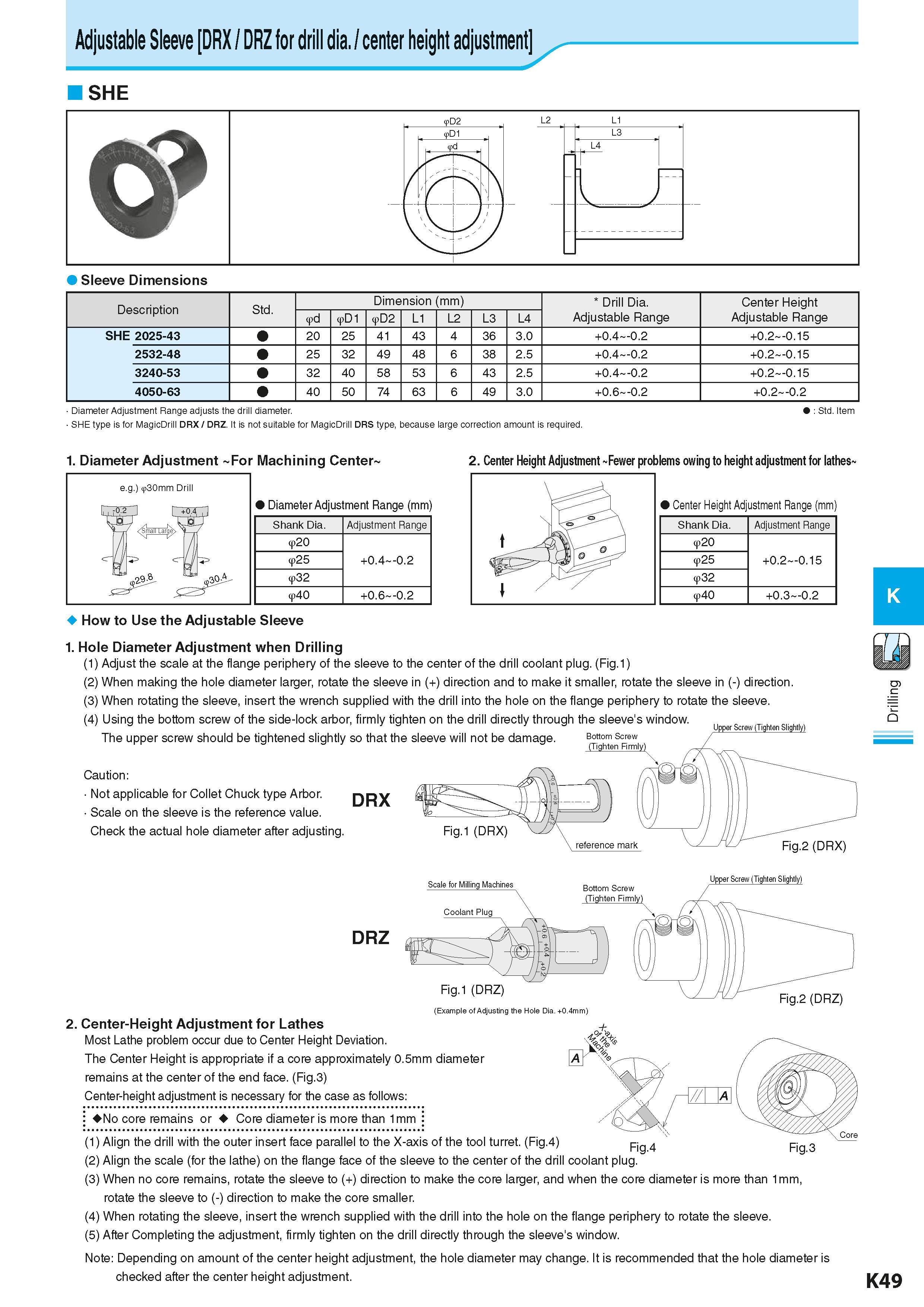

SHE Sleeve Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Drill Dia. Adjustable Range Center Height Adjustable Range 9d 9D1 9D2 L1 L2 L3 L4 SHE 2025-43 20 25 41 43 4 36 3.0 +0.4 -0.2 +0.2 0.15 2532-48 25 32 49 48 6 38 2.5 +0.4 -0.2 +0.2 -0.15 3240-53 32 40 58 53 6 43 2.5 +0.4 0.2 +0.2 -0.15 4050-63 40 50 74 63 6 49 3.0 +0.6 0.2 +0.2 0.2 Diameter Adjustment Range adjusts the drill diameter. SHE type is for MagicDrill DRX / DRZ. It is not suitable for MagicDrill DRS type, because large correction amount is required. 1. Diameter Adjustment For Machining Center 2. Center Height Adjustment Fewer problems owing to height adjustment for lathes e.g.) 930mm Drill EG Diameter Adjustment Range (mm) Shank Dia. Adjustment Range 920 +0.4 0.2 925 932 940 +0.6 0.2 How to Use the Adjustable Sleeve 1. Hole Diameter Adjustment when Drilling (1) Adjust the scale at the flange periphery of the sleeve to the center of the drill coolant plug. (Fig.1) (2) When making the hole diameter larger, rotate the sleeve in (+) direction and to make it smaller, rotate the sleeve in (-) direction. (3) When rotating the sleeve, insert the wrench supplied with the drill into the hole on the flange periphery to rotate the sleeve. (4) Using the bottom screw of the side-lock arbor, firmly tighten on the drill directly through the sleeve's window. The upper screw should be tightened slightly so that the sleeve will not be damage. Bottom Screw (Tighten Firmly) Upper Screw (Tighten Slightly) Caution: Not applicable for Collet Chuck type Arbor. DRX Scale on the sleeve is the reference value. Check the actual hole diameter after adjusting. Fig.1 (DRX) Fig.2 (DRX) 2. Center-Height Adjustment for Lathes Most Lathe problem occur due to Center Height Deviation. The Center Height is appropriate if a core approximately 0.5mm diameter remains at the center of the end face. (Fig.3) Center-height adjustment is necessary for the case as follows: No core remains or Core diameter is more than 1mm Fig.4 Fig.3 (1) Align the drill with the outer insert face parallel to the X-axis of the tool turret. (Fig.4) (2) Align the scale (for the lathe) on the flange face of the sleeve to the center of the drill coolant plug. (3) When no core remains, rotate the sleeve to (+) direction to make the core larger, and when the core diameter is more than 1mm, rotate the sleeve to (-) direction to make the core smaller. (4) When rotating the sleeve, insert the wrench supplied with the drill into the hole on the flange periphery to rotate the sleeve. (5) After Completing the adjustment, firmly tighten on the drill directly through the sleeve's window. Note: Depending on amount of the center height adjustment, the hole diameter may change. It is recommended that the hole diameter is checked after the center height adjustment. Std. Item K K49 Drilling
