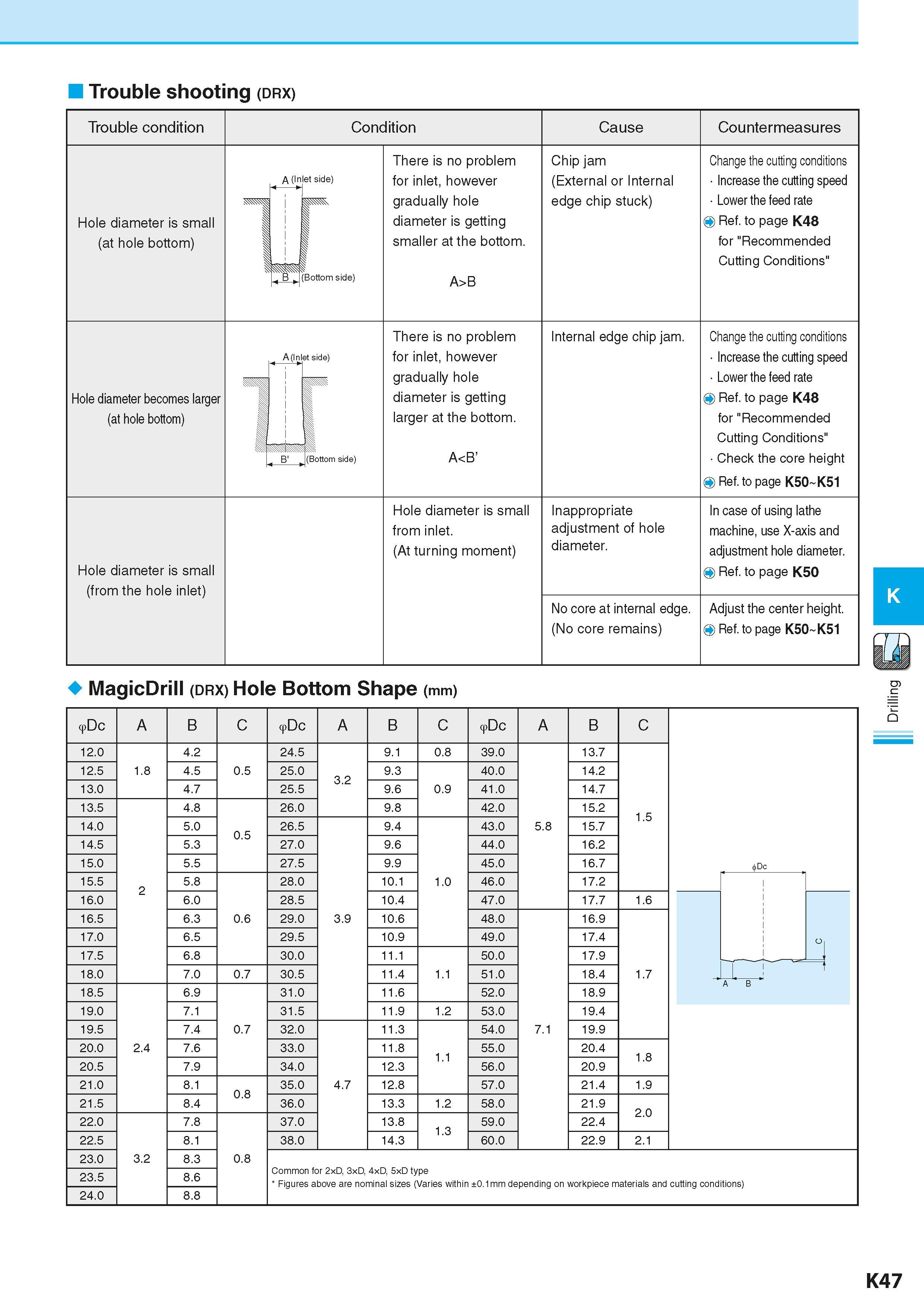

Trouble shooting (drx) Trouble condition Condition Cause Countermeasures Hole diameter is small (at hole bottom) 1 A(ln i bid B et side) r Bottom side) There is no problem for inlet, however gradually hole diameter is getting smaller at the bottom. A>B Chip jam (External or Internal edge chip stuck) Change the cutting conditions Increase the cutting speed Lower the feed rate O Ref. to page K48 for "Recommended Cutting Conditions" Hole diameter becomes larger (at hole bottom) 1 11 „ A (In f B' et side) ((Bottom side) There is no problem for inlet, however gradually hole diameter is getting larger at the bottom. A
