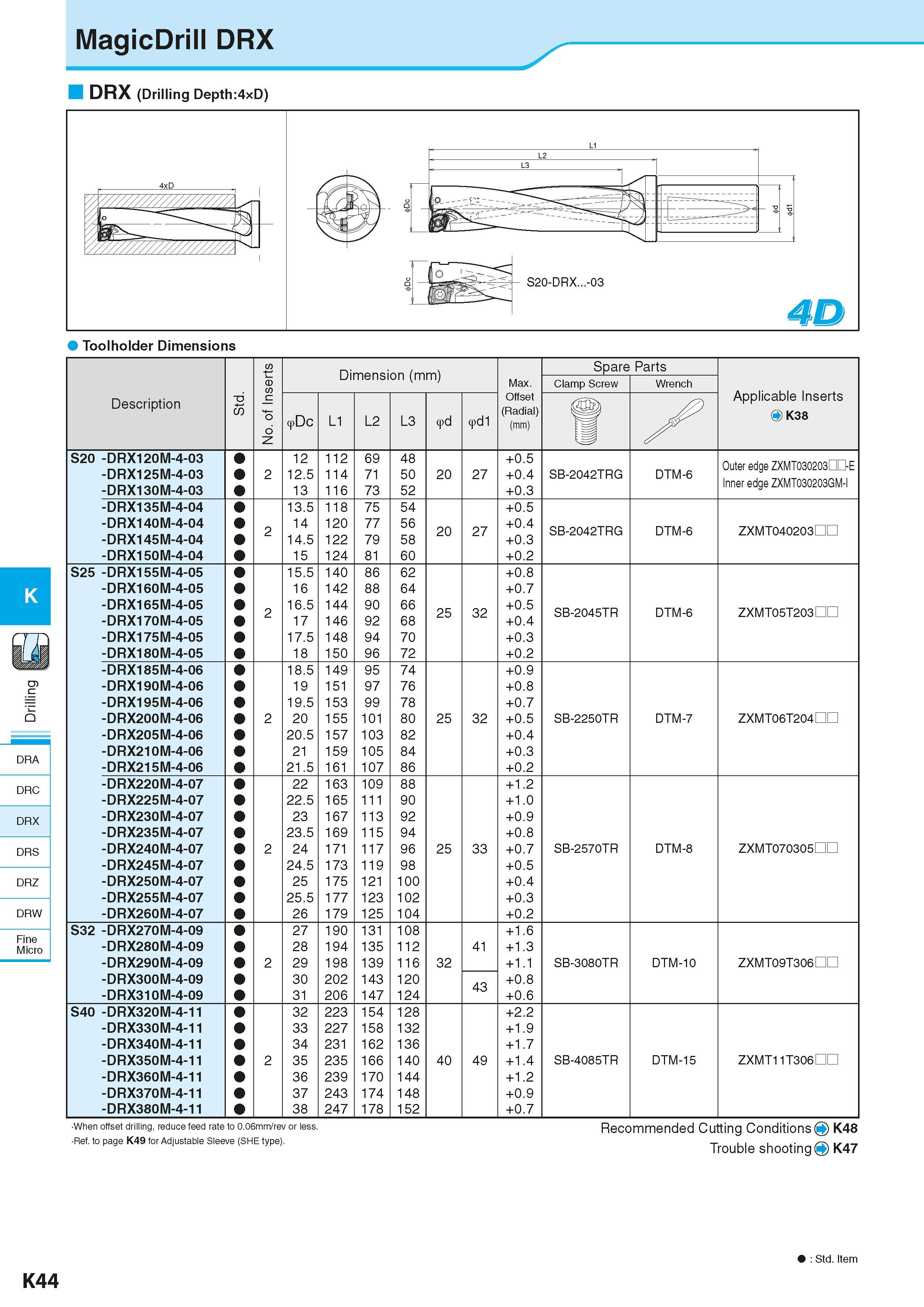

MagicDrill DRX DRX (Drilling Depth:4xD) Toolholder Dimensions K DRA DRC DRX DRS DRZ DRW Fine Micro Description Dimension (mm) Размеры инструмента указаны в мм Dc L1 L2 L3 d1 Max. Offset (Radial) (mm) Spare Parts Clamp Screw Wrench Applicable Inserts 4 K38 S20 -DRX120M-4-03 -DRX125M-4-03 -DRX130M-4-03 12 12.5 13 112 114 116 69 71 73 48 50 52 20 27 +0.5 +0.4 +0.3 SB-2042TRG DTM-6 Outer edge ZXMT030203 DD-E Inner edge ZXMT030203GM-I -DRX135M-4-04 -DRX140M-4-04 -DRX145M-4-04 -DRX150M-4-04 13.5 14 14.5 15 118 120 122 124 75 77 79 81 54 56 58 60 20 27 +0.5 +0.4 +0.3 +0.2 SB-2042TRG DTM-6 ZXMT040203 DD S25 -DRX155M-4-05 -DRX160M-4-05 -DRX165M-4-05 -DRX170M-4-05 -DRX175M-4-05 -DRX180M-4-05 15.5 16 16.5 17 17.5 18 140 142 144 146 148 150 86 88 90 92 94 96 62 64 66 68 70 72 25 32 +0.8 +0.7 +0.5 +0.4 +0.3 +0.2 SB-2045TR DTM-6 ZXMT05T203DD -DRX185M-4-06 -DRX190M-4-06 -DRX195M-4-06 -DRX200M-4-06 -DRX205M-4-06 -DRX210M-4-06 -DRX215M-4-06 18.5 19 19.5 20 20.5 21 21.5 149 151 153 155 157 159 161 95 97 99 101 103 105 107 74 76 78 80 82 84 86 25 32 +0.9 +0.8 +0.7 +0.5 +0.4 +0.3 +0.2 SB-2250TR DTM-7 ZXMT06T204DD -DRX220M-4-07 -DRX225M-4-07 -DRX230M-4-07 -DRX235M-4-07 -DRX240M-4-07 -DRX245M-4-07 -DRX250M-4-07 -DRX255M-4-07 -DRX260M-4-07 22 22.5 23 23.5 24 24.5 25 25.5 26 163 165 167 169 171 173 175 177 179 109 111 113 115 117 119 121 123 125 88 90 92 94 96 98 100 102 104 25 33 +1.2 +1.0 +0.9 +0.8 +0.7 +0.5 +0.4 +0.3 +0.2 SB-2570TR DTM-8 ZXMT070305DD S32 -DRX270M-4-09 -DRX280M-4-09 -DRX290M-4-09 -DRX300M-4-09 -DRX310M-4-09 27 28 29 30 31 190 194 198 202 206 131 135 139 143 147 108 112 116 120 124 41 32 43 +1.6 +1.3 +1.1 +0.8 +0.6 SB-3080TR DTM-10 ZXMT09T306DD S40 -DRX320M-4-11 -DRX330M-4-11 -DRX340M-4-11 -DRX350M-4-11 -DRX360M-4-11 -DRX370M-4-11 -DRX380M-4-11 32 33 34 35 36 37 38 223 227 231 235 239 243 247 154 158 162 166 170 174 178 128 132 136 140 144 148 152 40 49 +2.2 +1.9 +1.7 +1.4 +1.2 +0.9 +0.7 SB-4085TR DTM-15 ZXMT11T306 DD When offset drilling, reduce feed rate to Ref. to page K49 for Adjustable Sleeve 0.06mm/rev or less. (SHE type). Recommended Cutting Conditions O K48 Trouble shooting Q K47 2 2 2 2 2 2 2 K44 Std. Item
