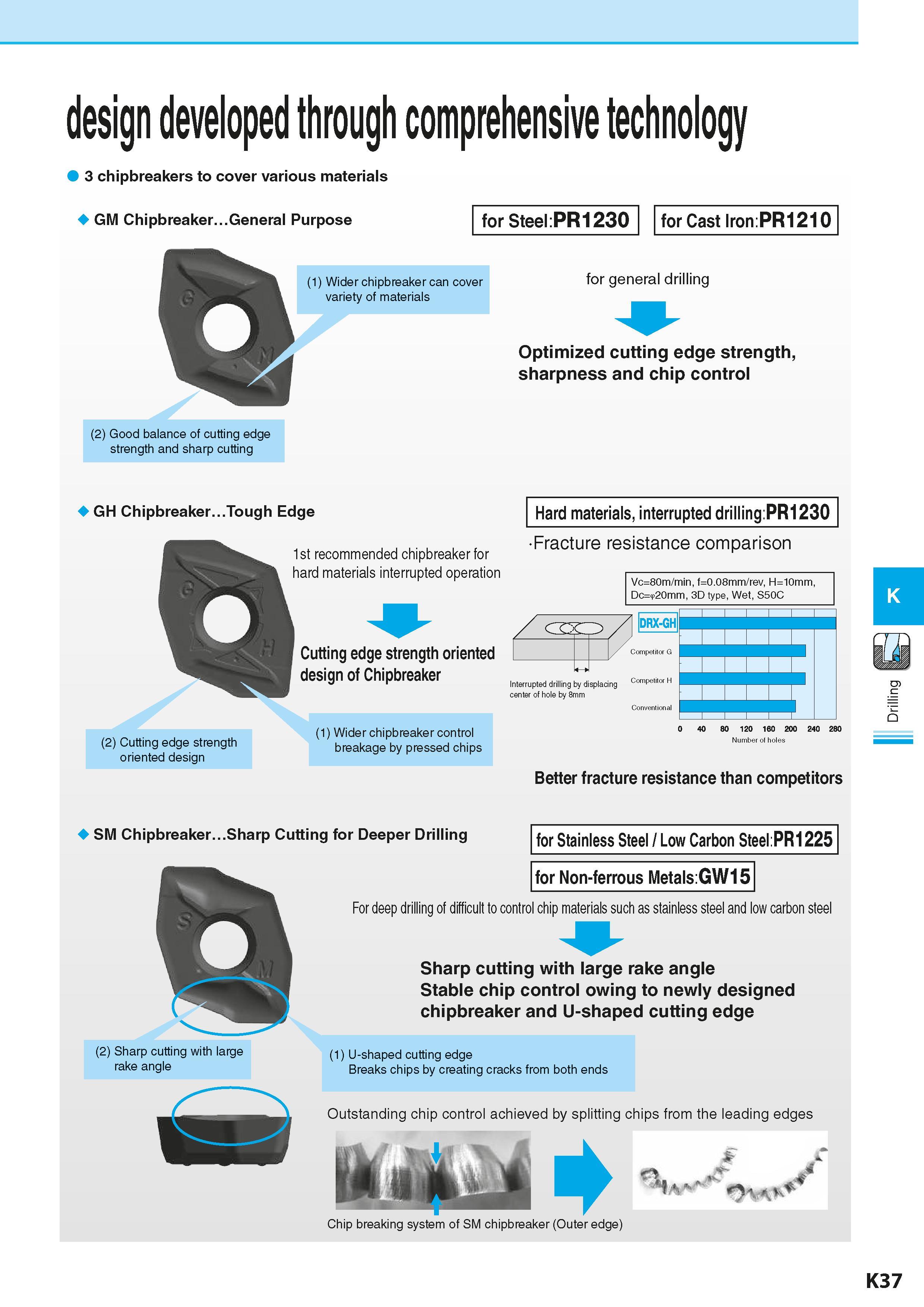

design developed through comprehensive technology 3 chipbreakers to cover various materials 4 GM Chipbreaker...General Purpose for Steel:PR1230 for Cast Iron:PR1210 (1) Wider chipbreaker can cover variety of materials for general drilling Optimized cutting edge strength, sharpness and chip control (2) Good balance of cutting edge strength and sharp cutting 4 GH Chipbreaker.Tough Edge Hard materials, interrupted drilling:PR1230 (2) Cutting edge strength oriented design 1st recommended chipbreaker for hard materials interrupted operation Fracture resistance comparison Vc=80m/min, f=0.08mm/rev, H=10mm, Dc=920mm, 3D type, Wet, S50C CZXZZD Cutting edge strength oriented design of Chipbreaker (1) Wider chipbreaker control breakage by pressed chips DRX-GH Interrupted drilling by displacing Competltor H center of hole by 8mm Conventional 0 40 80 120 160 200 240 280 Number of holes Better fracture resistance than competitors 4 SM Chipbreaker.Sharp Cutting for Deeper Drilling for Stainless Steel / Low Carbon Steel:PR1225 for Non-ferrous Metals:GW15 For deep drilling of difficult to control chip materials such as stainless steel and low carbon steel Sharp cutting with large rake angle Stable chip control owing to newly designed chipbreaker and U-shaped cutting edge (2) Sharp cutting with large rake angle (1) U-shaped cutting edge Breaks chips by creating cracks from both ends Outstanding chip control achieved by splitting chips from the leading edges A Chip breaking system of SM chipbreaker (Outer edge) Competitor G K37 Drilling
