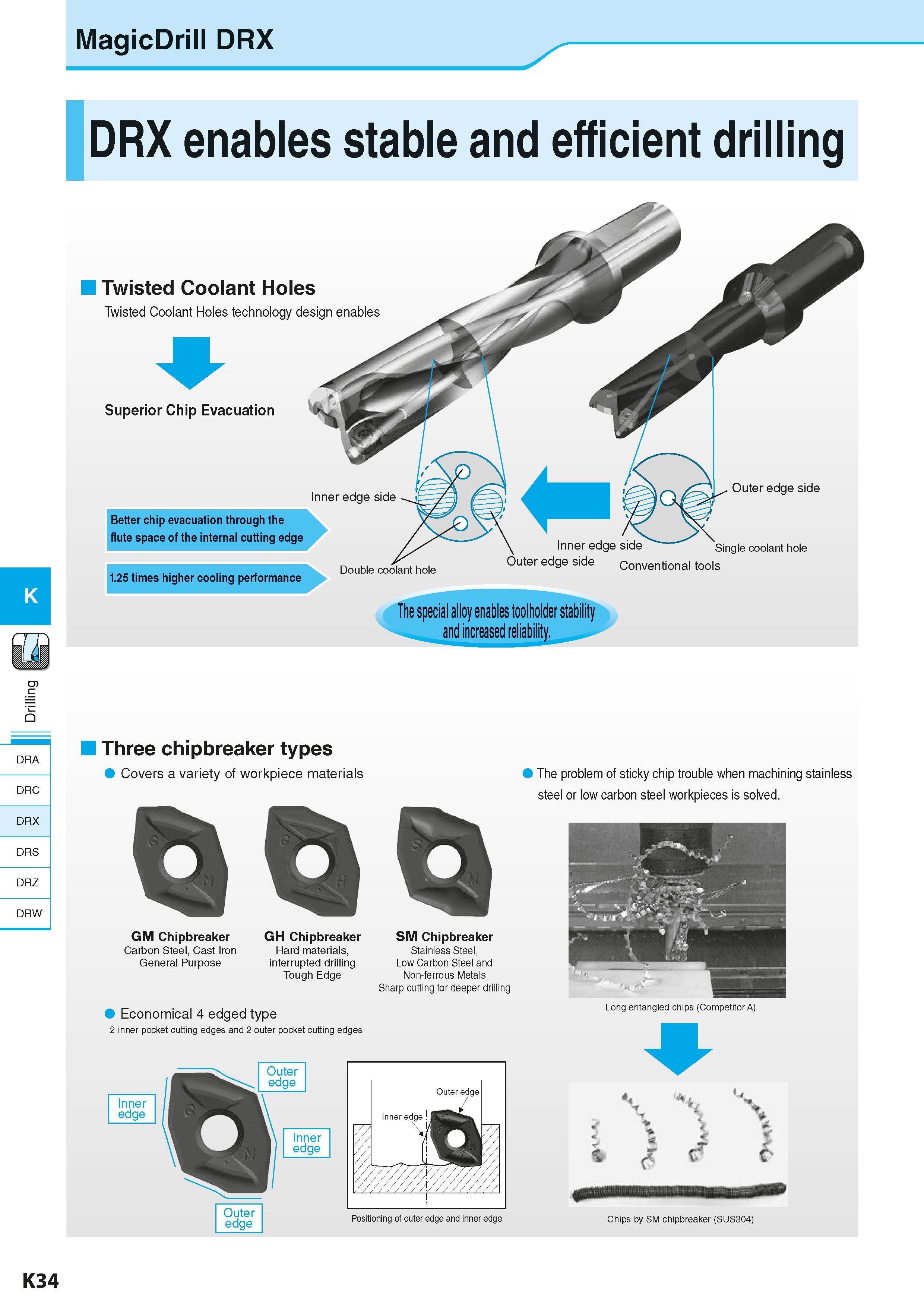

MagicDrill DRX K DRA DRC DRX DRS DRZ DRW DRX enables stable and efficient drilling Three chipbreaker types Covers a variety of workpiece materials The problem of sticky chip trouble when machining stainless steel or low carbon steel workpieces is solved. GM Chipbreaker Carbon Steel, Cast Iron General Purpose GH Chipbreaker Hard materials, interrupted drilling Tough Edge SM Chipbreaker Stainless Steel, Low Carbon Steel and Non-ferrous Metals Sharp cutting for deeper drilling Economical 4 edged type 2 inner pocket cutting edges and 2 outer pocket cutting edges Inner edge Long entangled chips (Competitor A) Positioning of outer edge and inner edge Chips by SM chipbreaker (SUS304) Twisted Coolant Holes Twisted Coolant Holes technology design enables Superior Chip Evacuation The special alloy enables toolholder stability and increased reliability. Better chip evacuation through the flute space of the internal cutting edge nner edge side 1.25 times higher cooling performance Double coolant hole side Single coolant hole Conventional tools Inner edge Outer edge side Outer edge Outer edge Inner edge K34
