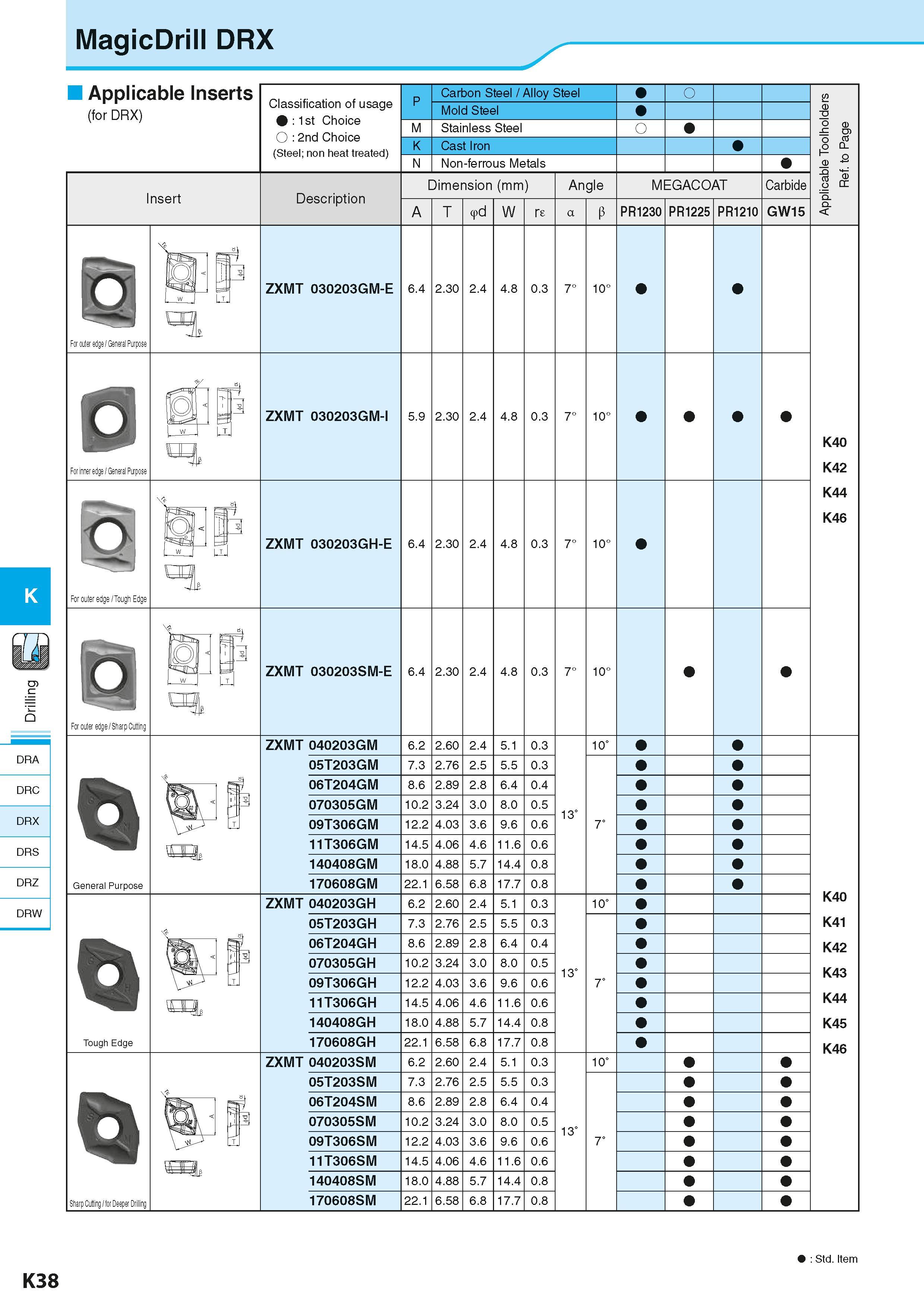

MagicDrill DRX K g in Dr DRA DRC DRX DRS DRZ DRW Applicable Inserts (for DRX) Classification of usage 1st Choice O 2nd Choice (Steel; non heat treated) M K Carbon Steel / Alloy Steel Mold Steel Stainless Steel Cast Iron N Non-ferrous Metals e g a P Insert Description Dimension (mm) Размеры инструмента указаны в мм A T 9d W rs Angle MEGACOAT Carbide PR1230 PR1225 PR1210 GW15 For outer edge / General Purpose ZXMT 030203GM-E 6.4 2.30 2.4 4.8 0.3 10° ZXMT 030203GM-I 5.9 2.30 2.4 4.8 0.3 10° For inner edge / General Purpose K40 K42 K44 K46 ZXMT 030203GH-E 6.4 2.30 2.4 4.8 0.3 10° For outer edge / Tough Edge ZXMT 030203SM-E 6.4 2.30 2.4 4.8 0.3 10° For outer edge / Sharp Cutting ZXMT 040203GM 6.2 2.60 2.4 5.1 0.3 10" General Purpose 05T203GM 7.3 2.76 2.5 5.5 0.3 06T204GM 8.6 2.89 2.8 6.4 0.4 070305GM 10.2 3.24 3.0 8.0 0.5 09T306GM 12.2 4.03 3.6 9.6 0.6 13" 11T306GM 14.5 4.06 4.6 11.6 0.6 140408GM 18.0 4.88 5.7 14.4 0.8 170608GM 22.1 6.58 6.8 17.7 0.8 K40 K41 K42 K43 K44 K45 K46 ZXMT 040203GH 6.2 2.60 2.4 5.1 0.3 10" Tough Edge 05T203GH 7.3 2.76 2.5 5.5 0.3 06T204GH 8.6 2.89 2.8 6.4 0.4 070305GH 10.2 3.24 3.0 8.0 0.5 09T306GH 12.2 4.03 3.6 9.6 0.6 13" 7" 11T306GH 14.5 4.06 4.6 11.6 0.6 140408GH 18.0 4.88 5.7 14.4 0.8 170608GH 22.1 6.58 6.8 17.7 0.8 ZXMT 040203SM 6.2 2.60 2.4 5.1 0.3 10" Sharp Cutting / for Deeper Drilling 05T203SM 7.3 2.76 2.5 5.5 0.3 06T204SM 8.6 2.89 2.8 6.4 0.4 070305SM 10.2 3.24 3.0 8.0 0.5 09T306SM 12.2 4.03 3.6 9.6 0.6 13" 11T306SM 14.5 4.06 4.6 11.6 0.6 140408SM 18.0 4.88 5.7 14.4 0.8 170608SM 22.1 6.58 6.8 17.7 0.8 P 7 7 Std. Item K38
