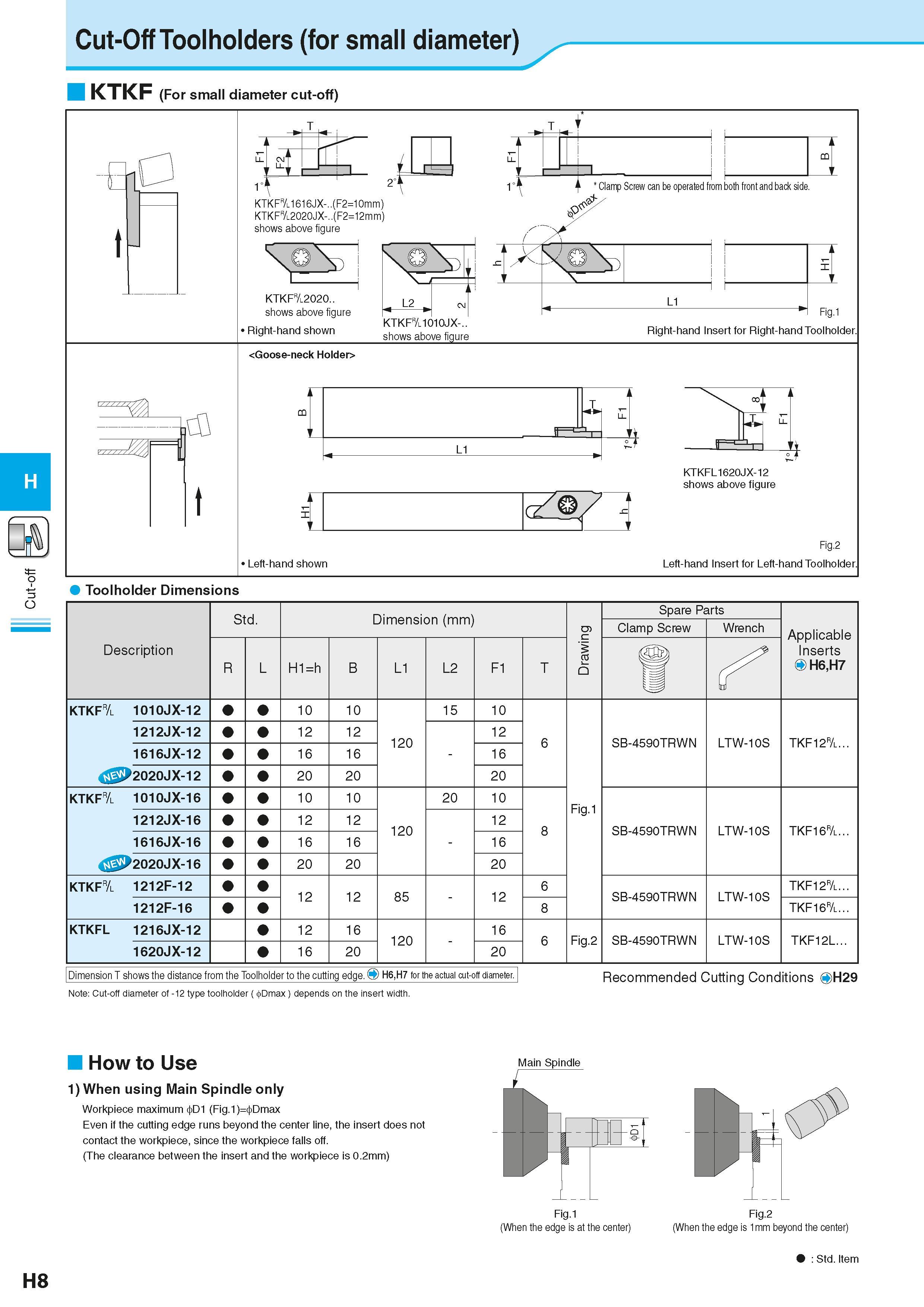

Cut-off Cut-Off Toolholders (for small diameter) KTKF (For small diameter cut-off) H Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Drawing Spare Parts Applicable Inserts O H6,H7 Clamp Screw Wrench R L H1=h B L1 L2 F1 T Hi r"’ KTKF& 1010JX-12 10 10 120 15 10 6 Fig.1 SB-4590TRWN LTW-10S TKF12&... 1212JX-12 12 12 - 12 1616JX-12 16 16 16 y2020JX-12 20 20 20 KTKF& 1010JX-16 10 10 120 20 10 8 SB-4590TRWN LTW-10S TKF16&... 1212JX-16 12 12 - 12 1616JX-16 16 16 16 2020JX-16 20 20 20 KTKF& 1212F-12 12 12 85 - 12 6 SB-4590TRWN LTW-10S TKF12&... 1212F-16 8 TKF16&. KTKFL 1216JX-12 12 16 120 - 16 6 Fig.2 SB-4590TRWN LTW-10S TKF12L... 1620JX-12 16 20 20 Dimension T shows the distance from the Toolholder to the cutting edge. O H6,H7 for the actual cut-off diameter. Recommended Cutting Conditions QH29 Note: Cut-off diameter of -12 type toolholder ( Dmax ) depends on the insert width. How to Use 1) When using Main Spindle only Workpiece maximum c)>D1 (Fig.1)=ct>Dmax Even if the cutting edge runs beyond the center line, the insert does not contact the workpiece, since the workpiece falls off. (The clearance between the insert and the workpiece is 0.2mm) Main Spindle ft Fig.1 (When the edge is at the center) Fig.2 (When the edge is 1mm beyond the center) Std. Item H8
