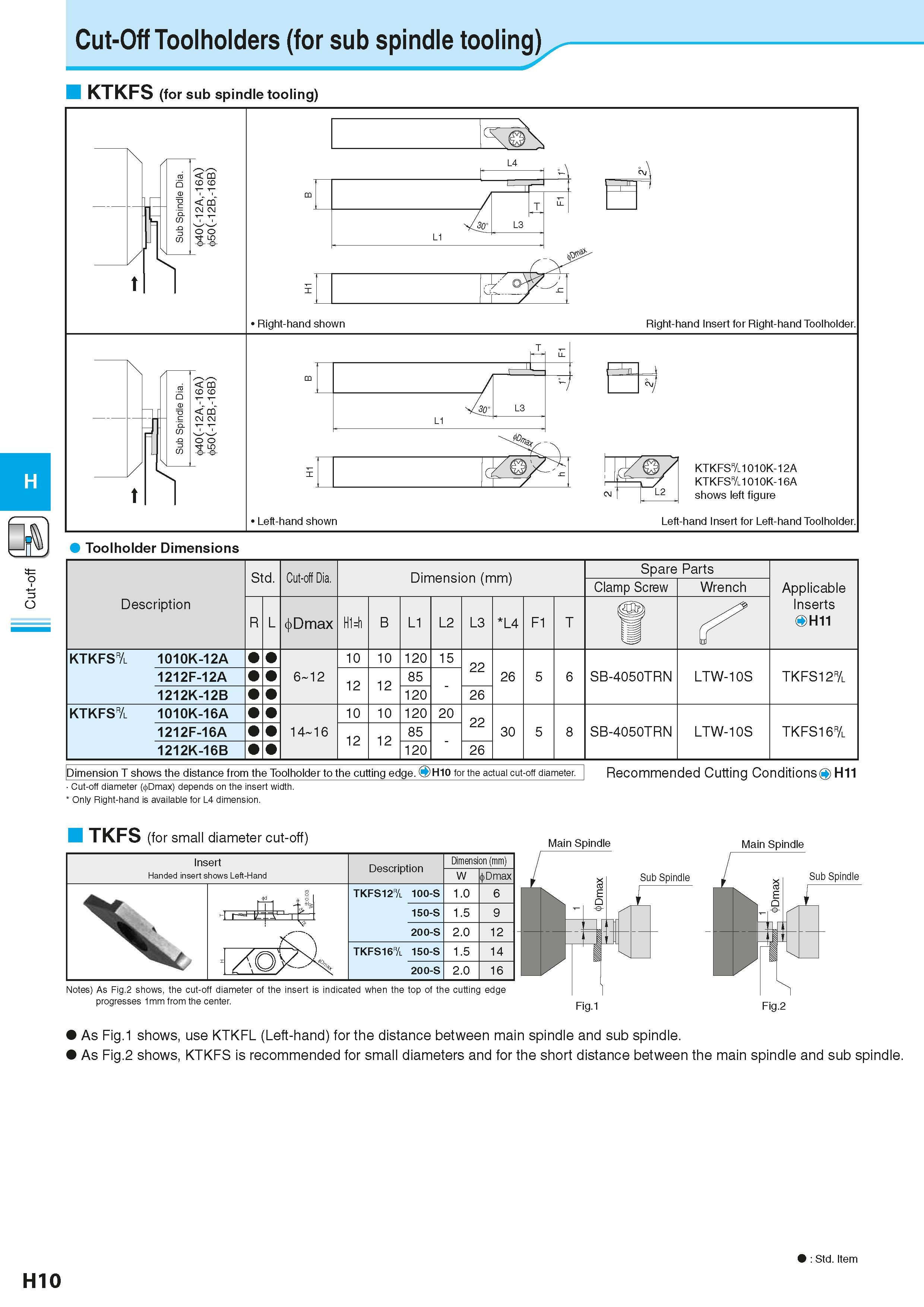

Cut-off Cut-Off Toolholders (for sub spindle tooling) KTKFS (for sub spindle tooling) Cut-off diameter ( Dmax) depends on the insert width. Only Right-hand is available for L4 dimension. TKFS (for small diameter cut-off) Insert Handed insert shows Left-Hand Description TKFS12& 100-S 150-S 200-S TKFS16& 150-S 200-S Dimension (mm) Размеры инструмента указаны в мм W Dmax 1.0 1.5 2.0 1.5 2.0 12 14 16 Notes) As Fig.2 shows, the cut-off diameter of the insert is indicated when the top of the cutting edge progresses 1mm from the center. Main Spindle Fig.1 Main Spindle Sub Spindle Fig.2 As Fig.1 shows, use KTKFL (Left-hand) for the distance between main spindle and sub spindle. As Fig.2 shows, KTKFS is recommended for small diameters and for the short distance between the main spindle and sub spindle. 6 9 H10 Std. Item
