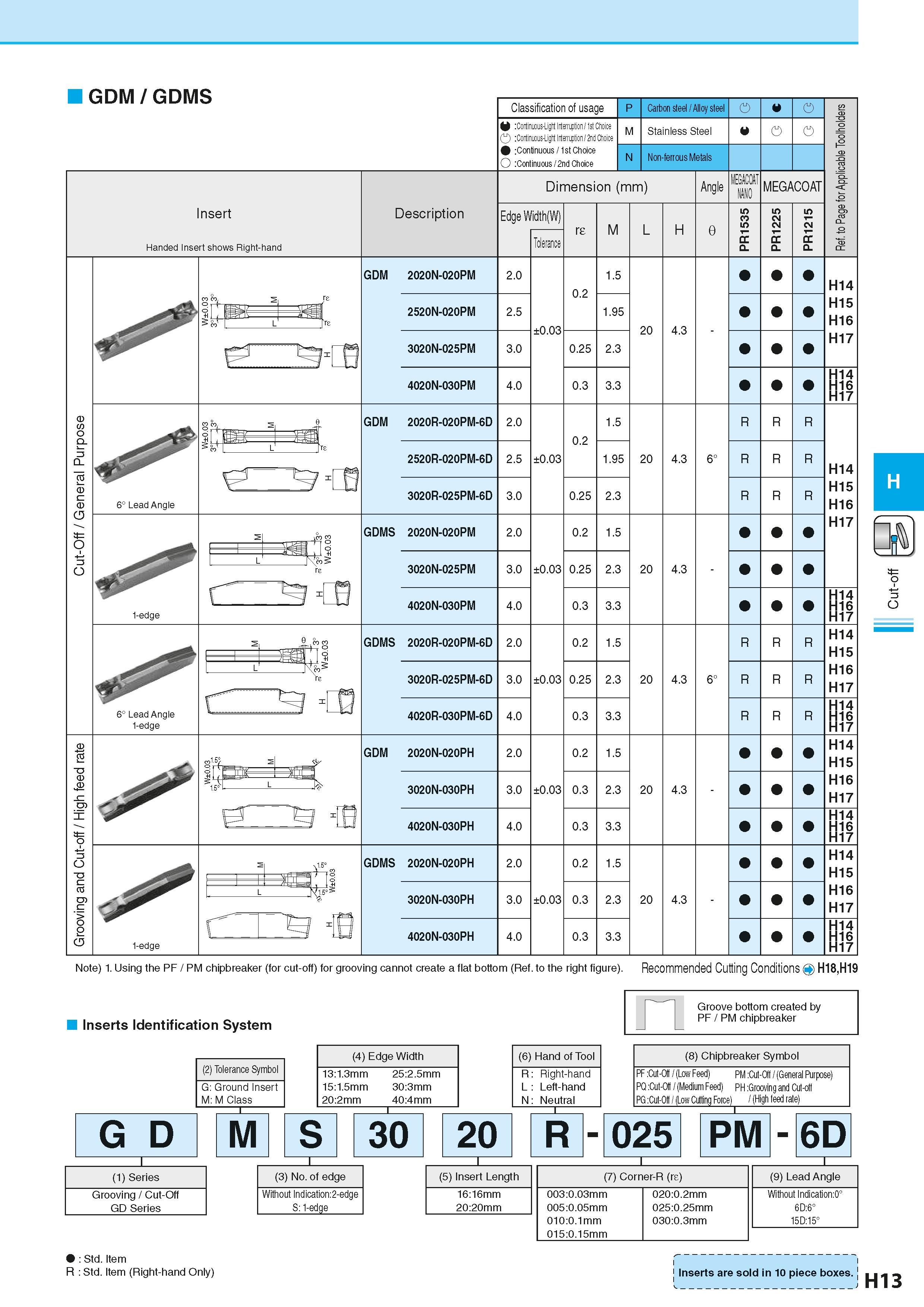

477 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.H13

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. H13 0477 Lab2u

GDM/GDMS Insert Handed Insert shows Right-hand Description Classification of usage Continuous-Light Interruption / 1st Choice Continuous-Light Interruption / 2nd Choice Continuous / 1st Choice Continuous / 2nd Choice Carbon steel / Alloy steel Stainless Steel Non-ferrous Metals Dimension (mm) Размеры инструмента указаны в мм Edge Width(W) Tolerance re M Angle in U) IT CL W MEGACOAT U) cc CL LO CC CL 6° Lead Angle 1-edge 6° Lead Angle 1-edge GDM 2020N-020PM 2.0 1.5 0.2 2520N-020PM 2.5 1.95 ±0.03 20 4.3 3020N-025PM 3.0 0.25 2.3 4020N-030PM 4.0 0.3 3.3 H14 H15 H16 H17 GDM 2020R-020PM-6D 2.0 1.5 0.2 2520R-020PM-6D 2.5 ±0.03 1.95 20 4.3 3020R-025PM-6D 3.0 0.25 2.3 L GDMS 2020N-020PM 2.0 0.2 1.5 H14 H15 H16 H17 3020N-025PM 3.0 ±0.03 0.25 2.3 20 4.3 4020N-030PM 4.0 0.3 3.3 Si i mm' lL its GDMS 2020R-020PM-6D 2.0 0.2 1.5 3020R-025PM-6D 3.0 ±0.03 0.25 2.3 20 4.3 4020R-030PM-6D 4.0 0.3 3.3 H14 H15 H16 H17 GDM 2020N-020PH 2.0 0.2 1.5 3020N-030PH 3.0 ±0.03 0.3 2.3 20 4.3 4020N-030PH 4.0 0.3 3.3 GDMS 2020N-020PH 2.0 0.2 1.5 3020N-030PH 3.0 ±0.03 0.3 2.3 20 4.3 1-edge 4020N-030PH 4.0 0.3 3.3 H14 H15 H16 H17 H14 H15 H16 H17 Note) 1. Using the PF / PM chipbreaker (for cut-off) for grooving cannot create a flat bottom (Ref. to the right figure). Recommended Cutting Conditions O H18,H19 Inserts Identification System Groove bottom created by PF / PM chipbreaker (4) Edge Width (6) Hand of Tool (8) Chipbreaker Symbol (2) Tolerance Symbol G: Ground Insert M: M Class 13:1.3mm 25:2.5mm 15:1.5mm 30:3mm 20:2mm 40:4mm RL N Right-hand Left-hand Neutral PF :Cut-Off / (Low Feed) PM :Cut-Off / (General Purpose) PQ :Cut-Off / (Medium Feed) PH :Grooving and Cut-off PG :Cut-Off / (Low Cutting Force) / (High feed rate) G D M S 30 20 R - 025 PM - 6D (1) Series Grooving / Cut-Off GD Series (3) No. of edge Without Indication:2-edge S: 1-edge (5) Insert Length (7) Corner-R (re) (9) Lead Angle 16:16mm 20:20mm 003:0.03mm 005:0.05mm 010:0.1mm 015:0.15mm 020:0.2mm 025:0.25mm 030:0.3mm Without Indication:0° 6D:6° 15D:15° Std. Item R Std. Item (Right-hand Only) 1 Inserts are sold in 10 piece boxes. H13 P M N L H e L R R R L R R R R R R R R R R R Cut-off
