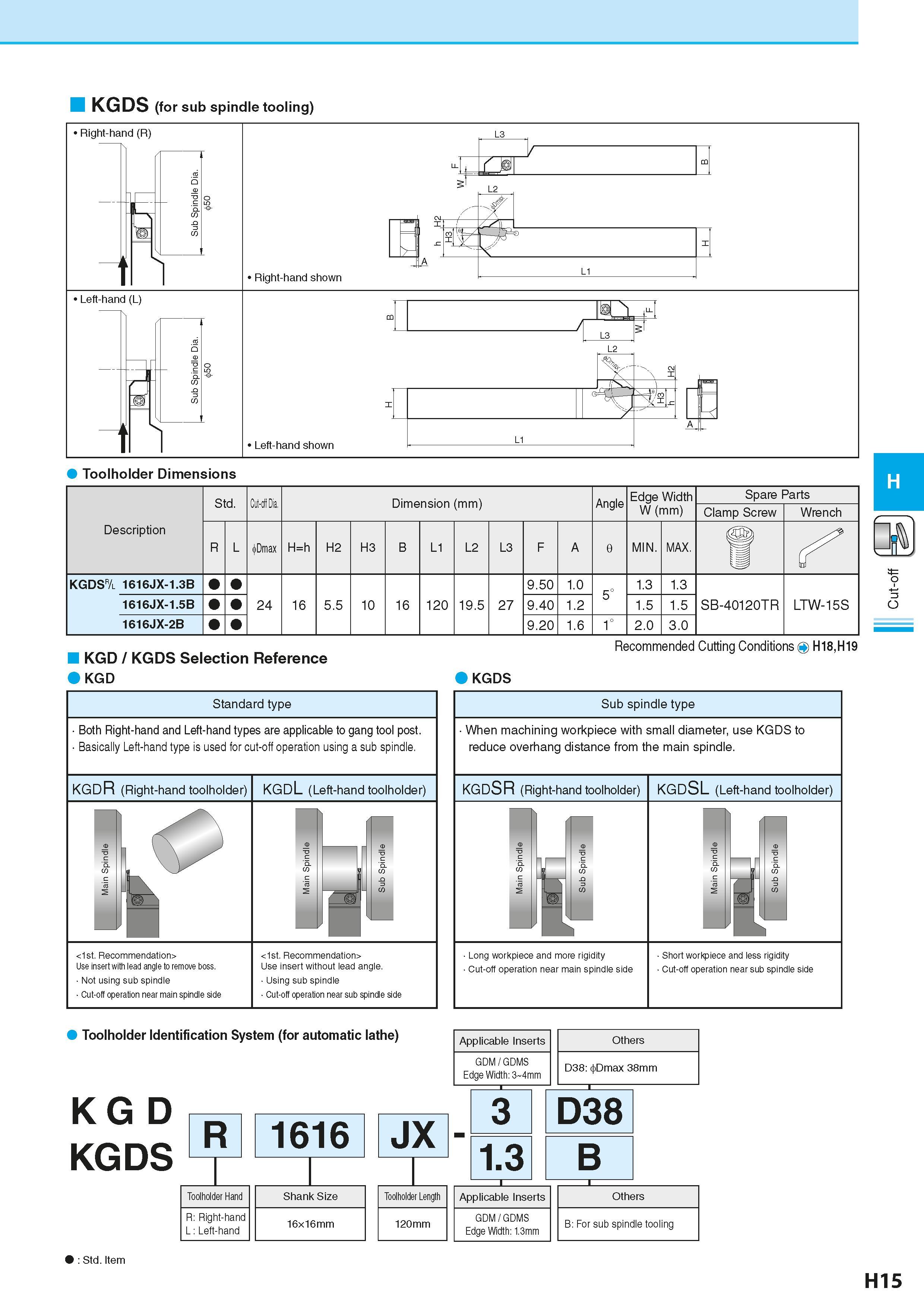

KGDS (for sub spindle tooling) Toolholder Dimensions Description Обозначение инструмента для заказа Std. Cut-off Dia. Dimension (mm) Размеры инструмента указаны в мм Angle Edge Width W (mm) Spare Parts Clamp Screw Wrench R L ifDmax H=h H2 H3 B L1 L2 L3 F A 0 MIN. MAX. U KGDS& 1616JX-1.3B 24 16 5.5 10 16 120 19.5 27 9.50 1.0 5° 1.3 1.3 SB-40120TR LTW-15S 1616JX-1.5B 9.40 1.2 1.5 1.5 1616JX-2B 9.20 1.6 1° 2.0 3.0 Recommended Cutting Conditions O H18.H19 KGD / KGDS Selection Reference KGD KGDS H Standard type Both Right-hand and Left-hand types are applicable to gang tool post. Basically Left-hand type is used for cut-off operation using a sub spindle. KGDR (Right-hand toolholder) KGDL (Left-hand toolholder) “U c d c J J le dl in pi in Ma r 1 dl in 'ci b u <1st. Recommendation> Use insert with lead angle to remove boss. Not using sub spindle Cut-off operation near main spindle side <1st. Recommendation> Use insert without lead angle. Using sub spindle Cut-off operation near sub spindle side Sub spindle type When machining workpiece with small diameter, use KGDS to reduce overhang distance from the main spindle. KGDSR (Right-hand toolholder) KGDSL (Left-hand toolholder) r le le i k i jil Main Spindle i Sub Spindle Long workpiece and more rigidity Cut-off operation near main spindle side Short workpiece and less rigidity Cut-off operation near sub spindle side Toolholder Identification System (for automatic lathe) KGD KGDS R 1616 JX Toolholder Hand Shank Size R: Right-hand L: Left-hand 16x16mm Toolholder Length 120mm Applicable Inserts GDM/GDMS Edge Width: 3 4mm Others D38: cfiDmax 38mm 3 D38 1.3 1 B 1 Applicable Inserts GDM/GDMS Edge Width: 1.3mm Others B: For sub spindle tooling Std. Item H15 Cut-off
