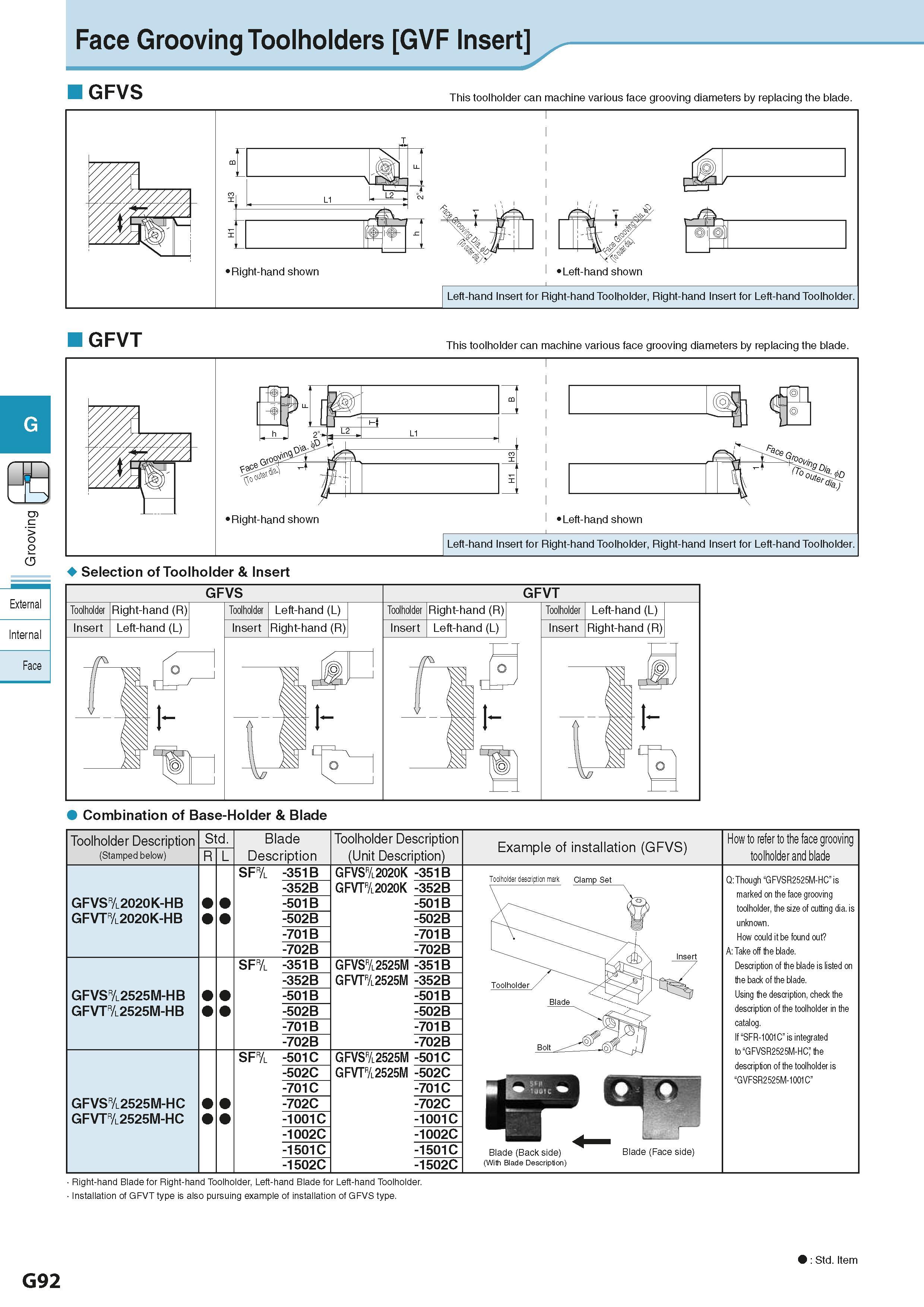

Face Grooving Toolholders GVF Insert gfvs This toolholder can machine various face grooving diameters by replacing the blade. gfvt This toolholder can machine various face grooving diameters by replacing the blade. External Internal Face Toolholder Description (Stamped below) Std. R L Blade Description Toolholder Description (Unit Description) Example of installation (GFVS) How to refer to the face grooving toolholder and blade SF& -351B -352B GFVS&2020K -351B GFVT&2020K -352B Toolholder description mark Clamp Set GFVS&2020K-HB GFVT&2020K-HB -501B -501B -502B -502B -701B -701B -702B -702B SF& -351B -352B GFVS&2525M -351B GFVT&2525M -352B GFVS&2525M-HB GFVT&2525M-HB -501B -501B -502B -502B -701B -701B -702B -702B SF& -501C -502C GFVS&2525M -501C GFVT&2525M -502C Q: Though “GFVSR2525M-HC” is marked on the face grooving toolholder, the size of cutting dia. is unknown. How could it be found out A: Take off the blade. Description of the blade is listed on the back of the blade. Using the description, check the description of the toolholder in the -701C -701C GFVS&2525M-HC GFVT&2525M-HC -702C -702C -1001C -1001C -1002C -1002C -1501C -1501C If “SFR-1001C” is integrated to “GFVSR2525M-HC”, the description of the toolholder is “GVFSR2525M-1001C” -1502C -1502C Blade (Back side) (With Blade Description) Blade (Face side) Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. Installation of GFVT type is also pursuing example of installation of GFVS type. G92 Std. Item
