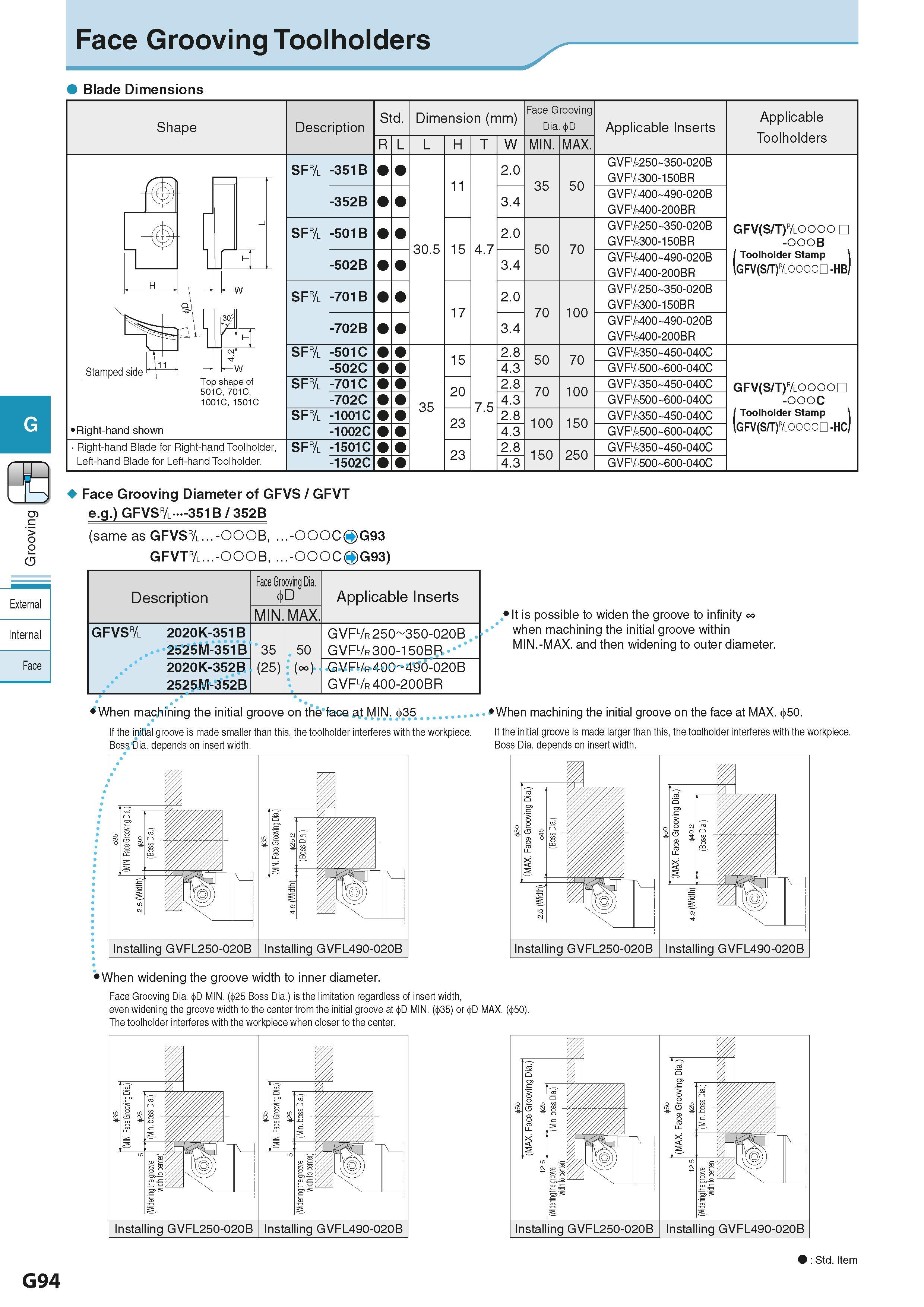

Race Grooving Toolholders Blade Dimensions Shape Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм L H T W Face Grooving Dia. Right-hand shown -1002C Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. SR& -1501C -1502C 15 20 23 23 2.8 4.3 50 70 GVFl/r350 450-040C GVFl/r500 600-040C 2.8 7.5 4.3 70 100 GVFl/r350 450-040C GVFl/r500 600-040C 2.8 4.3 100 150 GVFl/r350 450-040C GVFl/r500 600-040C GRV(S/T)&0000 -000C (Toolholder Stamp 1 GRV(S/T)7l0000D -H0j 2.8 4.3 150 250 GVFl/r350 450-040C GVFl/r500 600-040C Race Grooving Diameter of GRVS / GRVT e.g.) GRVS& 351B / 352B (same as GRVS&...-000B, .-000 G93 GRVTr/l...-000B, .-000 G93) R L G External Internal Description Face Grooving Dia. Applicable Inserts MIN. MAX. GFVS& 2020K-351B 23 ) 50 M GVFl/r 250 350-020B . GVFl/r 300-150BR 2525M-351B 2020K-352B GVFl/r 400 490-020B GVFl/r 400-200BR 2525M-352B It is possible to widen the groove to infinity when machining the initial groove within MIN.-MAX. and then widening to outer diameter. When machining the initial groove on the face at MIN. 35 .............. When machining the initial groove on the face at MAX. 50. If the initial groove is made smaller than this, the toolholder interferes with the workpiece. Boss Dia. depends on insert width. Installing GVFL250-020B Installing GVFL490-020B If the initial groove is made larger than this, the toolholder interferes with the workpiece. Boss Dia. depends on insert width. When widening the groove width to inner diameter. Face Grooving Dia. D MIN. ( 25 Boss Dia.) is the limitation regardless of insert width, even widening the groove width to the center from the initial groove at D MIN. ( 35) or D MAX. ( 50). The toolholder interferes with the workpiece when closer to the center. Installing GVFL250-020B Installing GVFL490-020B Std. Item G94
