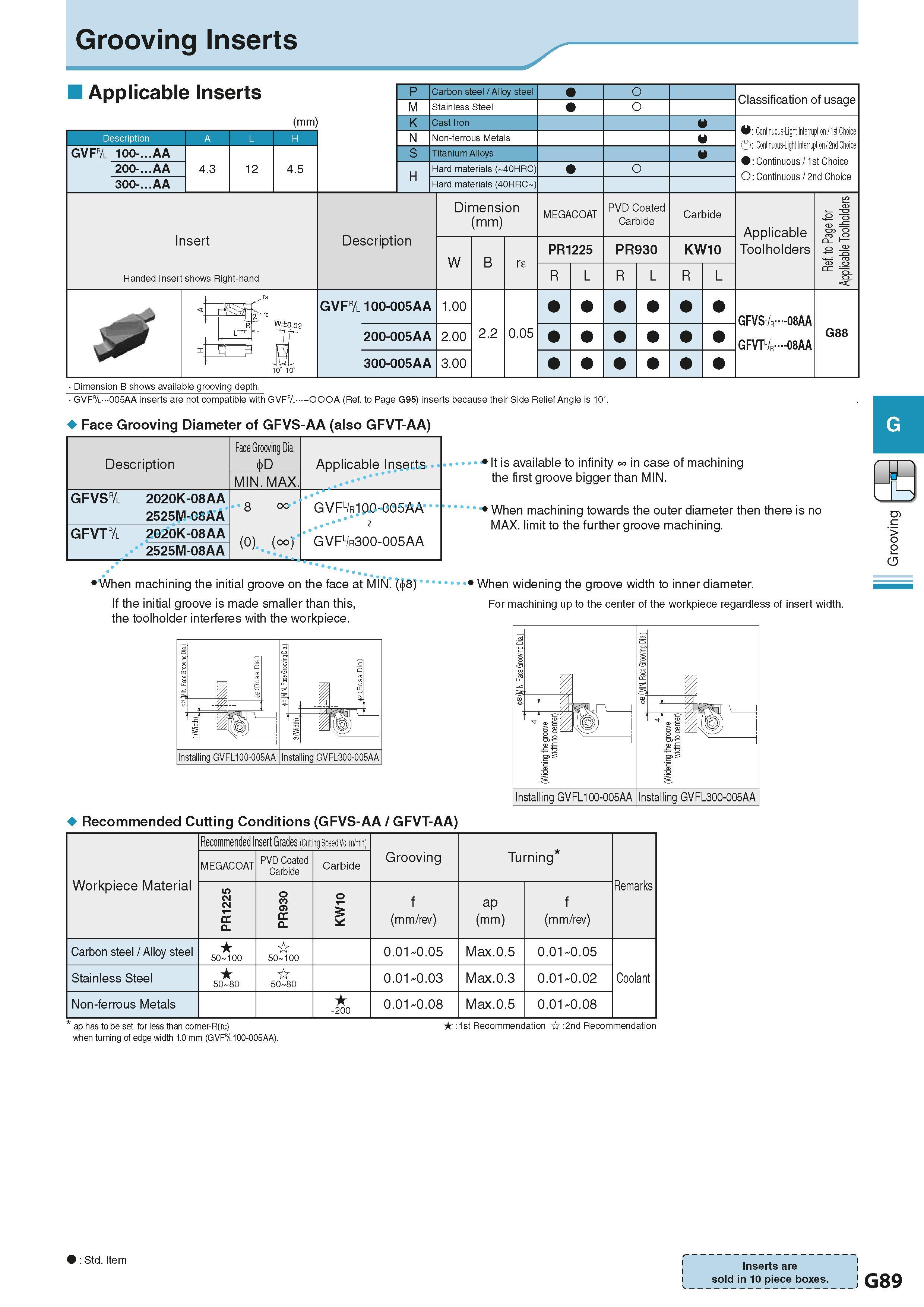

Grooving Inserts Applicable Inserts Description GVF& 100-...AA 200-...AA 300-...AA 4.3 12 (mm) 4.5 M K N S Carbon steel / Alloy steel Stainless Steel Non-ferrous Metals Titanium Alloys Hard materials ( 40HRC) Hard materials (40HRC ) o Classification of usage Continuous-Light Interruption / 1st Choice Continuous-Light Interruption / 2nd Choice Continuous / 1st Choice Continuous / 2nd Choice Insert Handed Insert shows Right-hand Description Dimension (mm) Размеры инструмента указаны в мм MEGACOAT PVD Coated Carbide Carbide W PR1225 PR930 KW10 Applicable Toolholders re R L R L n1 GVF& 100-005AA 1.00 W±0.02 200-005AA 2.00 2.2 0.05 GFVSl/r.-08AA GFVTl/r.-08AA G88 300-005AA 3.00 Dimension B shows available grooving depth. GVF& -005AA inserts are not compatible with GVF& OOOA (Ref. to Page G95) inserts because their Side Relief Angle is 10°. Face Grooving Diameter of GFVS-AA (also GFVT-AA) Face Grooving Dia. Description D Applicable Inserts MIN. MAX. GFVS& 2020K-08AA 2525M-08AA GVFl/r300-005AA GFVT& 2020K-08AA (0) 2525M-08AA It is available to infinity in case of machining the first groove bigger than MIN. When machining towards the outer diameter then there is no MAX. limit to the further groove machining. When machining the initial groove on the face at MIN. 8) If the initial groove is made smaller than this, the toolholder interferes with the workpiece. When widening the groove width to inner diameter. For machining up to the center of the workpiece regardless of insert width. > <5 P A L H H B R L B L 10 10 Recommended Cutting Conditions (GFVS-AA / GFVT-AA) Workpiece Material Recommended Insert Grades (Cuiing Speed Vc: m/min) Grooving Turning Remarks MEGACOAT PVD Coated Carbide Carbide PR1225 PR930 KW10 f (mm/rev) ap (mm) f (mm/rev) Carbon steel / Alloy steel 50-100 50-100 0.01-0.05 Max.0.5 0.01-0.05 Coolant Stainless Steel 50-80 50-80 0.01-0.03 Max.0.3 0.01-0.02 Non-ferrous Metals -200 0.01-0.08 Max.0.5 0.01-0.08 ap has to be set for less than corner-R(rs) when turning of edge width 1.0 mm (GVF&100-005AA). :1st Recommendation :2nd Recommendation Std Item f inMrtsVre' sold in 10 piece boxes. G89
