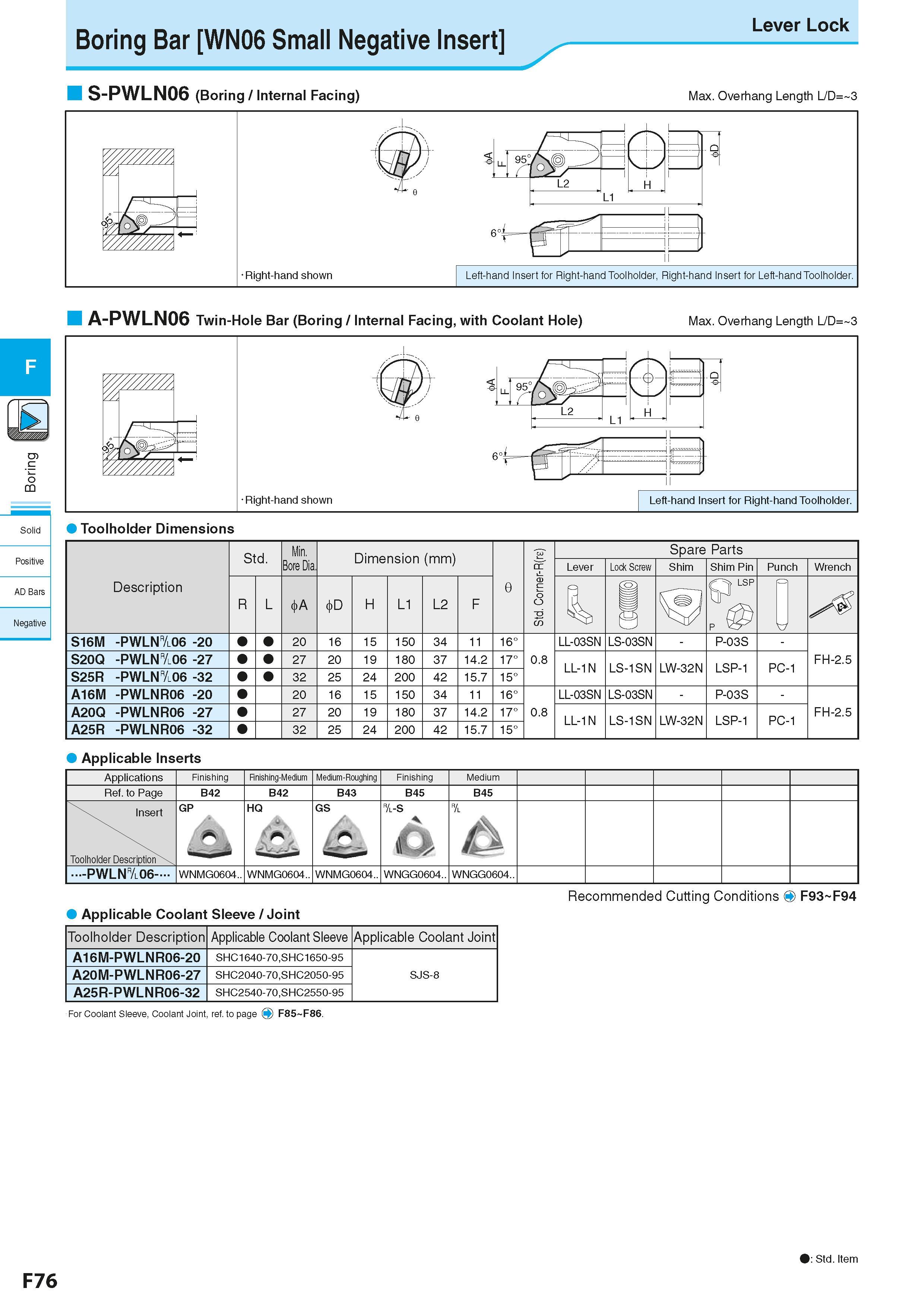

Boring Bar WN06 Small Negative Insert Lever Lock S-PWLN06 (Boring / Internal Facing) Max. Overhang Length L/D= 3 c o Solid Positive AD Bars Negative A-PWLN06 Twin-Hole Bar (Boring / Internal Facing, with Coolant Hole) Max. Overhang Length L/D= 3 Description Обозначение инструмента для заказа Std. Min. Bore Dia Dimension (mm) Размеры инструмента указаны в мм 0 Std. Corner-R(re) Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench R L < A < D H L1 L2 F 1 S16M -PWLN&06 -20 20 16 15 150 34 11 16° 0.8 LL-03SN LS-03SN - P-03S - FH-2.5 S20Q -PWLN&06 -27 27 20 19 180 37 14.2 17° LL-1N LS-1SN LW-32N LSP-1 PC-1 S25R -PWLN&06 -32 32 25 24 200 42 15.7 15° A16M -PWLNR06 -20 20 16 15 150 34 11 16° 0.8 LL-03SN LS-03SN - P-03S - FH-2.5 A20Q -PWLNR06 -27 27 20 19 180 37 14.2 17° LL-1N LS-1SN LW-32N LSP-1 PC-1 A25R -PWLNR06 -32 32 25 24 200 42 15.7 15° Applicable Inserts Applications Finishing Finishing-Medium Medium-Roughing Finishing Medium Ref. to Page B42 B42 B43 B45 B45 Insert Toolholder Description GP HQ w GS & &-S 6 & PWLN&06 - WNMG0604.. WNMG0604.. WNMG0604.. WNGG0604.. WNGG0604.. Recommended Cutting Conditions O F93 F94 Applicable Coolant Sleeve / Joint Toolholder Description Applicable Coolant Sleeve Applicable Coolant Joint A16M-PWLNR06-20 SHC1640-70,SHC1650-95 SJS-8 A20M-PWLNR06-27 SHC2040-70,SHC2050-95 A25R-PWLNR06-32 SHC2540-70,SHC2550-95 For Coolant Sleeve, Coolant Joint, ref. to page O F85 F86. F76 Std. Item
