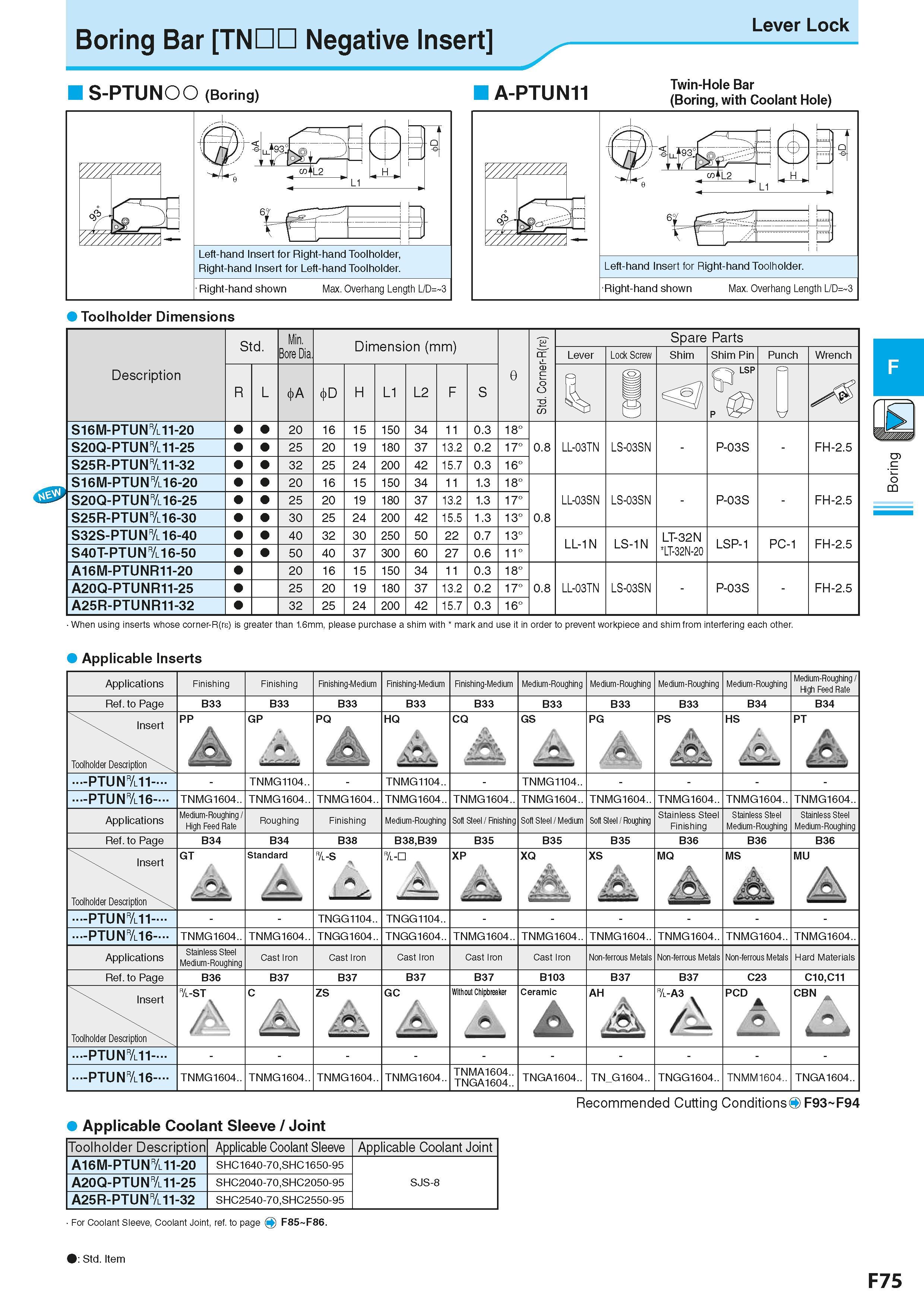

Boring Bar TNDD Negative Insert Lever Lock S-PTUNOO (Boring) A-PTUN11 Twin-Hole Bar (Boring, with Coolant Hole) Toolholder Dimensions Std. Min. Dimension (mm) Размеры инструмента указаны в мм of £Z 00 Spare Parts Bore Dia Lever Lock Screw Shim Shim Pin Punch Wrench Description R L < A < D H L1 L2 F S 0 1 PT p w S16M-PTUN&11-20 20 16 15 150 34 11 0.3 18° S20Q-PTUN&11-25 25 20 19 180 37 13.2 0.2 17° 0.8 LL-03TN LS-03SN - P-03S - FH-2.5 S25R-PTUN&11-32 32 25 24 200 42 15.7 0.3 16° S16M-PTUN&16-20 20 16 15 150 34 11 1.3 18° S20Q-PTUN & 16-25 25 20 19 180 37 13.2 1.3 17° LL-03SN LS-03SN - P-03S - FH-2.5 S25R-PTUN&16-30 30 25 24 200 42 15.5 1.3 13° 0.8 S32S-PTUN& 16-40 40 32 30 250 50 22 0.7 13° LL-1N LS-1N LT-32N LSP-1 PC-1 FH-2.5 S40T-PTUN&16-50 50 40 37 300 60 27 0.6 11° LT-32N-20 A16M-PTUNR11-20 20 16 15 150 34 11 0.3 18° A20Q-PTUNR11-25 25 20 19 180 37 13.2 0.2 17° 0.8 LL-03TN LS-03SN - P-03S - FH-2.5 A25R-PTUNR11-32 32 25 24 200 42 15.7 0.3 16° When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. Applicable Inserts Applications Ref. to Page Insert Toolholder Description .-PTUN&11-... -PTUN&16-.. Applications Ref. to Page Insert Toolholder Description ...-PTUN&11-.. .-PTUN&16-.. Applications Ref. to Page Insert Toolholder Description ...-PTUN&11-. ...-PTUN&16-. Finishing B33 PP TNMG1604. Medium-Roughing / High Feed Rate B34 GT TNMG1604. Stainless Steel Medium-Roughing B36 &-ST TNMG1604. Finishing B33 GP TNMG1104. TNMG1604. Roughing B34 TNMG1604. B37 TNMG1604. Finishing-Medium B33 PQ TNMG1604. Finishing B38 h/l-S TNGG1104. TNGG1604. B37 ZS TNMG1604. Finishing-Medium B33 HQ TNMG1104. TNMG1604. Medium-Roughing B38,B39 h/l-D TNGG1104. TNGG1604. B37 GC TNMG1604. Finishing-Medium B33 CQ TNMG1604.. Soft Steel / Finishing B35 XP TNMG1604. B37 Without Chipbreaker TNMA1604. TNGA1604. Medium-Roughing B33 GS TNMG1104. TNMG1604. Soft Steel / Medium B35 XQ TNMG1604. B103 Medium-Roughing B33 PG TNMG1604.. Soft Steel / Roughing B35 XS TNMG1604.. Non-ferrous Metals B37 AH Medium-Roughing B33 PS TNMG1604. Stainless Steel Finishing B36 MQ TNMG1604. Non-ferrous Metals B37 r/l-A3 TNGA1604.. TN G1604.. TNGG1604.. TNMM1604.. TNGA1604 Medium-Roughing B34 HS TNMG1604.. Stainless Steel Medium-Roughing B36 MS TNMG1604.. Non-ferrous Metals C23 PCD Medium-Roughing / High Feed Rate B34 PT TNMG1604. Stainless Steel Medium-Roughing B36 MU TNMG1604. Hard Materials C10,C11 CBN A Applicable Coolant Sleeve / Joint Toolholder Description Applicable Coolant Sleeve Applicable Coolant Joint A16M-PTUN&11-20 SHC1640-70,SHC1650-95 SJS-8 A20Q-PTUN&11-25 SHC2040-70,SHC2050-95 A25R-PTUN&11-32 SHC2540-70,SHC2550-95 For Coolant Sleeve, Coolant Joint, ref. to page Q F85 F86. Std. Item Recommended Cutting ConditionsO F93 F94 C F75 Boring
