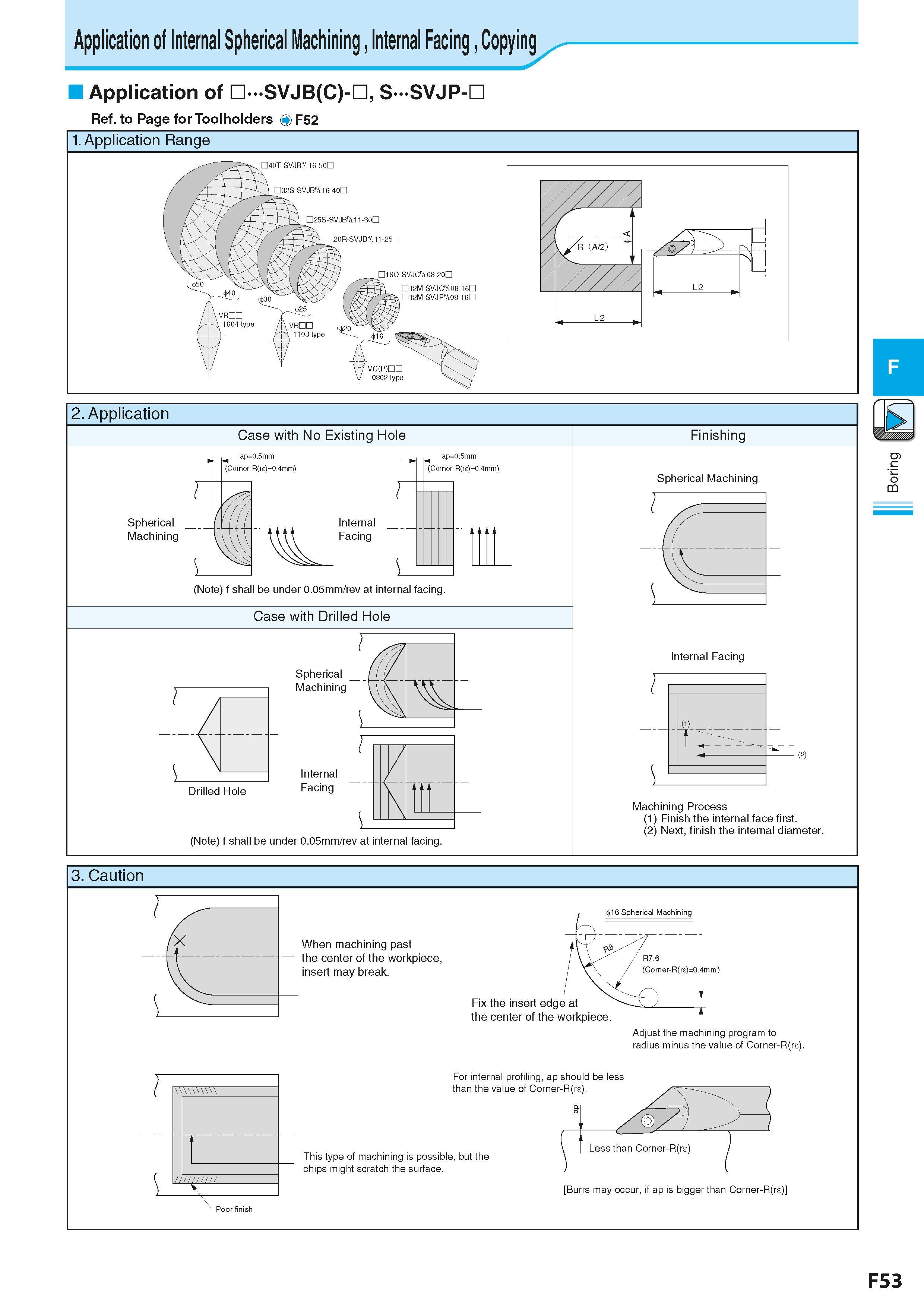

Application of Internal Spherical Machining Internal Facing Copying Application of .SVJB(C)-D, S.SVJP-D Ref. to Page for Toolholders OF52 2. Application Case with No Existing Hole Spherical Machining . ap=0.5mm (Comer-R(re)=0.4mm) Finishing Spherical Machining (Note) f shall be under 0.05mm/rev at internal facing. Case with Drilled Hole Spherical Machining Internal Facing Internal Facing (Note) f shall be under 0.05mm/rev at internal facing. Machining Process (1) Finish the internal face first. (2) Next, finish the internal diameter. 3. Caution 16 Spherical Machining R7.6 (Corner-R(re)=0.4mm) Fix the insert edge at the center of the workpiece Adjust the machining program to radius minus the value of Corner-R(rs). // For internal profiling, ap should be less than the value of Corner-R(rs). This type of machining is possible, but the chips might scratch the surface. Less than Corner-R(re) Burrs may occur, if ap is bigger than Corner-R(re) (2) Poor finish F53 Boring
