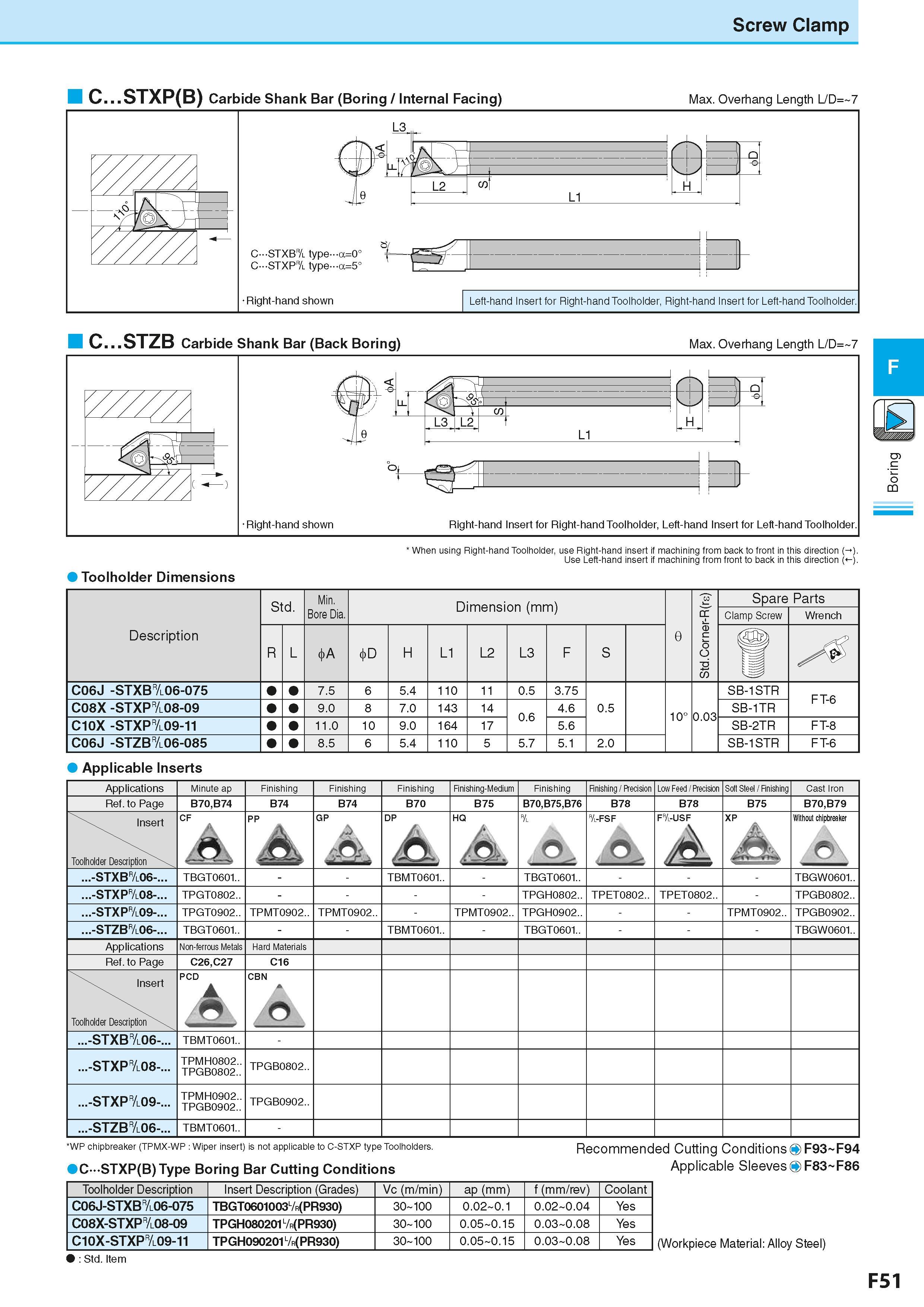

Screw Clamp C...STXP(B) Carbide Shank Bar (Boring / Internal Facing) Max. Overhang Length L/D= 7 When using Right-hand Toolholder, use Right-hand insert if machining from back to front in this direction ("). Use Left-hand insert if machining from front to back in this direction ( ). Toolholder Dimensions Std. Min. Dimension (mm) Размеры инструмента указаны в мм Std.Corner-R(rs) Spare Parts Bore Dia. Clamp Screw Wrench Description R L < A < D H L1 L2 L3 F S 0 u C06J -STXB&06-075 7.5 6 5.4 110 11 0.5 3.75 SB-1STR FT-6 C08X -STXP&08-09 9.0 8 7.0 143 14 0.6 4.6 0.5 10° 0.03 SB-1TR C10X -STXP&09-11 11.0 10 9.0 164 17 5.6 SB-2TR FT-8 C06J -STZB&06-085 8.5 6 5.4 110 5 5.7 5.1 2.0 SB-1STR FT-6 Applicable Inserts Applications Minute ap Finishing Finishing Finishing Finishing-Medium Finishing Rnishing / Precision Low Feed / Precision Soft Steel / Finishing Cast Iron Ref. to Page B70,B74 B74 B74 B70 B75 B70,B75,B76 B78 B78 B75 B70,B79 Insert Toolholder Description CF A PP GP DP HQ /Z%. r/l r/l-FSF Fr/l-USF A XP Without chipbreaker Q\ ...-STXB&06-... TBGT0601.. TBMT0601.. - TBGT0601.. - TBGW0601.. ...-STXP&08-... TPGT0802.. TPGH0802.. TPET0802.. TPET0802.. - TPGB0802.. ...-STXP&09-... TPGT0902.. TPMT0902.. TPMT0902.. - TPMT0902.. TPGH0902.. TPMT0902.. TPGB0902.. ...-STZB&06-... TBGT0601.. - TBMT0601.. - TBGT0601.. - TBGW0601.. Applications Non-ferrous Metals Hard Materials Ref. to Page C26,C27 C16 Insert Toolholder Description PCD A & CBN ...-STXB&06-... TBMT0601.. - ...-STXP&08-... TPMH0802.. TPGB0802.. TPGB0802.. ...-STXP&09-... TPMH0902.. TPGB0902.. TPGB0902.. ...-STZB&06-... TBMT0601.. - WP chipbreaker (TPMX-WP Wiper insert) is not applicable to C-STXP type Toolholders. Recommended Cutting Conditions O F93 F94 C-STXP(B) Type Boring Bar Cutting Conditions Applicable S eeves 4 F83 F86 Toolholder Description Insert Description (Grades) Vc (m/min) ap (mm) f (mm/rev) Coolant C06J-STXB &06-075 TBGT0601003l/r(PR930) 30 100 0.02 0.1 0.02 0.04 Yes C08X-STXP &08-09 TPGH080201 l/r(PR930) 30 100 0.05 0.15 0.03 0.08 Yes C10X -STXP&09-11 TPGH090201 l/r(PR930) 30 100 0.05 0.15 0.03 0.08 Yes Std. Item (Workpiece Material: Alloy Steel) F51 Boring
