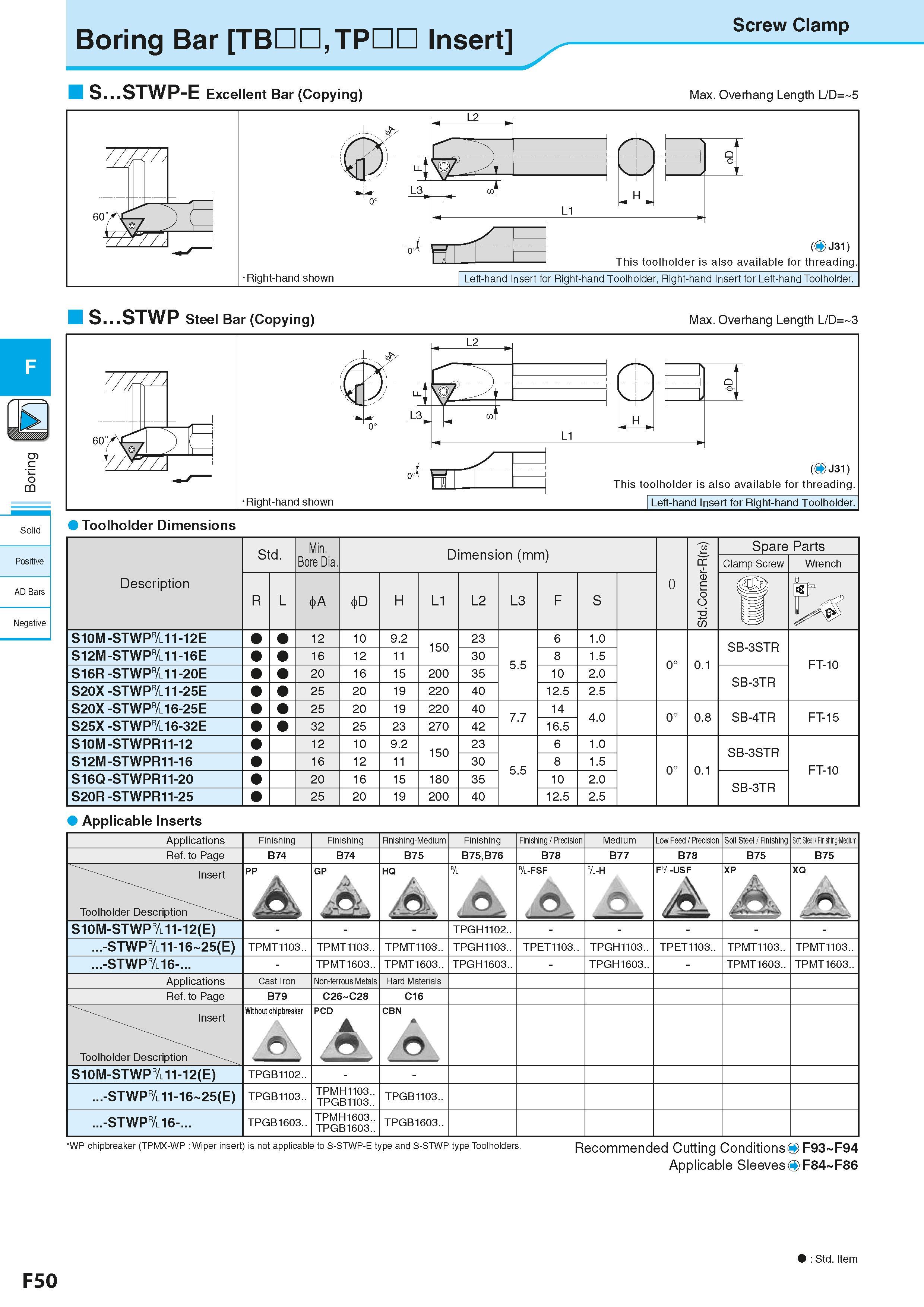

Boring Bar TBDD, TP Insert Screw Clamp S...STWP-E Excellent Bar (Copying) Max. Overhang Length L/D= 5 S...STWP Steel Bar (Copying) Max. Overhang Length L/D= 3 o co Std. Min. Dimension (mm) Размеры инструмента указаны в мм Std.Corner-R(rs) Spare Parts Bore Dia. Clamp Screw Wrench Description R L < A < D H L1 L2 L3 F S 0 Ilf S10M -STWP&11-12E 12 10 9.2 150 23 6 1.0 SB-3STR S12M -STWP&11-16E 16 12 11 30 5.5 8 1.5 0° 0.1 FT-10 S16R -STWP&11-20E 20 16 15 200 35 10 2.0 SB-3TR S20X -STWP&11-25E 25 20 19 220 40 12.5 2.5 S20X -STWP&16-25E 25 20 19 220 40 7.7 14 4.0 0° 0.8 SB-4TR FT-15 S25X -STWP&16-32E 32 25 23 270 42 16.5 S10M -STWPR11-12 12 10 9.2 150 23 6 1.0 SB-3STR S12M -STWPR11-16 16 12 11 30 5.5 8 1.5 0° 0.1 FT-10 S16Q -STWPR11-20 20 16 15 180 35 10 2.0 SB-3TR S20R -STWPR11-25 25 20 19 200 40 12.5 2.5 Negative Solid AD Bars Applicable Inserts Applications Finishing Finishing Rnishing-Medium Finishing Finishing / Precision Medium Low Feed / Precision Soft Steel / Finishing Soft Steel / Finishing-Medium Ref. to Page B74 B74 B75 B75,B76 B78 B77 B78 B75 B75 Insert PP GP HQ r/l r/l-FSF r/l-H Fr/l-USF XP XQ Toolholder Description A M. & ,ok A A S10M-STWP&11-12(E) - TPGH1102.. ...-STWP&11-16 25(E) TPMT1103.. TPMT1103.. TPMT1103.. TPGH1103.. TPET1103.. TPGH1103.. TPET1103.. TPMT1103.. TPMT1103.. ...-STWP&16-... TPMT1603.. TPMT1603.. TPGH1603.. TPGH1603.. TPMT1603.. TPMT1603.. Applications Cast Iron Non-ferrous Metals Hard Materials Ref. to Page B79 C26 C28 C16 Insert Toolholder Description Without chipbreaker o PCD A CBN o S10M-STWP&11-12(E) TPGB1102.. ...-STWP&11-16 25(E) TPGB1103.. TPMH1103.. TPGB1103.. TPGB1103.. ...-STWP&16-... TPGB1603.. TPMH1603.. TPGB1603.. TPGB1603.. WP chipbreaker (TPMX-WP Wiper insert) is not applicable to S-STWP-E type and S-STWP type Toolholders. Recommended Cutting ConditionsO F93 F94 Applicable Sleeves O F84 F86 F50 Std. Item
