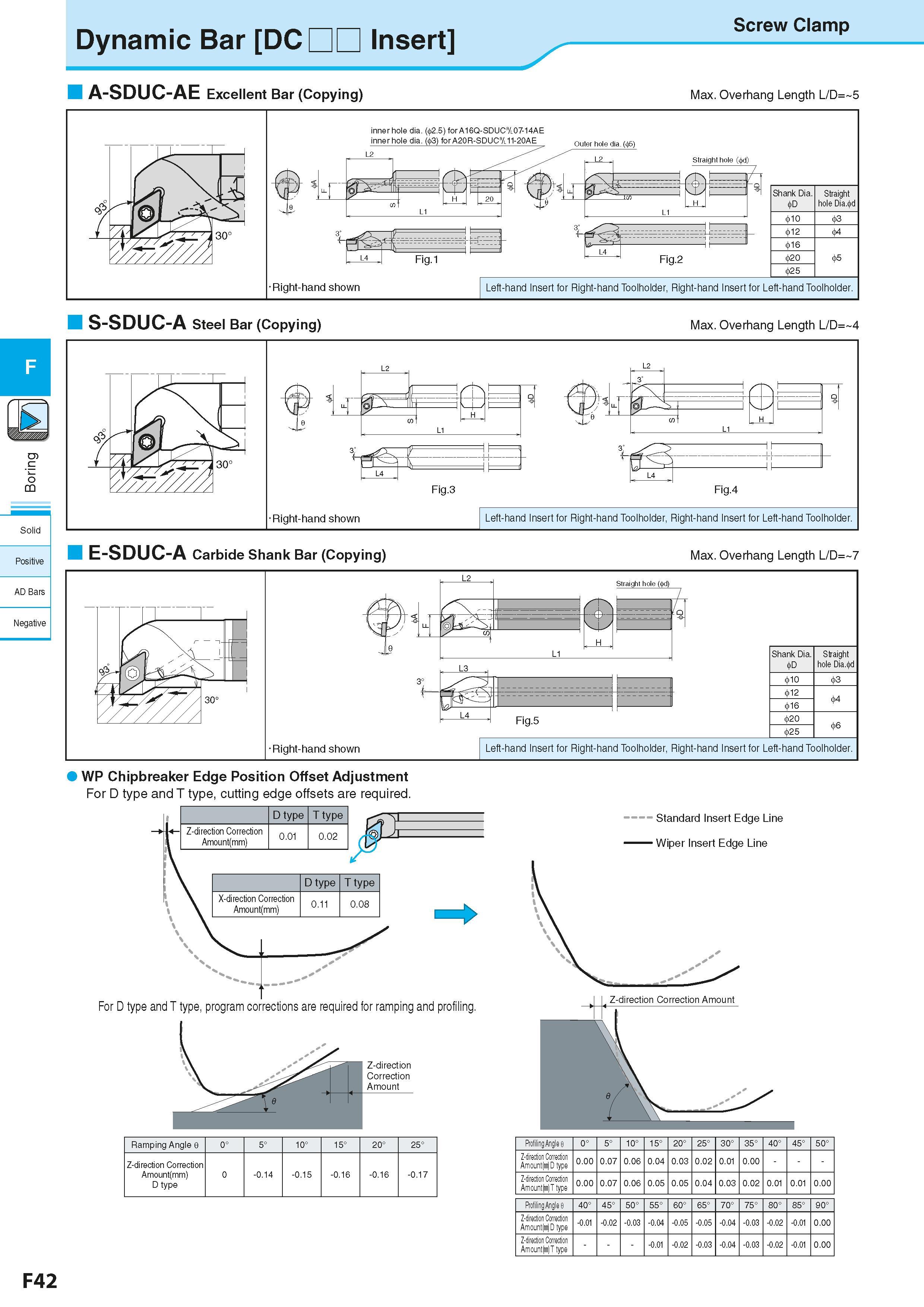

c <5 CQ Solid Positive AD Bars Negative Dynamic Bar DC Insert A-SDUC-AE Excellent Bar (Copying) Screw Clamp Max. Overhang Length L/D= 5 inner hole dia. ( 2.5) for A16Q-SDUC&07-14AE inner hole dia. ( 3) for A20R-SDUC&11-20AE Outer hole dia. ( 5) L2 Fig.1 Fig.2 Shank Dia. D Straight hole Dia. d 10 3 12 4 16 5 20 25 Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. S-SDUC-A Steel Bar (Copying) Max. Overhang Length L/D= 4 Fig.3 Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. E-SDUC-A Carbide Shank Bar (Copying) Max. Overhang Length L/D= 7 Shank Dia. D Straight hole Dia. d 10 3 12 4 16 20 6 25 Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. WP Chipbreaker Edge Position Offset Adjustment For D type and T type, cutting edge offsets are required. D type T type Z-direction Correction Amount(mm) 0.01 0.02 Standard Insert Edge Line Wiper Insert Edge Line D type T type X-direction Correction Amount(mm) 0.11 0.08 For D type and T type, program corrections are required for ramping and profiling. Profiling Angle e 0° 5° 10° 15° 20° 25° 30° 35° 40° 45° 50° Z-direction Correction Amount(mm) D type 0.00 0.07 0.06 0.04 0.03 0.02 0.01 0.00 Z-direction Correction Amount(mm)T type 0.00 0.07 0.06 0.05 0.05 0.04 0.03 0.02 0.01 0.01 0.00 Profiling Angle e 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° Z-direction Correction Amount(mm) D type -0.01 -0.02 -0.03 -0.04 -0.05 -0.05 -0.04 -0.03 -0.02 -0.01 0.00 Z-direction Correction Amount(mm)T type -0.01 -0.02 -0.03 -0.04 -0.03 -0.02 -0.01 0.00 L1 F42
