303 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.F41

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. F41 0303 Lab2u

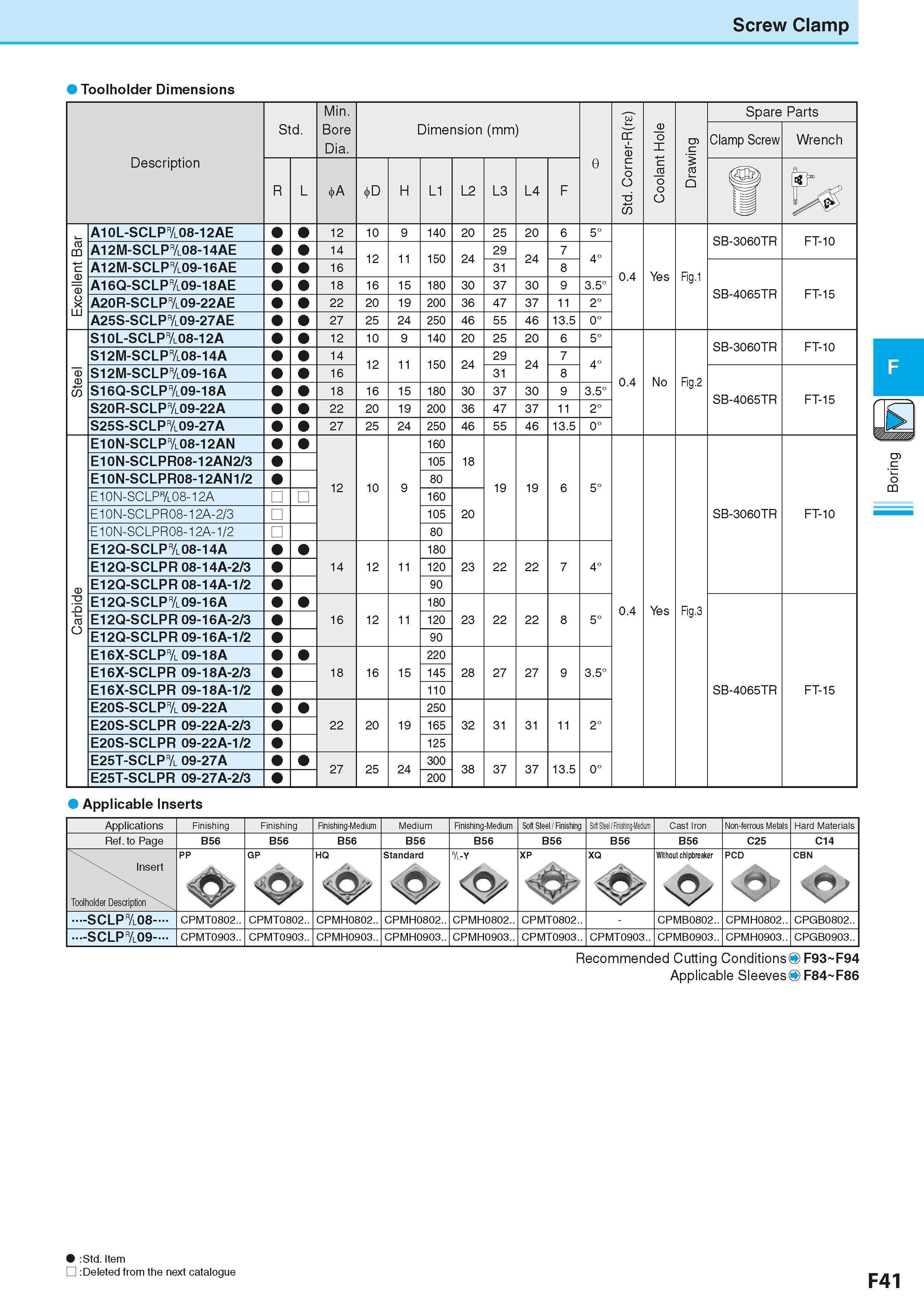

Screw Clamp Toolholder Dimensions Min. Std. Corner-R(re) Spare Parts Description Обозначение инструмента для заказа Std. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм Coolant Hole Drawing Clamp Screw Wrench R L A D H L1 L2 L3 L4 F e fjf Excellent Bar A10L-SCLP&08-12AE 12 10 9 140 20 25 20 6 5° SB-3060TR FT-10 A12M-SCLP&08-14AE 14 12 11 150 24 29 24 7 4° A12M-SCLP&09-16AE 16 31 8 0.4 Yes Fig.1 A16Q-SCLP&09-18AE 18 16 15 180 30 37 30 9 3.5° SB-4065TR FT-15 A20R-SCLP&09-22AE 22 20 19 200 36 47 37 11 2° A25S-SCLP&09-27AE 27 25 24 250 46 55 46 13.5 0° S10L-SCLP&08-12A 12 10 9 140 20 25 20 6 5° SB-3060TR FT-10 S12M-SCLP&08-14A 14 12 11 150 24 29 24 7 4° Steel S12M-SCLP&09-16A 16 31 8 0.4 No F S16Q-SCLP&09-18A 18 16 15 180 30 37 30 9 3.5° SB-4065TR FT-15 S20R-SCLP&09-22A 22 20 19 200 36 47 37 11 2° S25S-SCLP&09-27A 27 25 24 250 46 55 46 13.5 0° E10N-SCLP&08-12AN 160 E10N-SCLPR08-12AN2/3 105 18 E10N-SCLPR08-12AN1/2 12 10 9 80 19 19 6 5° E10N-SCLP&08-12A 160 E10N-SCLPR08-12A-2/3 105 20 SB-3060TR FT-10 E10N-SCLPR08-12A-1/2 80 E12Q-SCLP& 08-14A 180 E12Q-SCLPR 08-14A-2/3 14 12 11 120 23 22 22 7 4° Carbide E12Q-SCLPR 08-14A-1/2 90 E12Q-SCLP& 09-16A 180 0.4 Yes co F E12Q-SCLPR 09-16A-2/3 16 12 11 120 23 22 22 8 5° E12Q-SCLPR 09-16A-1/2 90 E16X-SCLP& 09-18A 220 E16X-SCLPR 09-18A-2/3 18 16 15 145 28 27 27 9 3.5° E16X-SCLPR 09-18A-1/2 110 SB-4065TR FT-15 E20S-SCLP& 09-22A 250 E20S-SCLPR 09-22A-2/3 22 20 19 165 32 31 31 11 2° E20S-SCLPR 09-22A-1/2 125 E25T-SCLP& 09-27A 27 25 24 300 38 37 37 13.5 0° E25T-SCLPR 09-27A-2/3 200 Applicable Inserts Applications Finishing Finishing Finishing-Medium Medium Finishing-Medium Soft Steel / Finishing Soft Steel / Finishing-Medium Cast Iron Non-ferrous Metals Hard Materials Ref. to Page B56 B56 B56 B56 B56 B56 B56 B56 C25 C14 Insert Toolholder Description PP GP HQ Standard r/l-Y XP XQ Without chipbreaker PCD CBN ...-SCLP&08-.. CPMT0802.. CPMT0802.. CPMH0802.. CPMH0802.. CPMH0802.. CPMT0802.. - CPMB0802.. CPMH0802.. CPGB0802.. ...-SCLP&09-.. CPMT0903.. CPMT0903.. CPMH0903.. CPMH0903.. CPMH0903.. CPMT0903.. CPMT0903.. CPMB0903.. CPMH0903.. CPGB0903.. Recommended Cutting ConditionsO F93 F94 Applicable SleevesO F84 F86 :Std. Item :Deleted from the next catalogue F41 Boring
