307 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.F45

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. F45 0307 Lab2u

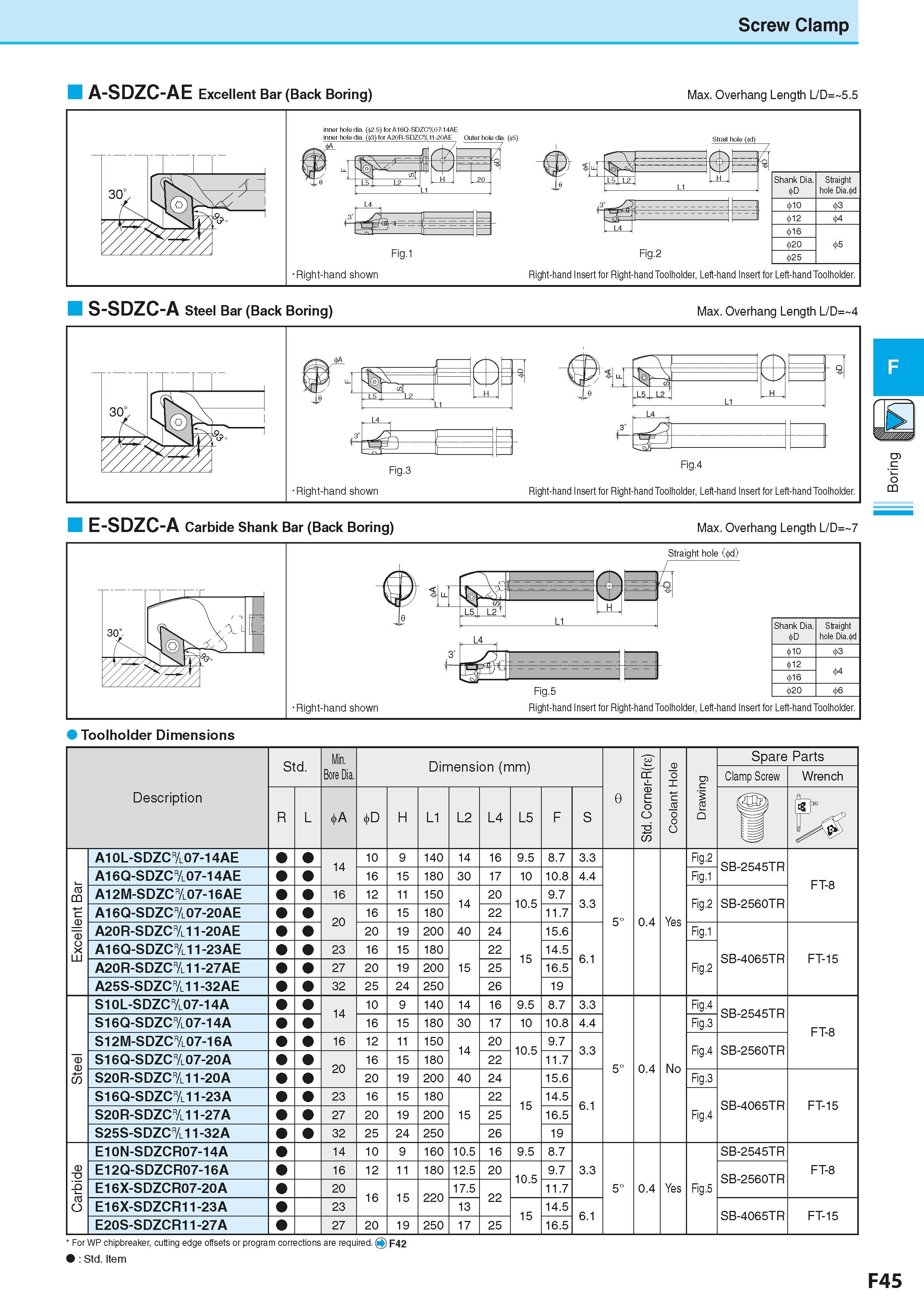

Screw Clamp A-SDZC-AE Excellent Bar (Back Boring) Max. Overhang Length L/D= 5.5 S-SDZC-A Steel Bar (Back Boring) Max. Overhang Length L/D= 4 Right-hand shown Fig.4 Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. E-SDZC-A Carbide Shank Bar (Back Boring) Max. Overhang Length L/D= 7 H L5 L2 L1 L4 3 Toolholder Dimensions Description Обозначение инструмента для заказа Std. Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм 0 Std. Corner-R(re) Coolant Hole Drawing Spare Parts Clamp Screw Wrench R L D H L1 L2 L4 L5 F S fjif Excellent Bar A10L-SDZC&07-14AE 14 10 9 140 14 16 9.5 8.7 3.3 5° 0.4 Yes Fig.2 SB-2545TR FT-8 A16Q-SDZC&07-14AE 16 15 180 30 17 10 10.8 4.4 Fig.1 A12M-SDZC&07-16AE 16 12 11 150 14 20 10.5 9.7 3.3 Fig.2 SB-2560TR A16Q-SDZC&07-20AE 20 16 15 180 22 11.7 A20R-SDZC&11-20AE 20 19 200 40 24 15 15.6 6.1 Fig.1 SB-4065TR FT-15 A16Q-SDZC&11-23AE 23 16 15 180 15 22 14.5 Fig.2 A20R-SDZC&11-27AE 27 20 19 200 25 16.5 A25S-SDZC&11-32AE 32 25 24 250 26 19 Steel S10L-SDZC&07-14A 14 10 9 140 14 16 9.5 8.7 3.3 5° 0.4 No Fig.4 SB-2545TR FT-8 S16Q-SDZC&07-14A 16 15 180 30 17 10 10.8 4.4 Fig.3 S12M-SDZC&07-16A 16 12 11 150 14 20 10.5 9.7 3.3 Fig.4 SB-2560TR S16Q-SDZC&07-20A 20 16 15 180 22 11.7 S20R-SDZC&11-20A 20 19 200 40 24 15 15.6 6.1 Fig.3 SB-4065TR FT-15 S16Q-SDZC&11-23A 23 16 15 180 15 22 14.5 Fig.4 S20R-SDZC&11-27A 27 20 19 200 25 16.5 S25S-SDZC&11-32A 32 25 24 250 26 19 Carbide E10N-SDZCR07-14A 14 10 9 160 10.5 16 9.5 8.7 3.3 5° 0.4 Yes Fig.5 SB-2545TR FT-8 E12Q-SDZCR07-16A 16 12 11 180 12.5 20 10.5 9.7 SB-2560TR E16X-SDZCR07-20A 20 16 15 220 17.5 22 11.7 E16X-SDZCR11-23A 23 13 15 14.5 6.1 SB-4065TR FT-15 E20S-SDZCR11-27A 27 20 19 250 17 25 16.5 For WP chipbreaker, cutting edge offsets or program corrections are required. 0 F42 N Std. Item F45 Boring
